7G-6MGBIC and 7G-6MGBIC-A Gigabit Ethernet Interface Modules
The 4G4282‐49 option slot provides access to an installed network expansion module such
as the 7G‐6MGBIC and 7G‐6MGBIC‐A shown in Figure 1‐2. Table
standards the modules comply with and the type of physical connections.

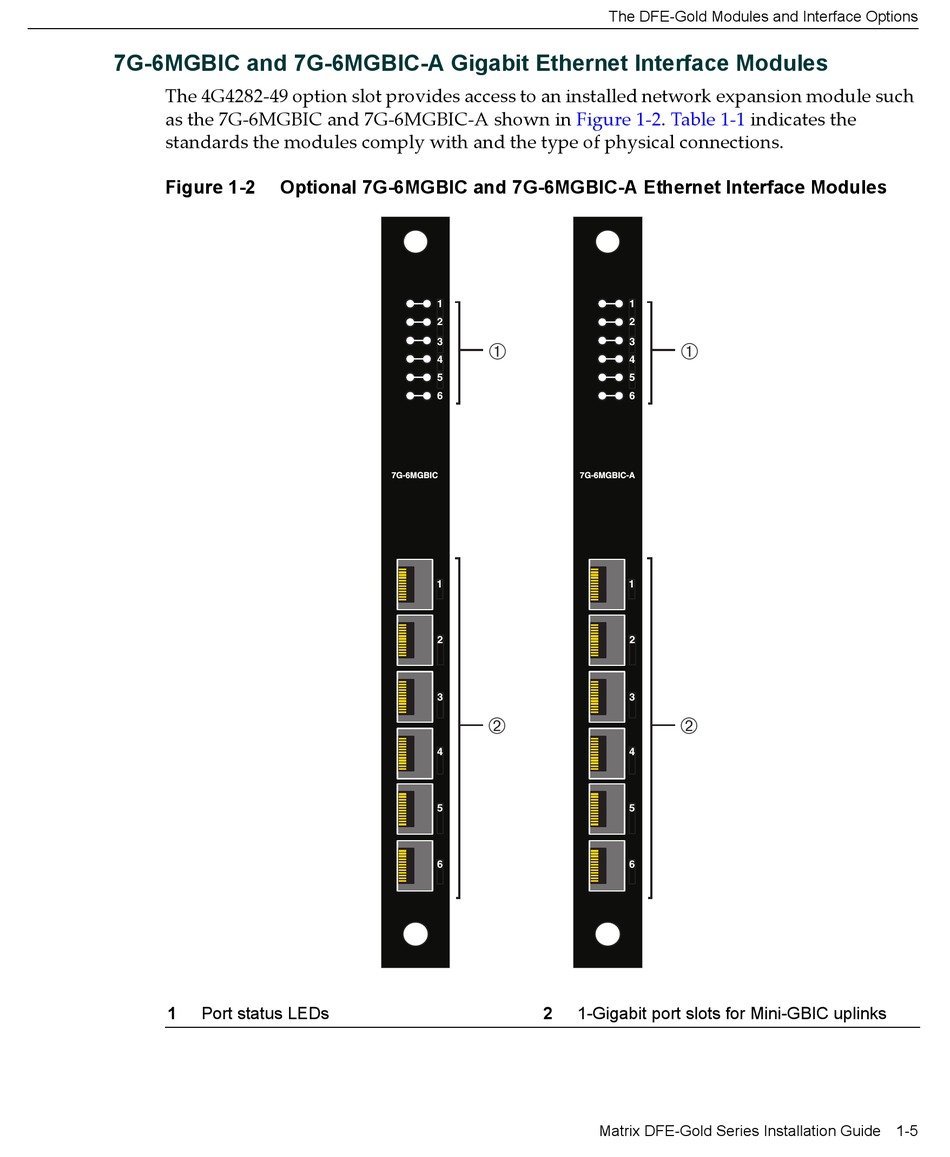

Figure 1-2

Optional 7G-6MGBIC and 7G-6MGBIC-A Ethernet Interface Modules

1 Port status LEDs
The DFE-Gold Modules and Interface Options
À
Á
2 1-Gigabit port slots for Mini-GBIC uplinks
