10.1.1.1/24
Interface Dialer0
Map class
Dialer pool0
Serial0
Serial 3
10.1.1.2/24
Boston
Figure 10-4
on page 10-8 illustrates three Dialer Interfaces with three associated Dialer Pools.
Dialer Pool 6 supports two Serial interfaces of different priority "weighting". Dialer Pools 3 and 9
support three Serial interfaces with one interface – Serial 2/2 – shared between them.
Figure 10-3

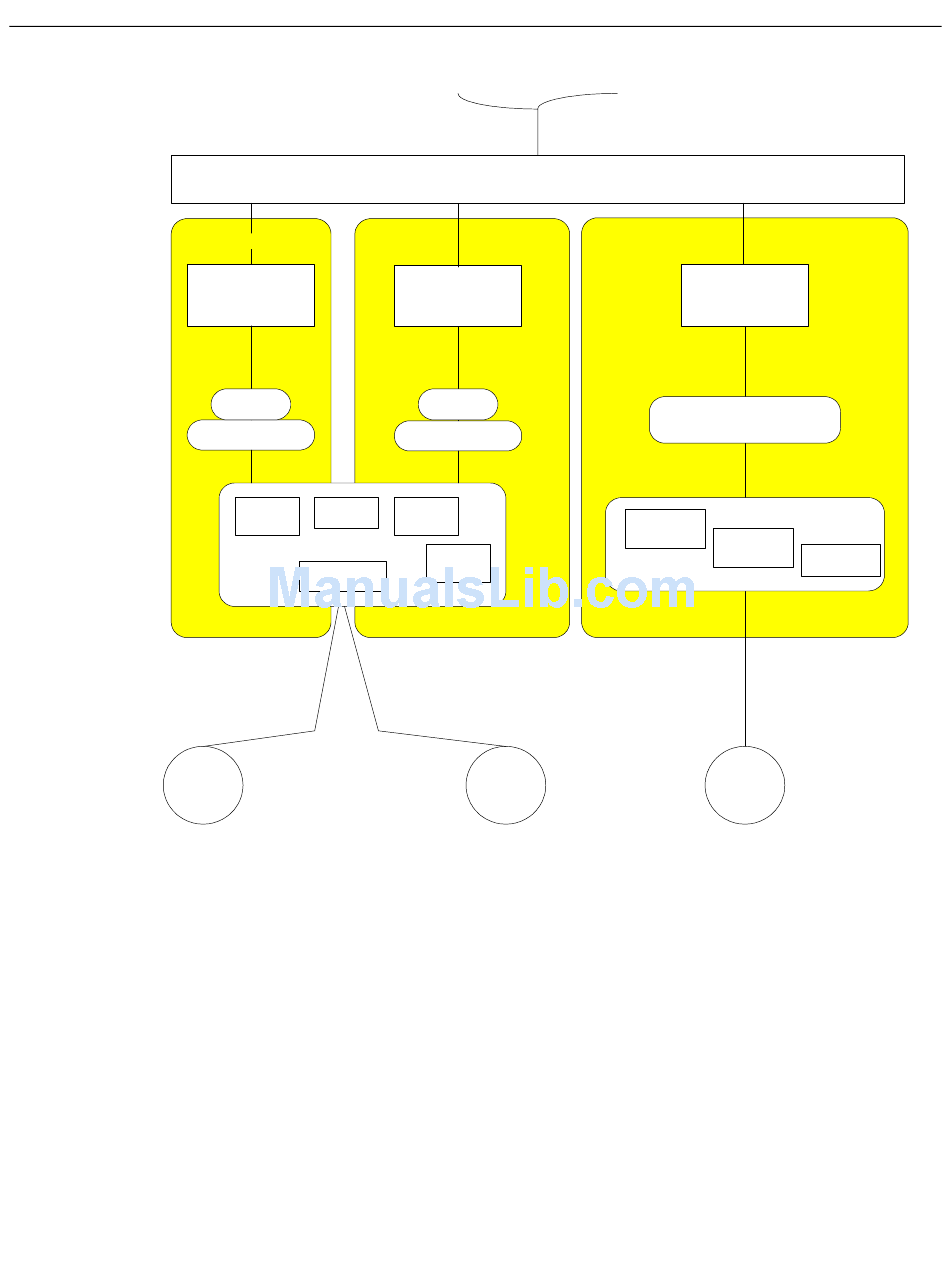

Logical View of Dialer Profiles
20.1.1.1/24
Interface Dialer1
Map class
Dialer pool1
Serial1
Serial2
Serial 4
Hwood
16.1.2.0/24
IP
Interface Dialer2
Dialer pool2
Serial 5
20.1.1.2/24
Implementing Dial Services
5.1.1.1/24
Serial 7
Serial 8
5.1.1.3/24
Austin
