Node B (Called Node) Configuration

The following commands add a dialer pool member with the Central Office switch type to BRI
interface 1/0:
XSR(config)#interface bri 1/0
XSR(config-if<BRI-1/0>)#isdn switch-type basic-net3
XSR(config-if<BRI-1/0>)#dialer pool-member 22
XSR(config-if<BRI-1/0>)#no shutdown
The commands below add a dialer pool and enable MLPPP on Dialer port 1:
XSR(config)#interface dialer 1
XSR(config-if<D1>)#no shutdown
XSR(config-if<D1>)#dialer pool 22
XSR(config-if<D1>)#encapsulation ppp
XSR(config-if<D1>)#ip address 10.10.10.2 255.255.255.0
XSR(config-if<D1>)#ppp multilink

MLPPP Point-to-Point Configurations

The following MLPPP point-to-point topology can be used for Bandwidth on Demand
applications, as illustrated by
on XSR-Toronto's network with those on XSR-Andover's network.

Dial-in Router Example

The following commands add a dialer pool and configure Multilink PPP on XSR-Toronto's Dialer
interface 1:
XSR(config)#interface dialer 1
XSR(config-if<D1>)#encapsulation ppp
XSR(config-if<D1>)#ip address 172.22.85.1
XSR(config-if<D1>)#ppp multilink
Figure 10-14. This example creates three switched lines linking users

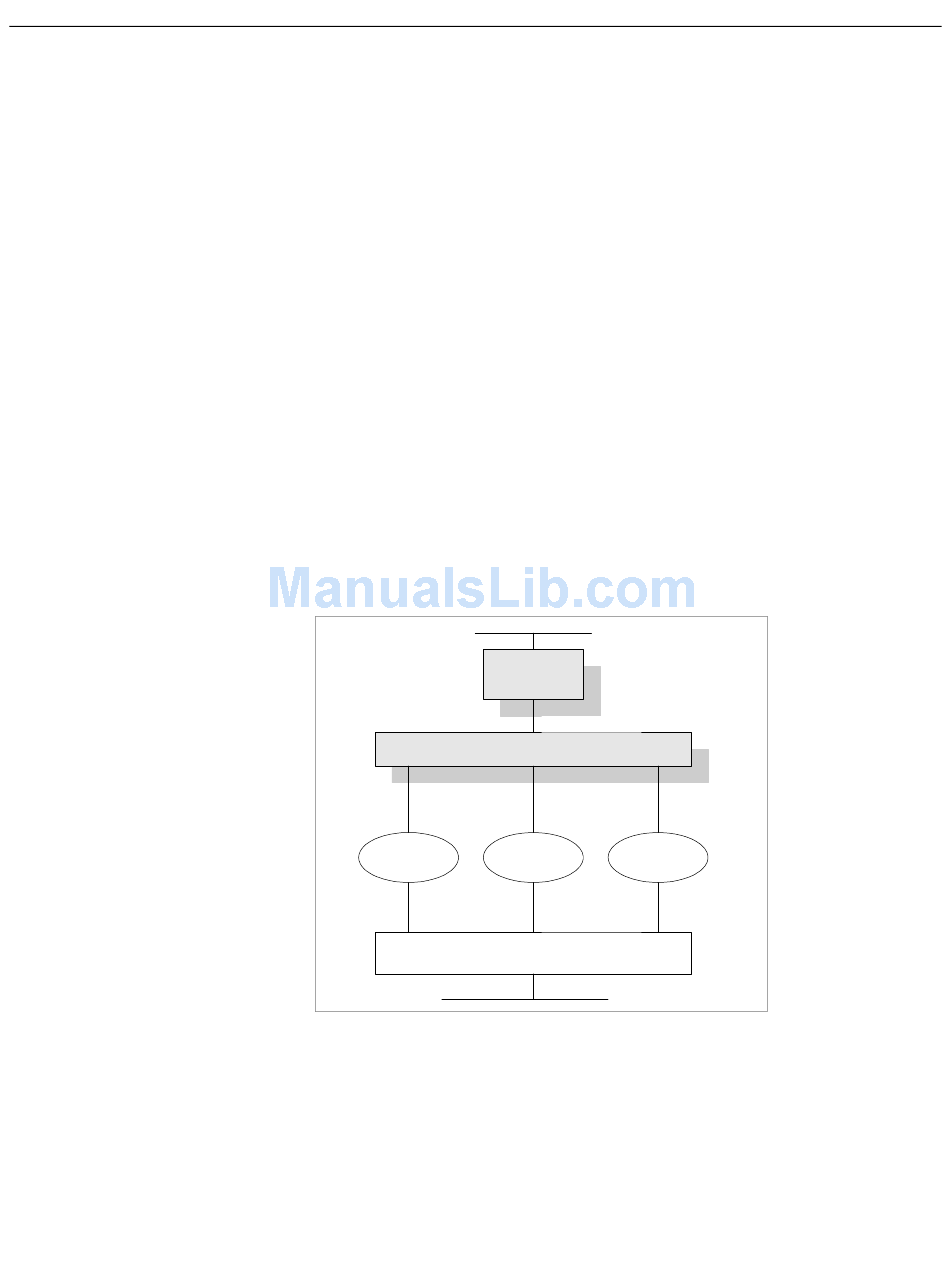

Figure 10-14 MLPPP Point-to-Point Topology
XSR-
Toronto
MLPPP
Switched Switched
line
XSR-Andover
172.22.80.4
172.22.85.1
Switched
line line
172.22.85.2
172.22.95.2
Configuring DoD/BoD
.
