QoS with VLAN

Non-VLAN IP Packet Routed Out a Fast/GigabitEthernet Interface

In this scenario, shown in
FastEthernet 1.1. Since the input IP DSCP was 46 it will match the class matchDscp. The output
VLAN frame will be marked with a priority of 4.

QoS with VLAN Configuration Process

Follow the steps below to configure the XSR for QoS with VLAN routing.
1. Configure a sub-interface.
interface <Interface name> <slot/card/number>
2. Stipulate a VLAN ID on the sub-interface.
vlan <number>
3. Specify an IP address on a sub-interface.
ip address <IP address> <mask>
4. Add a traffic class.
class-map <match-all | match-any> <class-map name>
5. Match the IEEE 802.1 priority in the input VLAN header.
match cos <0 - 7>
12-16 Configuring Quality of Service
VLAN 1200
IP 1.2.3.4/24
Ethernet VLAN Tag IP: 9.9.9.1
1
Priority CFI VLAN: 1200
Incoming VLAN tagged frame
Figure
Figure 12-5
IP 3.2.3.4/24
ppp encap
1
IP: 9.9.9.1
PPP
Incoming Serial frame

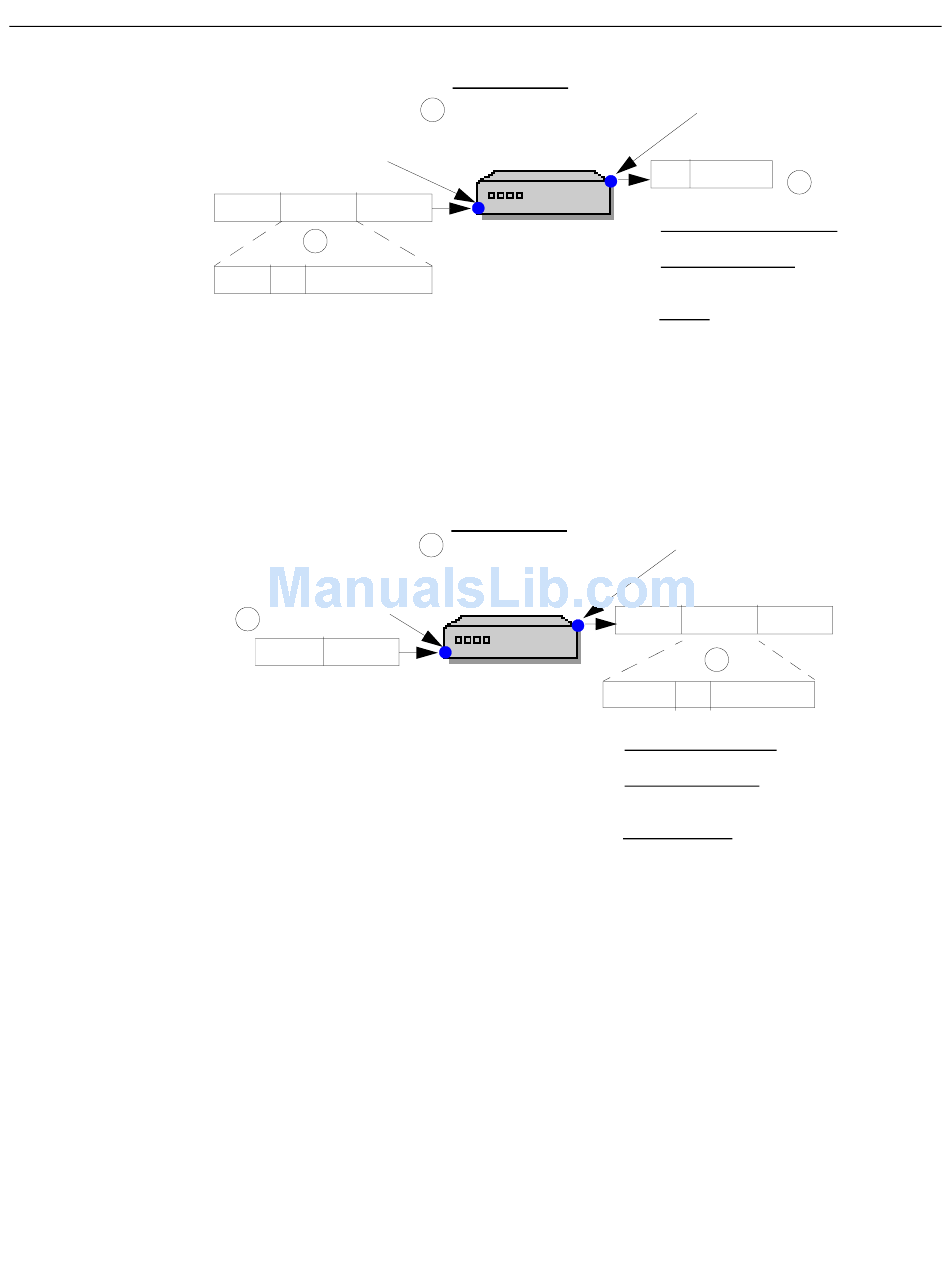

Figure 12-4 LAN/QoS Serial Scenario
IP Routing Table
1.2.3.0/24 F1.1
2
3.3.3.0/24 Serial 1
9.9.9.0/24 Serial 1 (Static)
Serial 1
F1.1
12-5, the policy map setCos4 is applied to the output interface
Non-VLAN Packet Scenario
IP Routing Table
2
1.2.3.0/24 F1.1
3.3.3.0/24 Serial 1
9.9.9.0/24 F1.1 (static)
F1.1
Serial 1
IP 3.2.3.4/24
PPP IP: 9.9.9.1
3
Outgoing Serial frame
Class Map: matchCos5To7
match cos 5 6 7
Policy Map: setDscp
class matchCos5To7
set ip dscp 46
Serial 1
service-policy output setDscp
VLAN 1200
IP 1.2.3.4/24
Ethernet VLAN Tag IP: 9.9.9.1
3
Priority:4 CFI VLAN: 1200
Outgoing VLAN tagged frame
Class Map: matchDscp
match ip dscp 46
Policy Map: setCos4
class matchDscp
set cos 4
FastEthernet 1.1
service-policy output setCos4
