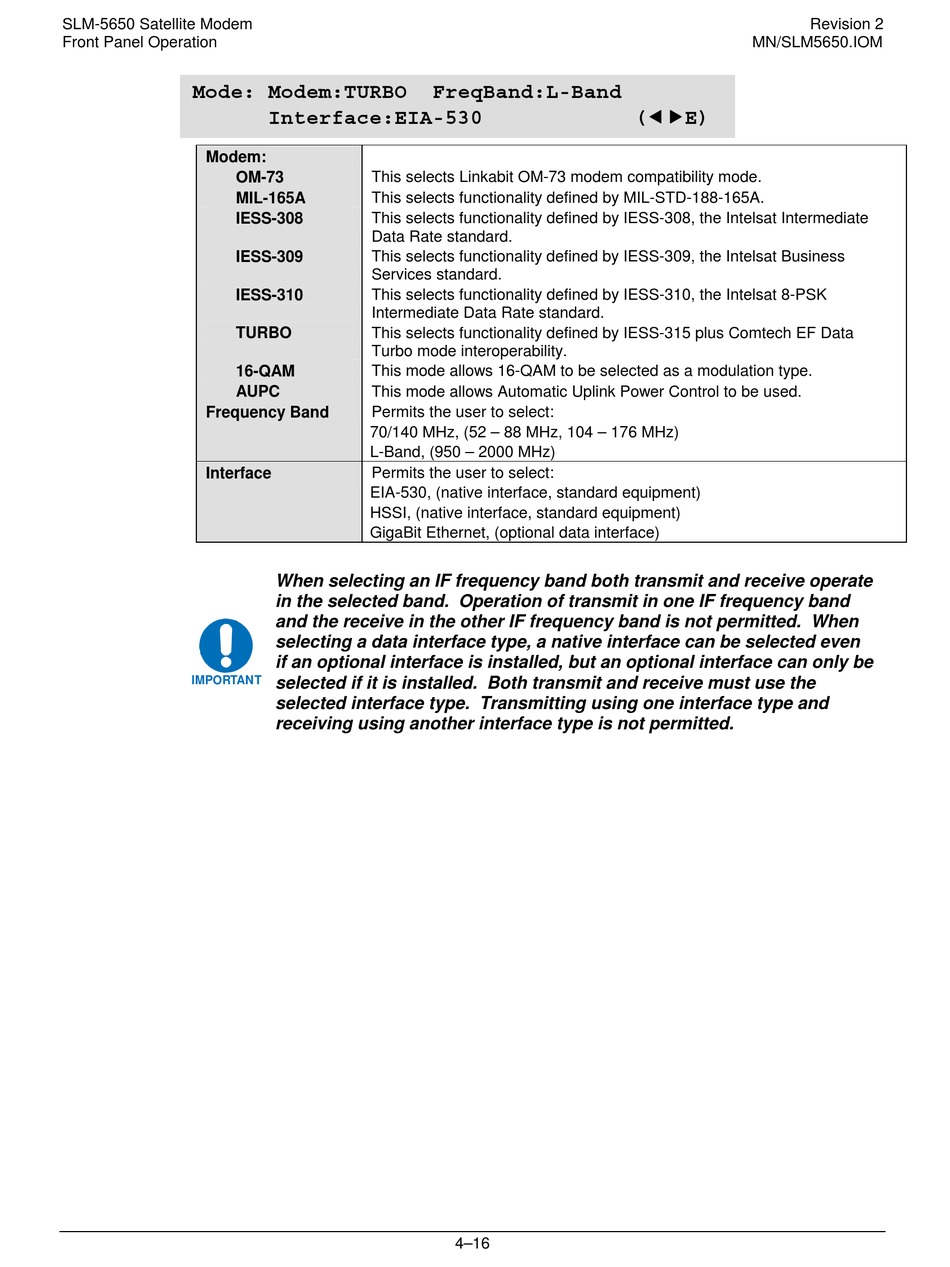

SLM-5650 Satellite Modem
Front Panel Operation
Mode: Modem:TURBO
Select Modem Type, FreqBand or Interface, then press [E].
Modem:
OM-73
MIL-165A
IESS-308
IESS-309
IESS-310
TURBO
16-QAM
AUPC
Frequency Band
Interface
IMPORTANT
FreqBand:L-Band
Interface:EIA-530
This selects Linkabit OM-73 modem compatibility mode.
This selects functionality defined by MIL-STD-188-165A.
This selects functionality defined by IESS-308, the Intelsat Intermediate
Data Rate standard.
This selects functionality defined by IESS-309, the Intelsat Business
Services standard.
This selects functionality defined by IESS-310, the Intelsat 8-PSK
Intermediate Data Rate standard.
This selects functionality defined by IESS-315 plus Comtech EF Data
Turbo mode interoperability.
This mode allows 16-QAM to be selected as a modulation type.
This mode allows Automatic Uplink Power Control to be used.
Permits the user to select:
70/140 MHz, (52 – 88 MHz, 104 – 176 MHz)
L-Band, (950 – 2000 MHz)
Permits the user to select:
EIA-530, (native interface, standard equipment)
HSSI, (native interface, standard equipment)
GigaBit Ethernet, (optional data interface)
When selecting an IF frequency band both transmit and receive operate
in the selected band. Operation of transmit in one IF frequency band
and the receive in the other IF frequency band is not permitted. When
selecting a data interface type, a native interface can be selected even
if an optional interface is installed, but an optional interface can only be
selected if it is installed. Both transmit and receive must use the
selected interface type. Transmitting using one interface type and
receiving using another interface type is not permitted.
