SLM-5650 Satellite Modem
Installation
2.2.2

Optional Installation Using a Typical Customer Rack

Step
1
2
3
4
5
6
7
Procedures
Mount the modem chassis in the assigned position of the equipment rack.
Support the modem by either a rack-mounted shelf, or the two rear rack-
mounted brackets supplied with the unit.
Note: For a custom rack installation, refer to the rack drawing in
Figure 2-1. Additional information can be obtained from Comtech EF Data
Customer Support: www.comtechefdata.com
Connect the cables to the proper locations on the rear panel.
Before turning the power switch on, become familiar with front panel
operation in Chapter 4.
Turn on the power switch.
Check for the proper transmitter (TX) output signal level and spectrum.
Check for proper receiver (RX) input signal level and function.
If there is any problem with the installation, refer to Chapter 5 for
troubleshooting information.

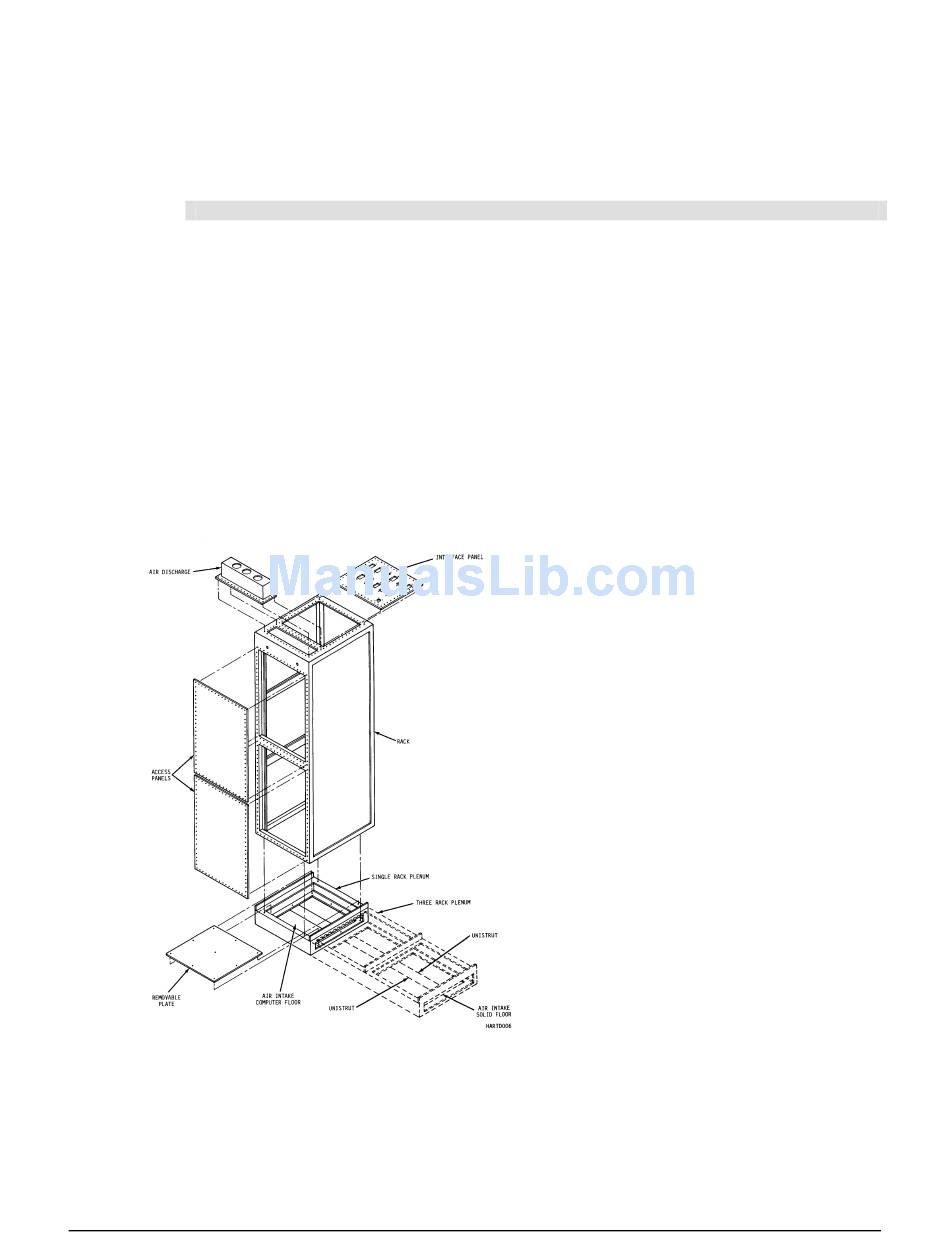

Figure 2-2. Typical Customized Rack

2–3
Note: Cool air is drawn in on the left side
and hot air is exhausted on the right side.
Revision 2
MN/SLM5650.IOM
