Upgrading The Computer
6

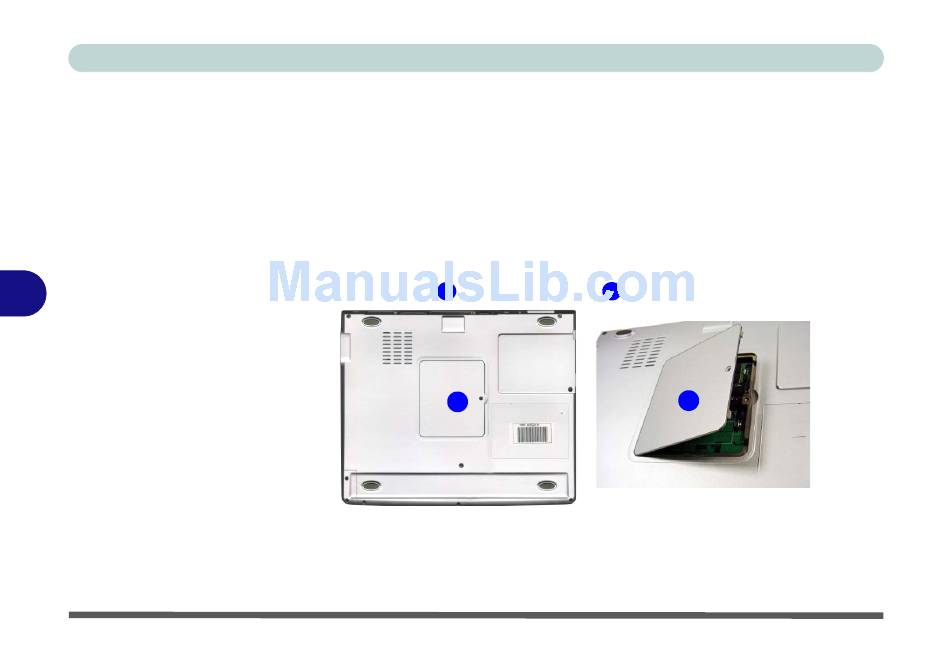

Figure 6 - 3
RAM Cover Removal

6 - 6 Upgrading the System Memory (RAM)

Upgrading the System Memory (RAM)
The computer has two memory sockets for 200 pin Small Outline Dual In-line
Memory Modules (SO-DIMM) supporting DDR 266 MHz. The main memory
can be expanded up to 1024MB. The SO-DIMM modules supported are
128Mb, 256Mb, and 512Mb in size. The total memory size is automatically
detected by the POST routine once you turn on your computer.

Memory Upgrade Process

1. Turn the computer off, and turn it over.
2. Remove screw and the RAM cover
1
1
3. Locate the memory socket.
4. If there is a module currently installed which needs to be upgraded/replaced
then remove it.
.
2
2
