Advanced Controls
3
VGA Monitor and TV
Display Setting
If you intend to use a
TV and VGA monitor
as your display devic-
es, the TV must be set
as the
Display_1, and the
VGA monitor as the
secondary Display_2
(Figure 3 - 10 on page
3 - 16).

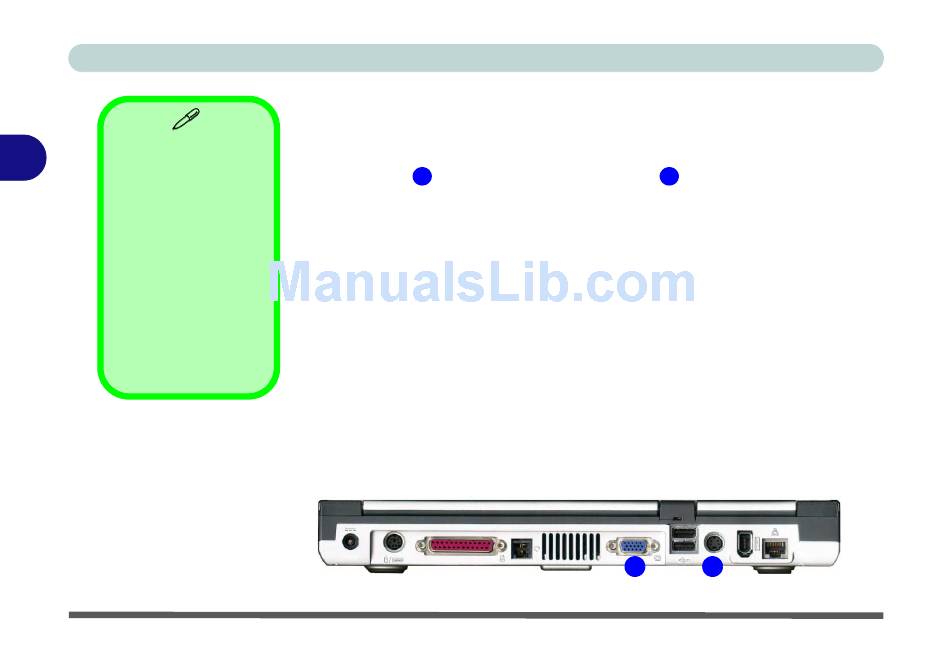

Figure 3 - 5
External Monitor &
S-Video Out Ports

3 - 8 Display Devices

Display Devices
Besides the built-in LCD, you can also use an external VGA monitor (CRT)
or TV as your display device. A VGA monitor connects to the external mon-
itor (CRT) port
The display options are as follows:
1. The built-in LCD (Single).
2. A VGA monitor connected to the external monitor (CRT) port at the rear of
the computer (Single).
primary
3. A TV connected to the S-Video out port at the rear of the computer
(Single).
4. The built-in LCD and a VGA monitor showing the same image (Mirror).
5. The built-in LCD and a TV showing the same image (Mirror).
6. The built-in LCD and a VGA monitor showing different images
(Multimonitor).
7. The built-in LCD and a TV showing different images (Multimonitor).
8. A VGA monitor and a TV showing different images (Multimonitor) - see
sidebar note.
The table on the following page shows the available options.
a TV to the S-Video out port
,
1
, as seen in Figure 3 -
2
1 2
5.
