CHAPTER 2 STANDARDS AND ADJUSTMENTS
D. Pickup/Feeding System

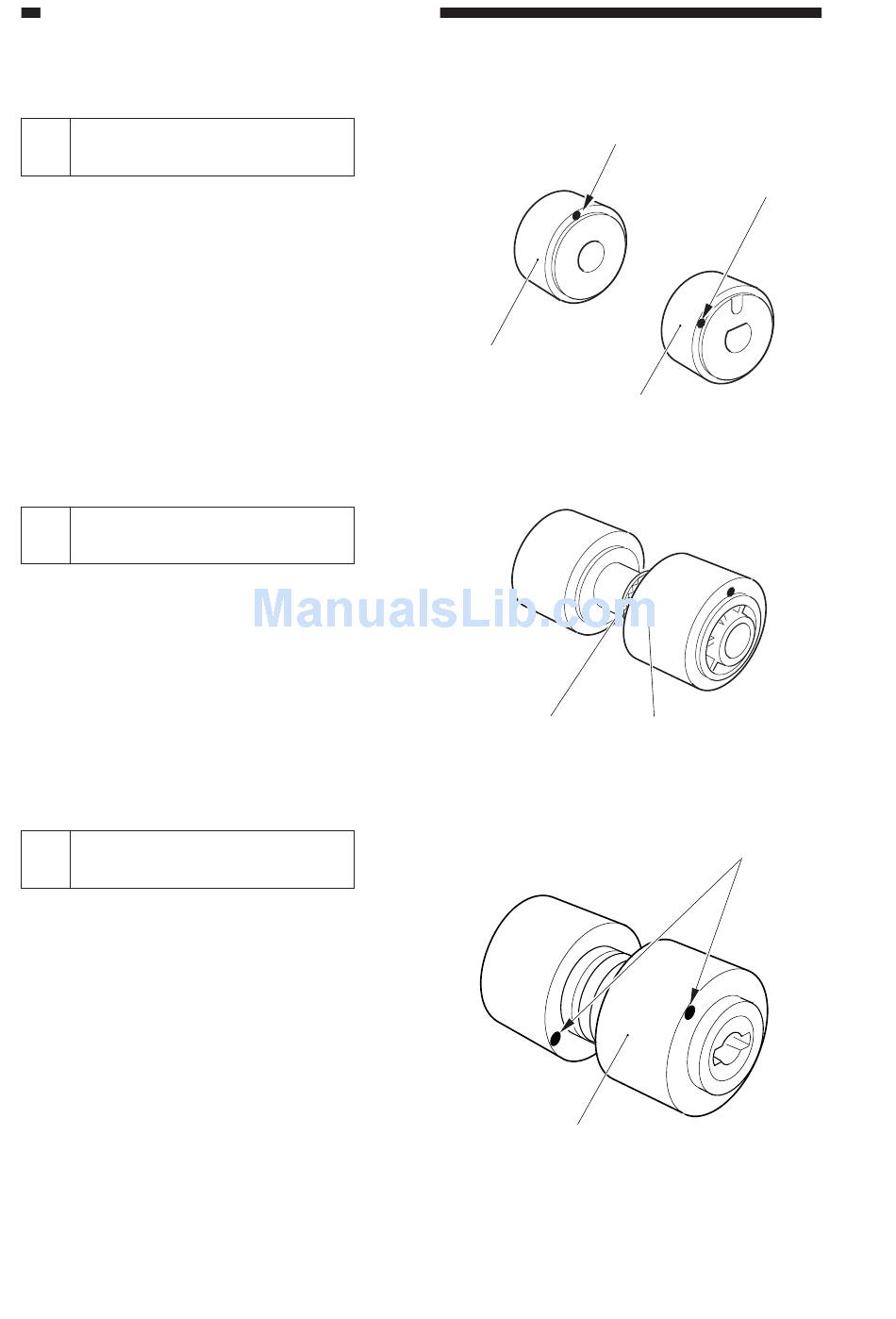

Orientation of the Cassette
1
Pickup Roller
When mounting the pickup roller [1] to
the pickup assembly, be sure that the round
marking [2] on the rubber portion is at the
copier's front. The pickup roller is identified
by color as follows:
for the front, use the gold-colored roller.
for the rear, use the silver-colored roller.
Orientation of the Cassette
2
Feed Roller
When mounting the feed roller [1] to the
pickup assembly, be sure that the gear [2] of
the feed roller is at the copier's front.
Orientation of the Cassette
3
Separation Roller
When mounting the separation roller [1]
to the pickup assembly, be sure that the round
marking [2] is at the copier's front.
2-14
[2]
[1]
[1]
Figure 2-25
[2]
Figure 2-26
[1]
Figure 2-27
[2]
[1]
[2]
