CHAPTER 3 ARRANGEMENT AND FUNCTIONS OF ELECTRICAL PARTS
E. Fans
FM1
Original exposure system cooling
fan 1
FM2
Exhaust discharge fan
FM3
Primary charging assembly fan
FM4
Laser scanner motor cooling fan
FM5
Ozone suction fan
FM6
Toner suction fan
FM7
IP cooling an
FM8
Electrical unit cooling fan
FM9
Power supply cooling fan 1
FM11
Delivery cooling fan
FM13
Power supply cooling fan 2
FM14
Original exposure system cooling
fan 2
FM15
Original exposure system cooling
fan 3
FM16
Back suction fan
FM17
Power cord mount cooling fan
Table 3-8
3-10

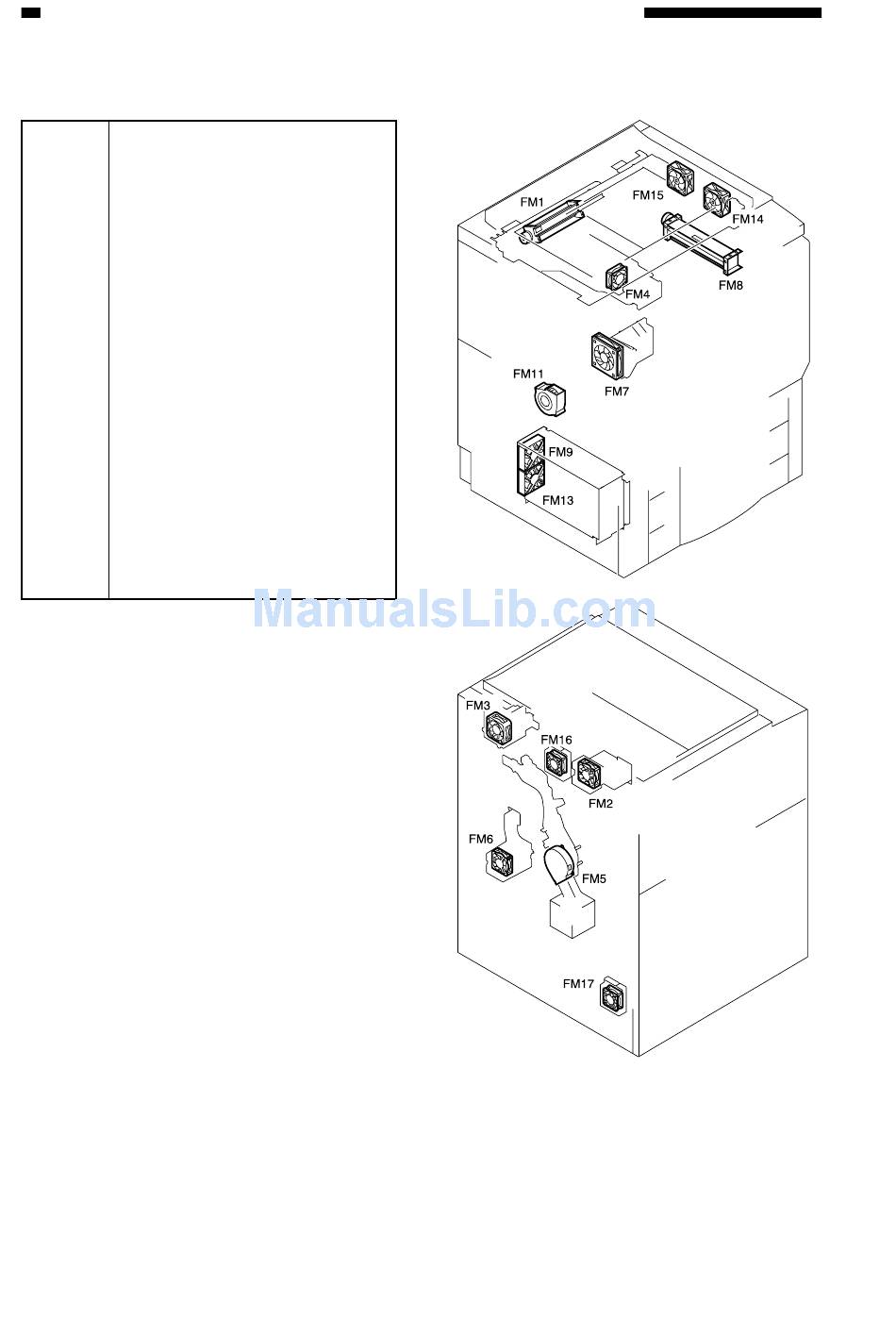

Figure 3-8
