CHAPTER 3 ARRANGEMENT AND FUNCTIONS OF ELECTRICAL PARTS
C. Clutches
1. CLC1120/1130
CL1
M developing cylinder clutch
CL2
C developing cylinder clutch
CL3
Y developing cylinder clutch
CL4
Bk developing cylinder clutch
CL5
M toner supply clutch
CL6
C toner supply clutch
CL7
Y toner supply clutch
CL8
Bk toner supply clutch
CL9
Registration clutch
CL10
Multifeeder feeding clutch
CL11
Cassette 1 pickup clutch
CL12
Cassette 2 pickup clutch
CL13
Cassette 3 pickup clutch (CLC1130
only)
CL16
Multifeeder pickup clutch
CL18
Postcard feeding clutch (100-V
model only)
Table 3-4 (CLC1120/1130)
3-6
CL9
CL10
CL11
CL12
CL13
CL3
CL2
CL1
CL4
CL18

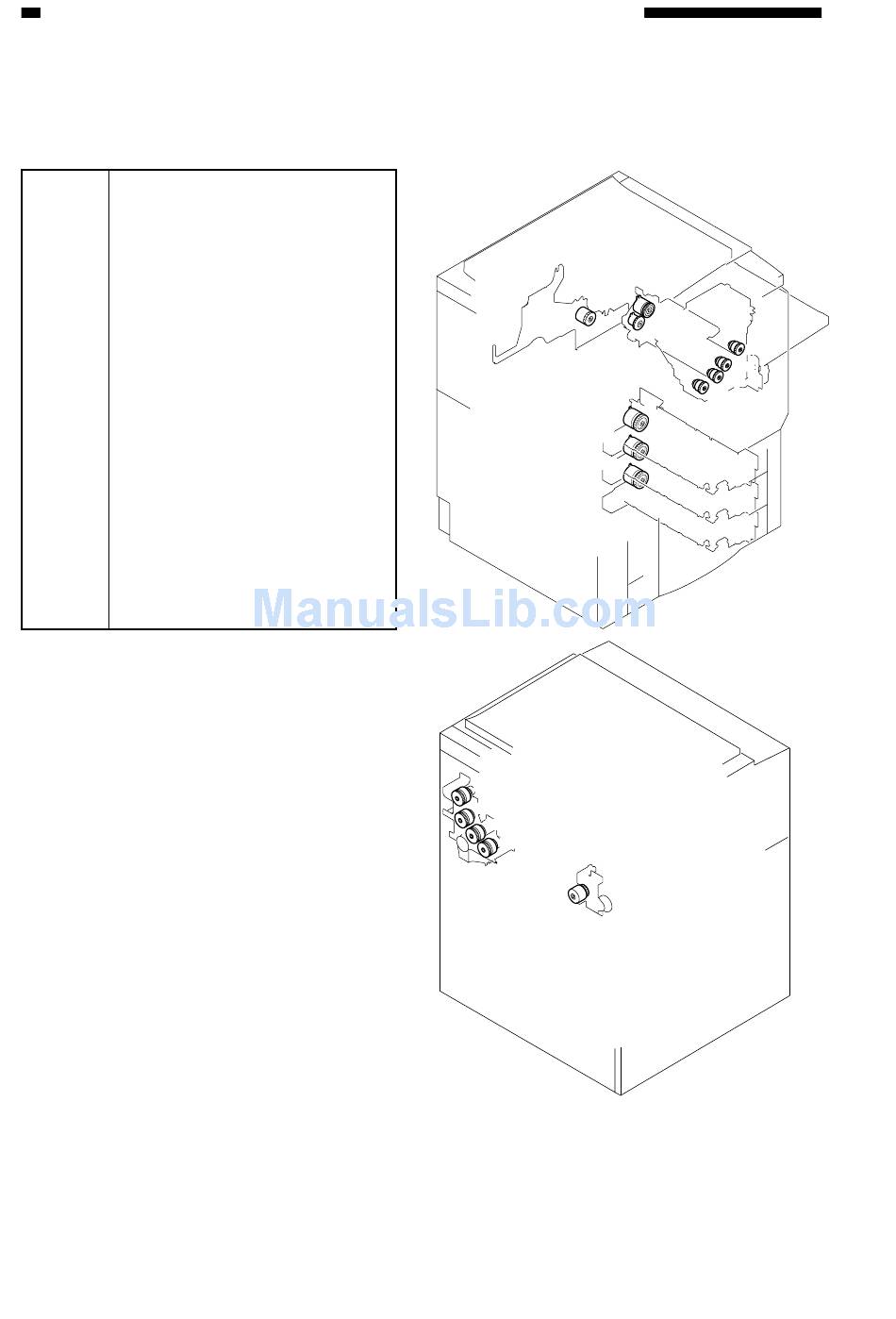

Figure 3-4 (CLC1120/1130)
CL16
CL7
CL6
CL5
CL8
