CHAPTER 3 ARRANGEMENT AND FUNCTIONS OF ELECTRICAL PARTS

CHAPTER 3 ARRANGEMENT AND FUNCTIONS OF
ELECTRICAL PARTS
A. Sensors

1. CLC1120/1130

PS1 Original scanner home position
sensor
PS2 Side A sensor
PS3 Side B sensor
PS4 C sensor
PS5 Pre-transfer paper sensor
PS6 Post-transfer paper sensor
PS7 Separation sensor
PS8 Attraction/transfer locking cam HP
sensor
PS9 Multifeeder pickup sensor
PS10 Fixing oil level sensor
PS11 Fixing upper cleaning belt level
sensor
PS12 Internal delivery sensor
PS15 Multifeeder paper sensor
PS17 Multifeeder lifter H sensor
PS18 Multifeeder lifter L sensor
PS19 Cassette 1 lifter position sensor
PS20 Cassette 1 paper sensor
PS21 Pickup vertical path 1 sensor
PS22 Cassette 2 lifter position sensor
PS23 Cassette 3 lifter position sensor
(CLC1130 only)
PS24 Cassette 2 paper sensor
PS25 Cassette 3 paper sensor (CLC1130
only)
PS26 Pickup vertical path 2 sensor
PS27 Pickup vertical path 3 sensor
(CLC1130 only)
PS30 Pre-registration sensor
PS31 External delivery sensor
Table 3-1a (CLC1120/1130)
PS71
PS70L
PS70S
PS31
PS30
PS6
PS11
PS7
PS5
PS67
PS69L PS69S
PS12
PS10
PS41
PS68S
PS68L

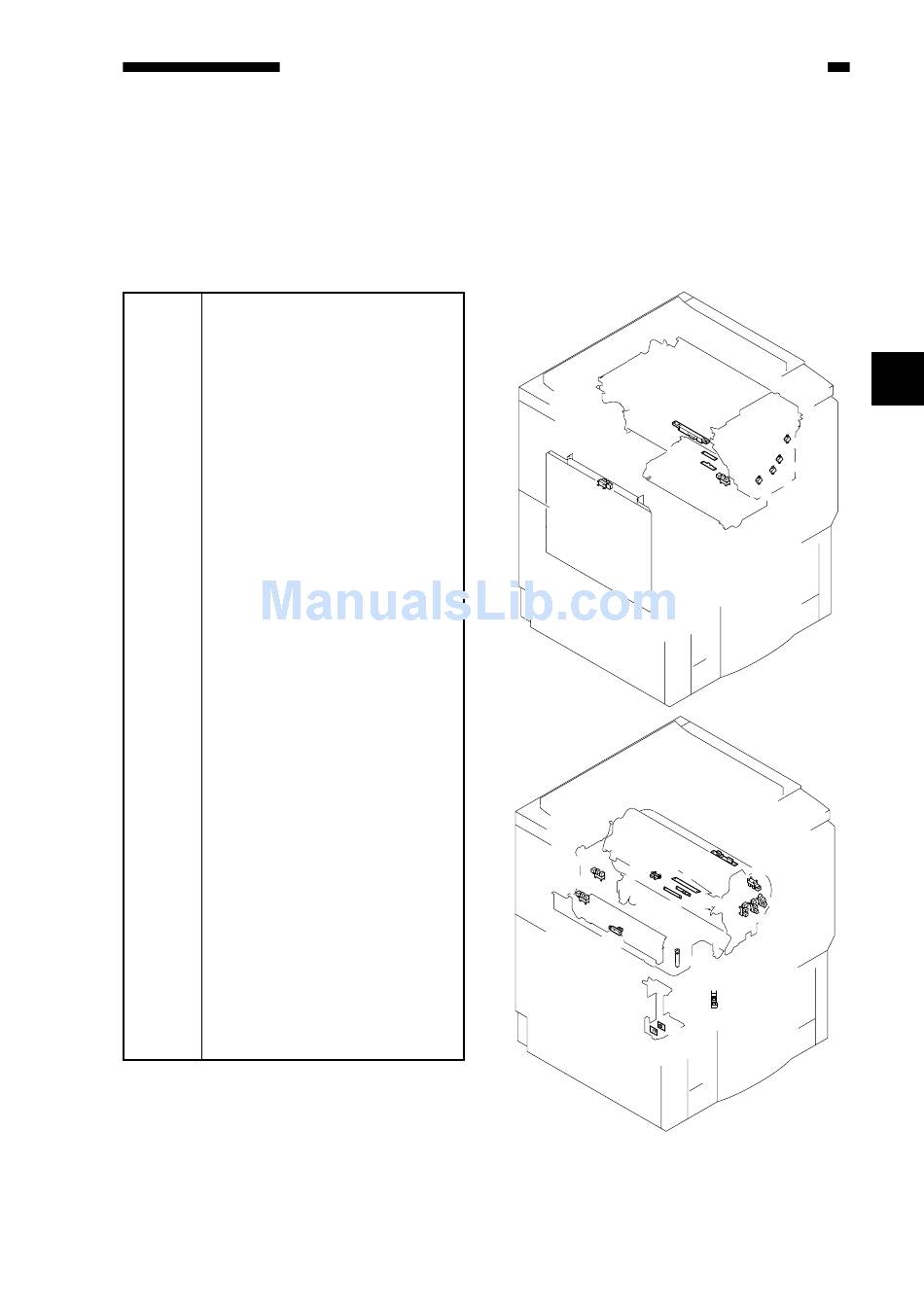

Figure 3-1a (CLC1120/1130)
3
TS3
TS2
TS1
TS4
PS8
PS4
PS2 PS3
3-1
