D: Adapters and Pinouts

The serial device ports of the SLC products match the RJ45 pinouts of the console ports of many
popular devices found in a network environment. The SLC uses conventional straight-through
Category 5 fully pinned network cables for all connections when used with Lantronix adapters. The
cables are available in various lengths.
In most cases, you will need an adapter for your serial devices. Lantronix offers a variety of RJ45-
to-serial connector adapters for many devices. These adapters convert the RJ45 connection on
the SLC to a 9-pin or 25-pin serial connector found on other manufacturers' serial devices or re-
route the serial signals for connections to other devices that use RJ45 serial connectors.
Please check the cabling database on the Lantronix web site at
suggested cables and adapters for commonly used serial devices.
The console port is wired the same way as the device ports and has the same signal options.
Note: You can view or change the console port settings using the LCDs and
pushbuttons on the front panel, the Console Port web page, or the command line interface
show console port and set consoleport commands.
The adapters shown in this chapter are compatible with the Lantronix SLC models.

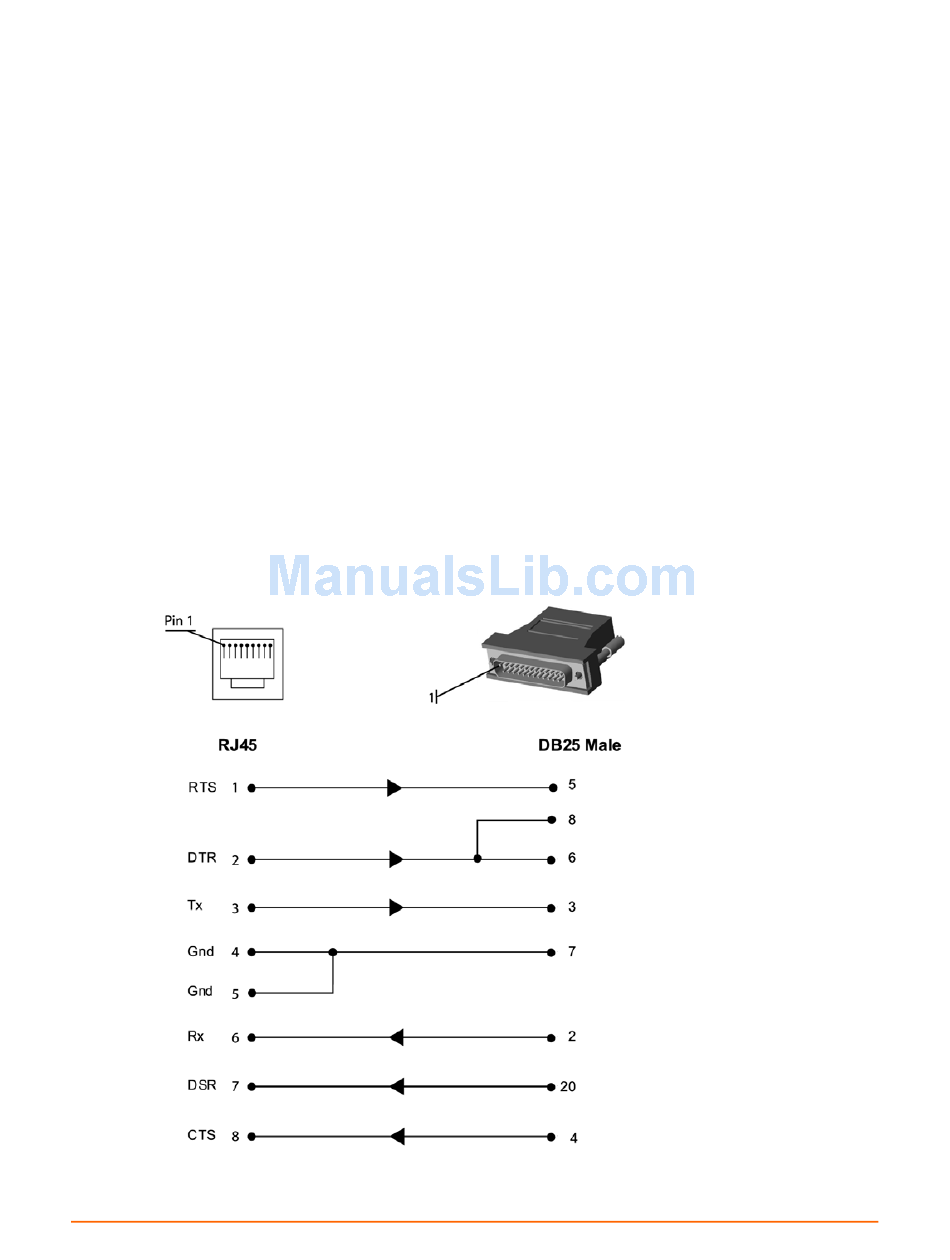

Figure D-1 RJ45 Receptacle to DB25M DCE Adapter for the SLC (PN 200.2066A)

Use PN 200.2066A adapter with a dumb terminal or with many SUN applications.
