9: PC Cards

This chapter describes how to configure storage by using the PC Card web page and CLI. The PC
Card page can be used to configure Compact Flash storage and modem/ISDN PC cards. A
Compact Flash is useful for saving and restoring configurations and for Device Port Logging (see
Device Ports – Logging on page
The SLC supports a variety of Compact Flash-to-PC Card adapters, as well as modem and Basic
Rate Interface (BRI) ISDN cards. See the Lantronix web site
cards-slc.html for a complete list.
This chapter contains the following sections:

Set Up of PC Card Storage


Modem Settings

PC Card Commands

Note: This PC Cards chapter applies only to SLC -02 part numbers.
Set Up of PC Card Storage
To set up PC Card storage in the SLC, perform the following steps.
1. Insert any of the supported PC cards into either of the PC card bays on the front of the SLC.
You can do this before or after powering up the SLC.
If the card is a compact Flash-to-PC card adapter, and the first partition on the compact flash
is formatted with a file system supported by the SLC (ext2 and FAT), the card mounts
automatically.
2. If the card does not mount automatically, or if you want to update its settings, click the
Devices tab and select the PC Card option.

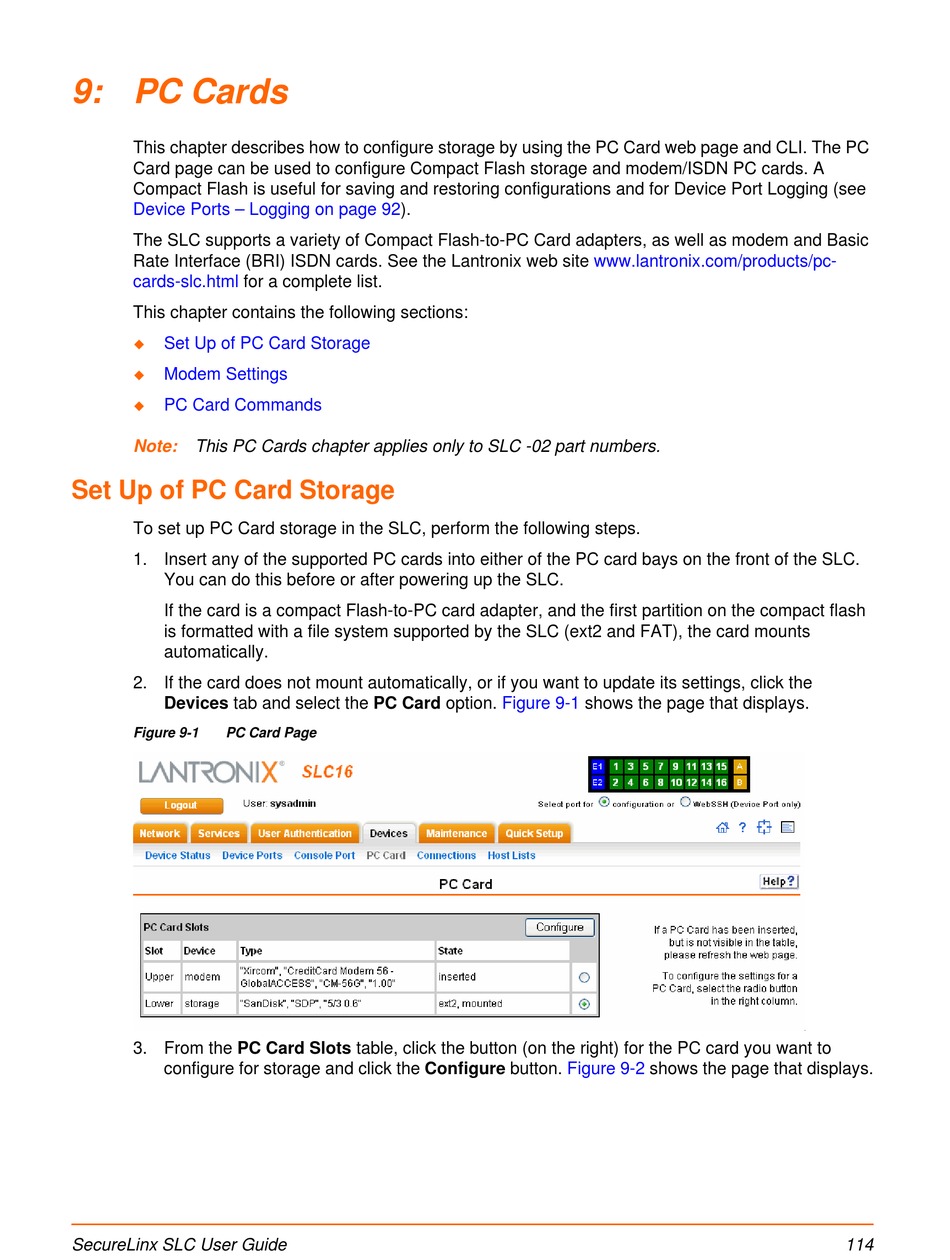

Figure 9-1 PC Card Page
3. From the PC Card Slots table, click the button (on the right) for the PC card you want to
configure for storage and click the Configure button.
SecureLinx SLC User Guide
92).
Figure 9-1
www.lantronix.com/products/pc-
shows the page that displays.
Figure 9-2 shows the page that displays.
114
