Configuring LECs and Resilient Server Links
After the driver files are copied to the server, the

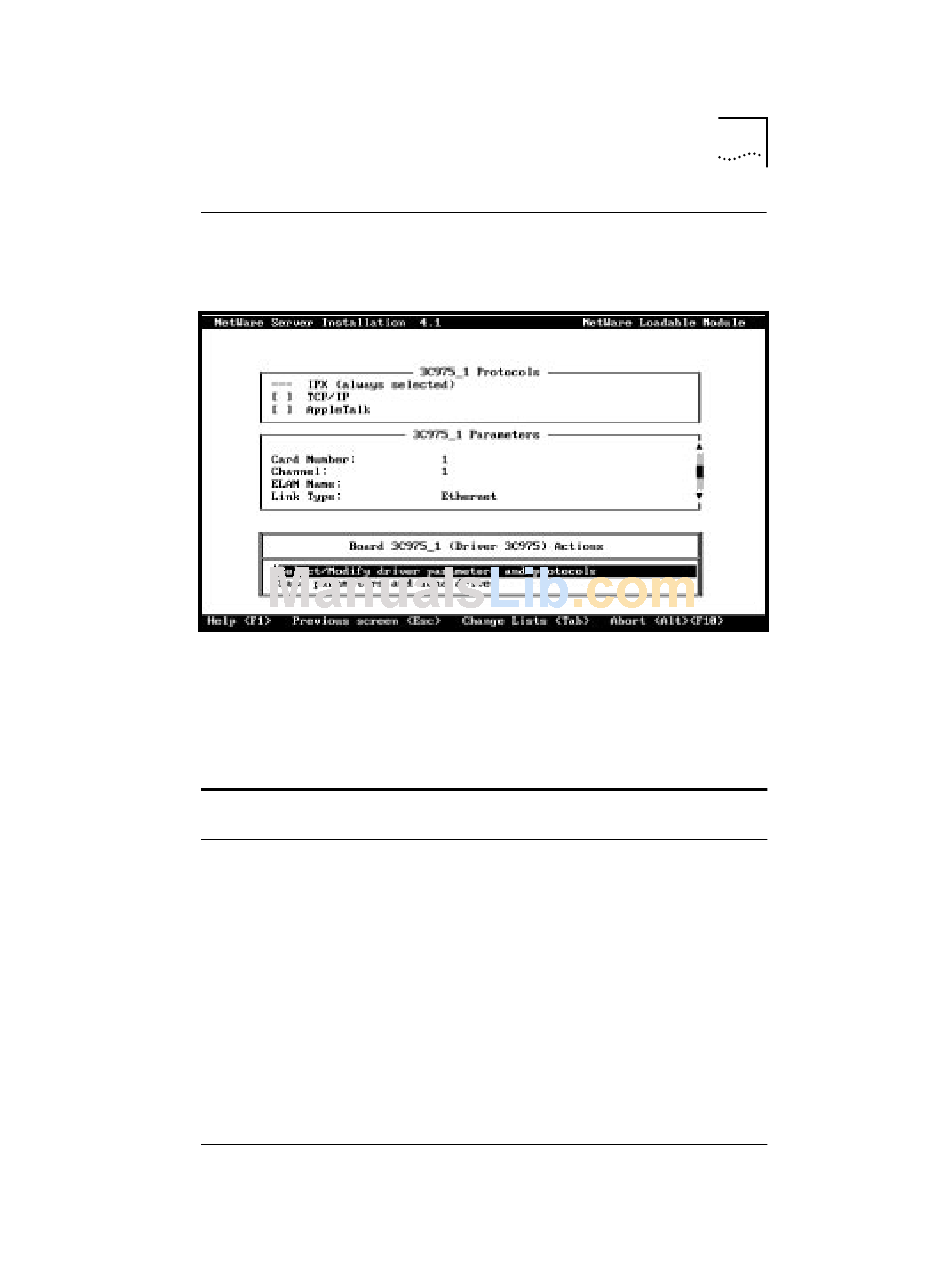

ELAN Configuration screen appears, as shown in Figure 4-7.
Figure 4-7 ELAN Configuration Screen
Table 4-1 lists the configuration parameters of the 3Com
ATMLink NIC, the range of values, and parameter descriptions.
Default values are shown in bold.
Table 4-1 3C975 ATMLink NIC NetWare Install Utility Configuration Parameters
Range of Values
Parameter (Defaults in Bold)
Card Number 1, 2, 3, 4
Channel 1–64
ELAN Name 1- to 32-character ASCII
string
Link Type Ethernet
Token ring
Home Card <blank>, 1, 2, 3, 4
(continued)
Configuring LECs and Resilient Server Links
Description
This number denotes which physical NIC
is being configured.
Use a unique channel number for each
ELAN and standby NIC in the system
(16 ELANs per NIC, 4 NICs per system).
ELAN names should match ELAN names
configured on the ATM switch.
All ELANs with the same card number
must have the same link type. A standby
NIC must have the same link type as its
active NICs.
If Card Number=3 and Home=2,1 then
Card 3 is a standby NIC for Card 2 and
Card 1.
4-11
