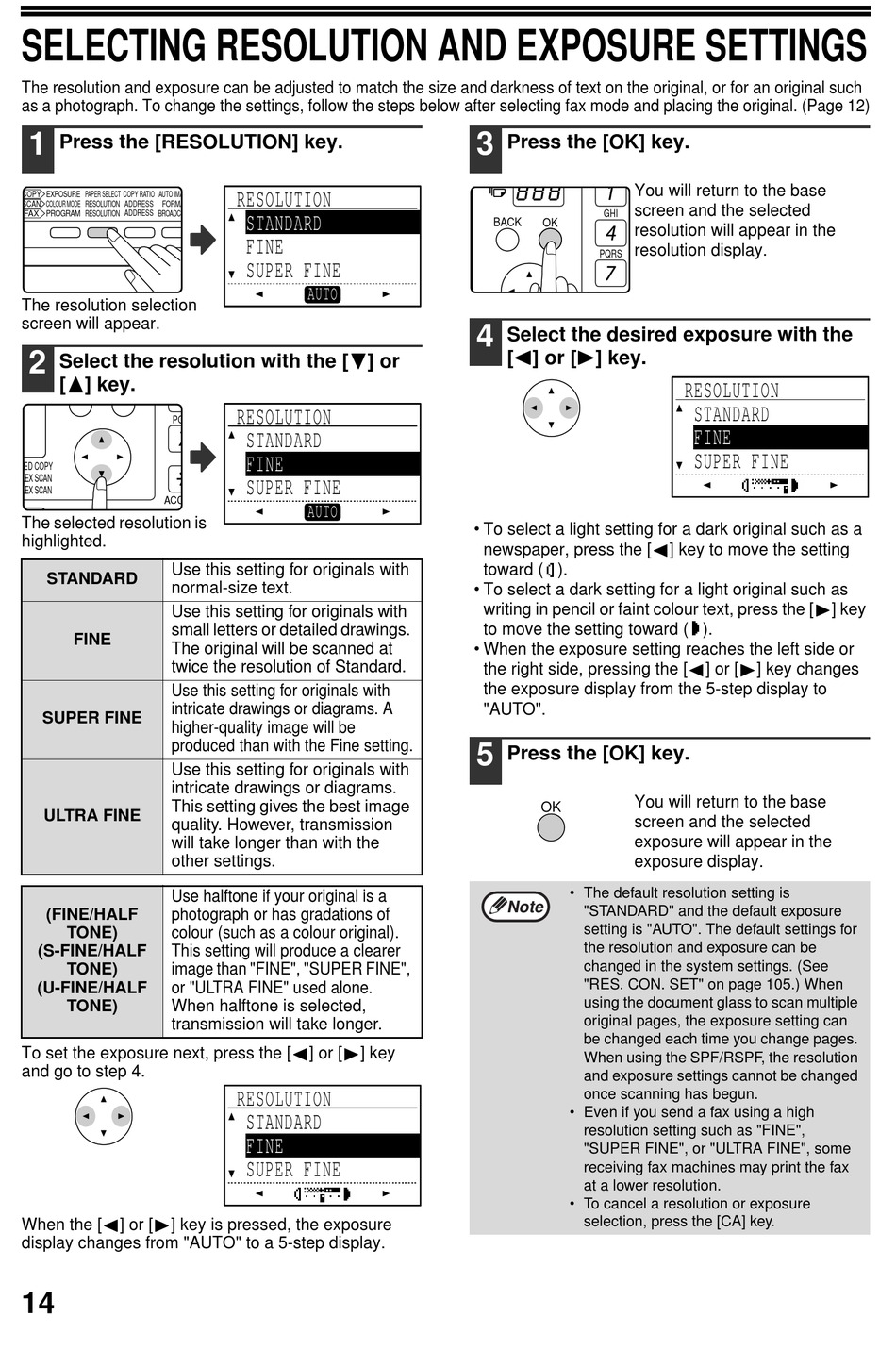

SELECTING RESOLUTION AND EXPOSURE SETTINGS

The resolution and exposure can be adjusted to match the size and darkness of text on the original, or for an original such
as a photograph. To change the settings, follow the steps below after selecting fax mode and placing the original. (Page 12)
1
Press the [RESOLUTION] key.
COPY
EXPOSURE
PAPER SELECT
COPY RATIO
AUTO IMA
SCAN
COLOUR MODE
RESOLUTION
ADDRESS
FORMA
ADDRESS
FAX
PROGRAM
RESOLUTION
BROADCA
The resolution selection
screen will appear.
2
Select the resolution with the [ ] or
[ ] key.
PQ
DED COPY
LEX SCAN
LEX SCAN
ACC
The selected resolution is
highlighted.
Use this setting for originals with
STANDARD
normal-size text.
Use this setting for originals with
small letters or detailed drawings.
FINE
The original will be scanned at
twice the resolution of Standard.
Use this setting for originals with
intricate drawings or diagrams. A
SUPER FINE
higher-quality image will be
produced than with the Fine setting.
Use this setting for originals with
intricate drawings or diagrams.
This setting gives the best image
ULTRA FINE
quality. However, transmission
will take longer than with the
other settings.
Use halftone if your original is a
(FINE/HALF
photograph or has gradations of
TONE)
colour (such as a colour original).
(S-FINE/HALF
This setting will produce a clearer
TONE)
image than "FINE", "SUPER FINE",
(U-FINE/HALF
or "ULTRA FINE" used alone.
TONE)
When halftone is selected,
transmission will take longer.
To set the exposure next, press the [
and go to step 4.
When the [
] or [
] key is pressed, the exposure
display changes from "AUTO" to a 5-step display.
14
RESOLUTION
STANDARD
FINE
SUPER FINE
AUTO
RESOLUTION
STANDARD
FINE
SUPER FINE
AUTO
] or [
] key
RESOLUTION
STANDARD
FINE
SUPER FINE
3
Press the [OK] key.
You will return to the base
screen and the selected
GHI
BACK
OK
resolution will appear in the
resolution display.
PQRS
4
Select the desired exposure with the
[ ] or [ ] key.
• To select a light setting for a dark original such as a
newspaper, press the [
] key to move the setting
toward ( ).
• To select a dark setting for a light original such as
writing in pencil or faint colour text, press the [
to move the setting toward ( ).
• When the exposure setting reaches the left side or
the right side, pressing the [
the exposure display from the 5-step display to
"AUTO".
5
Press the [OK] key.
You will return to the base
OK
screen and the selected
exposure will appear in the
exposure display.
• The default resolution setting is
Note
"STANDARD" and the default exposure
setting is "AUTO". The default settings for
the resolution and exposure can be
changed in the system settings. (See
"RES. CON. SET" on page 105.) When
using the document glass to scan multiple
original pages, the exposure setting can
be changed each time you change pages.
When using the SPF/RSPF, the resolution
and exposure settings cannot be changed
once scanning has begun.
• Even if you send a fax using a high
resolution setting such as "FINE",
"SUPER FINE", or "ULTRA FINE", some
receiving fax machines may print the fax
at a lower resolution.
• To cancel a resolution or exposure
selection, press the [CA] key.
RESOLUTION
STANDARD
FINE
SUPER FINE
] key
] or [
] key changes
