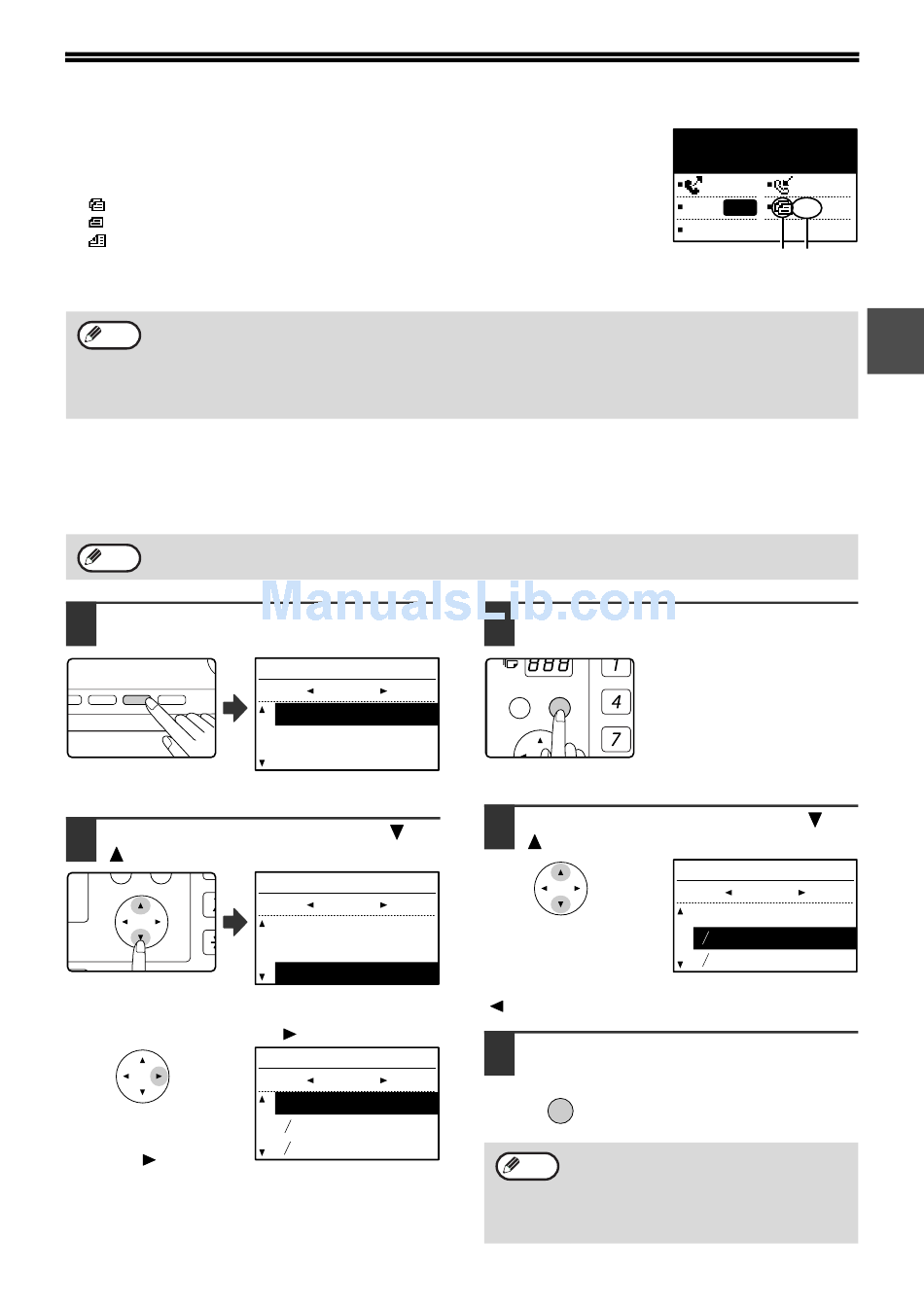

CHECKING THE SIZE OF A PLACED ORIGINAL
When a standard-size* original is placed, the original size is automatically detected
(automatic original detection function) and displayed in the original display. Make sure
that the size has been detected correctly.
(1) When an original is placed, an icon appears to indicate the original scanning mode.
: One-sided scanning in the SPF.
: Scanning on the document glass
: Two-sided scanning in the RSPF.
(2) Displays the original size.
If a non-standard size original is placed or if you wish to change the scanning size,
follow the steps below to manually set the original scanning size.
*Standard sizes
Note
The following sizes are standard sizes: A3, B4, A4, A4R, A5 (11" x 17", 8-1/2" x 14", 8-1/2" x 11", 8-1/2" x 11"R,
5-1/2" x 8-1/2", if the machine uses inch-based paper sizes). If a non-standard size original is loaded (including
special sizes), the closest standard size may be displayed, or the original size may not appear at all.
In Taiwan, the following standard original sizes are detected by the automatic original detection function: A3, B4,
A4, A4R, B5, B5R, A5.

MANUALLY SETTING THE SCANNING SIZE

If you load an original that is not a standard size (such as a long original), or if the size is not detected correctly, be
sure to press the [ORIGINAL SIZE] key and set the original size manually.
Perform the following steps after placing the original in the document feeder tray or on the document glass (page 12).
If a size is specified that is different from the actual original size when scanning a two-sided original in the RSPF,
Note
a scanning error or a cut-off image may result.
1
Press the [ORIGINAL SIZE] key.
RATIO
AUTO IMAGE
OUTPUT
2-SIDED COPY
RESS
FORMAT
ORIGINAL SIZE
DUPLEX SCAN
RESS
DUPLEX SCAN
BROADCAST
ORIGINAL SIZE
The original size
selection screen appears.
2
Select the original size with the [ ] or
[ ] key.
PQ
DED COPY
LEX SCAN
LEX SCAN
ACC
The selected original size
is highlighted.
To select an INCH size, press the [
When the [
] key is
pressed, the original size
selection screen for INCH
sizes appears.
ORIGINAL SIZE
AB
AUTO
A3
B4
ORIGINAL SIZE
AB
AUTO
A3
B4
] key and go to step 4.
ORIGINAL SIZE
INCH
AUTO
8 x11
1
2
8 x11R
1
2
3
Press the [OK] key.
You will return to the base
screen and the selected original
GHI
BACK
OK
size will appear in the original
display.
PQRS
Selecting an INCH original size
4
Select the original size with the [ ] or
[ ] key.
To return to selection of AB original sizes, press the
[
] key and return to step 2.
5
Press the [OK] key.
You will return to the base screen
OK
and the selected original size will
appear in the original display.
To cancel a manual original scanning size
Note
setting, press the [CA] key.
If it is not possible to select the actual original
size, select a size that is larger than the actual
original size. If a smaller size is selected, part
of the original will not be transmitted.
Stand-by.
100%
10 MAY MON 10:25
AM
MEMORY
AUTO
CONT
A4R
AUTO
STANDARD
(1)
(2)
ORIGINAL SIZE
INCH
AUTO
8 x11
1
2
8 x11R
1
2
13
