CHAPTER 6: SCSI and Controller Interface Specification

6.3 Hardware (Connectors)

The SCSI interface is made available via the back panel of the drive, as shown in
Figure 6-1 and
Controller Diag Port (8 pin)
(Diagnostic use only)
Power Connector
(4 pin)
Loader Connector
RS-422 (8 pin)
SCSI ID Jumper Block
(No jumpers on this block =
default SCSI ID of 5)
Denotes Pin 1 orientation

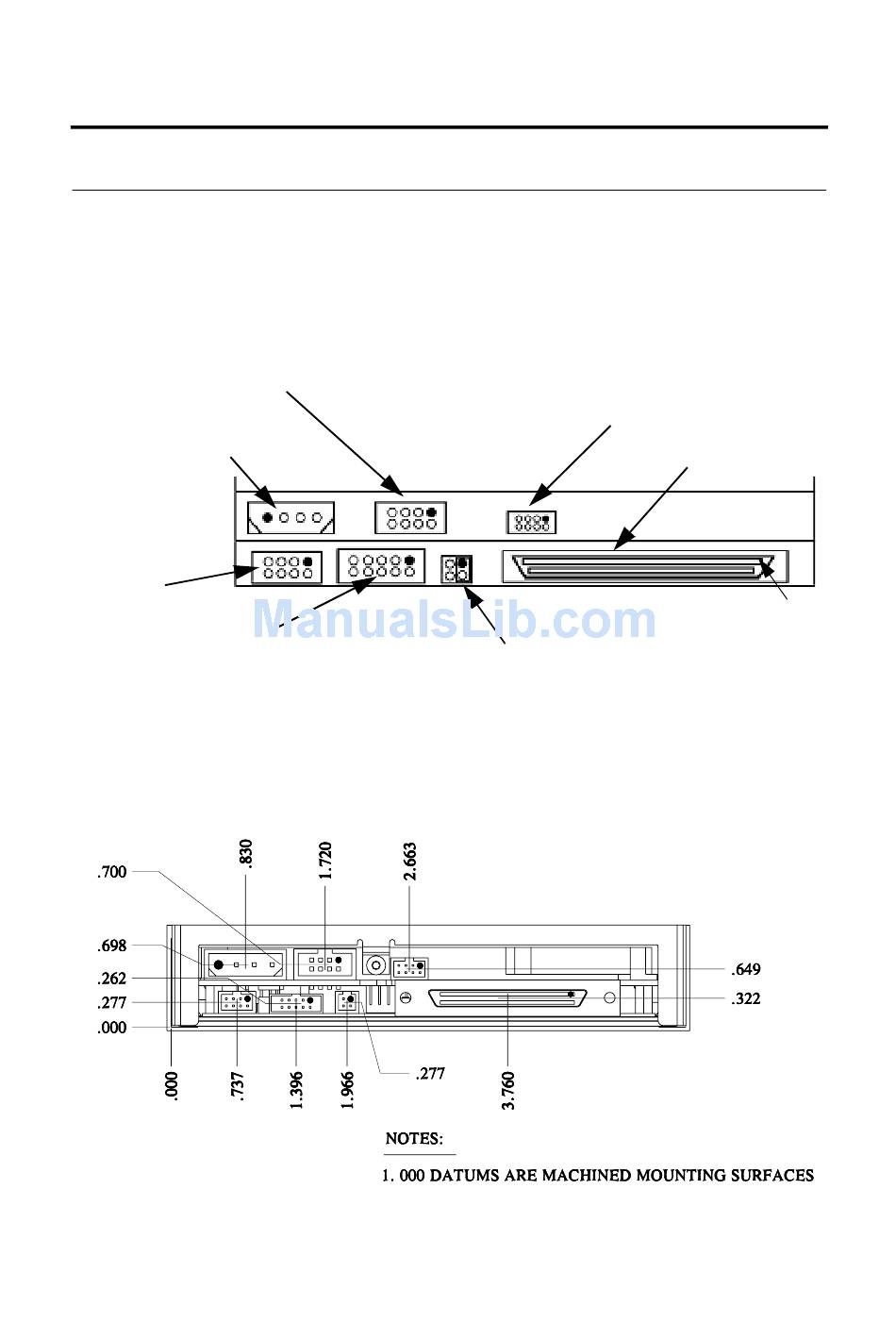

Figure 6-2. Back Panel Connector Locations (Drawn to Scale)

Figure 6-2 below.

Figure 6-1. Connectors on the Back Panel

Configuration Jumper
(Omit jumper on Pins 1-2
to enable wide SCSI)
TERMPWR Block
(Install jumper on Pins 1-2
to enable TERMPWR)
* Figure not drawn to scale
SCSI Port
(68 pin)
Pin 1
