Tandberg Data DLT-V4 Quick Start Manual

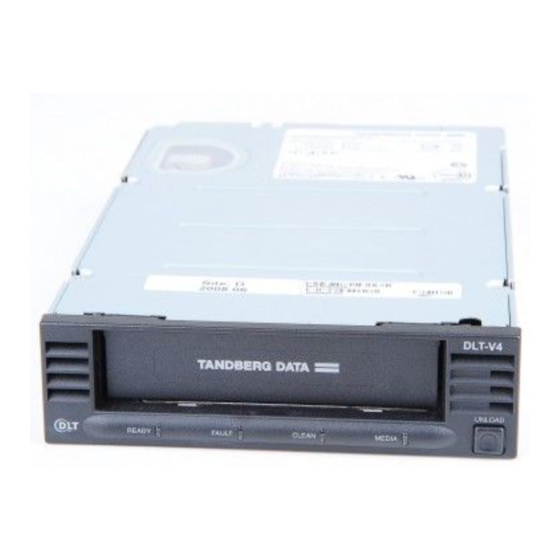

DLT-V4 Tape Drive
Quick Start Guide
Language
English- - - - - - - - - - - 1
German - - - - - - - - - - 4
Spanish - - - - - - - - - - 7
French - - - - - - - - - - 10
Japanese - - - - - - - - 13
Korean - - - - - - - - - - 16
Simplified Chinese - 19
Internal Tape Drive
Inspect and Prepare the Tape
Drive
1 Inspect the shipping box and contents of the box for damage. If you find any
damage, report it to the shipping company.
N : Save the packing materials in case you need to move or ship the
OTE
tape drive. You must ship the tape drive in the original or equivalent
packing materials to preserve your warranty.
2 Select a server or workstation to host the tape drive. Shut down and power off
the host and all peripheral devices attached to the selected host.
3 For SCSI — Change the SCSI ID for the tape drive, if necessary. See
Use the SCSI jumpers to set the SCSI ID. For SATA — There are "no settings to
configure. (See
figure
Manual
.
Figure 1 Tape Drives — Rear View
SCSI Tape Drive — Rear
SCSI ID jumpers
Factory default SCSI ID
4 Remove the cover from the server or workstation as described in the server or
workstation's documentation. See
LVD/SE host bus adapter in the server or workstation.
Install the Tape Drive
Figure 2 Remove the Cover, Install, and Terminate
1 Install the tape drive in a half-height drive bay. See
0
1.)" For complete instructions, see the
SATA Tape Drive — Rear
2. For SCSI — If necessary, install an
figure
figure 1.
DLT-V4 Product
0
figure 2.
0
