CHAPTER 2: General Drive Specifications
2.3 Dimensions and Tolerances
The following figures show the physical specifications of the SDLT 220/3220 tape
drive.

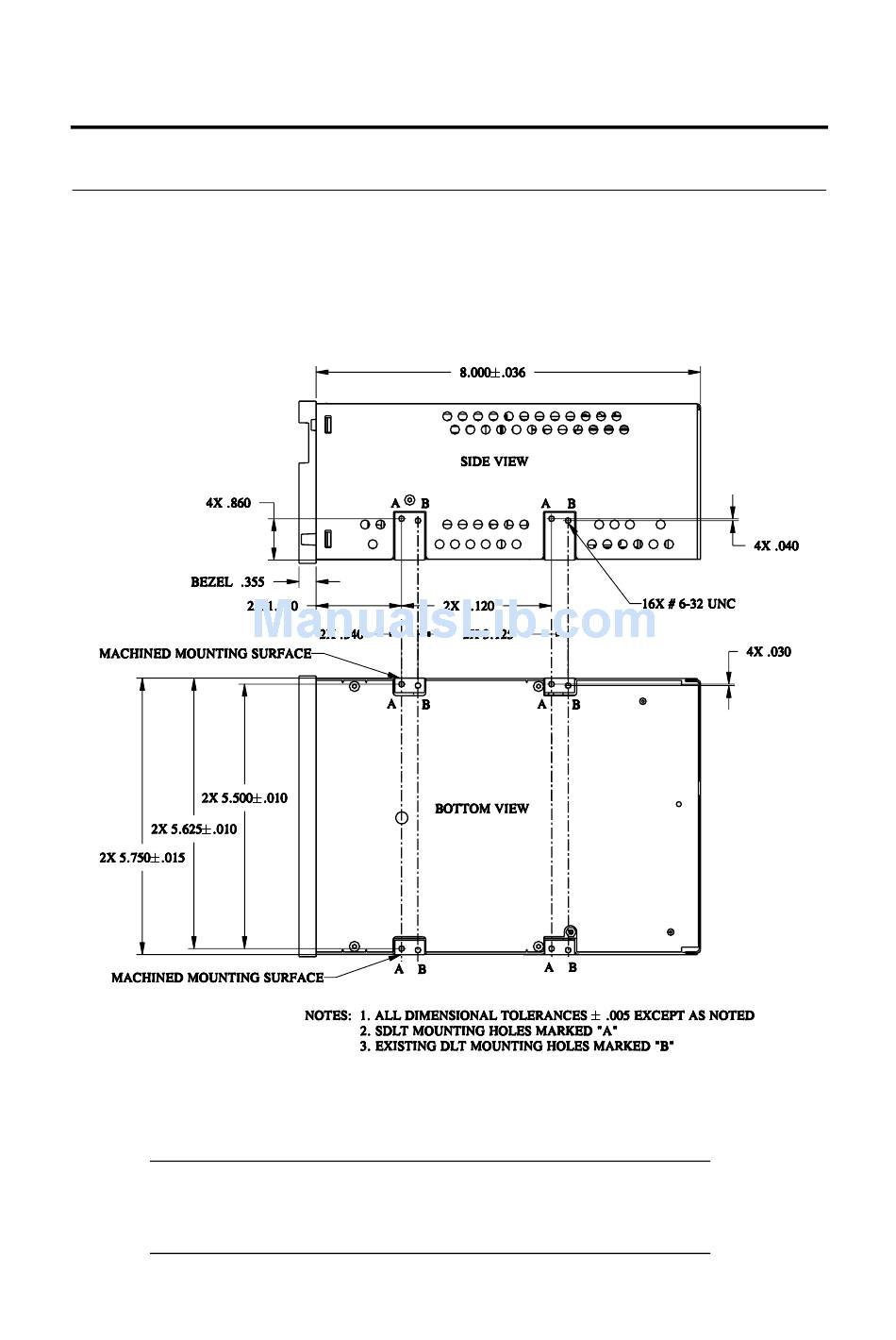

Figure 2-3. Combination Side and Bottom View of SDLT Tape Drive
N
: Tape cartridge insertion and ejection distances are shown
OTE
in
Extraction," on page
Figure 8-1, "Tolerances for Cartridge Insertion and
8-6.
