Understanding The Control Panel And Leds - Intel SBXD62 - Server Compute Blade Installation And User Manual

The blade server can be turned off in any of the following ways:
•
You can press the power-control button on the blade server (behind the control panel
door). This starts an orderly shutdown of the operating system, if this feature is
supported by the operating system.
Note: After turning off the blade server, wait at least 5 seconds before you press the
•
If the operating system stops functioning, you can press and hold the power-control
button for more than 4 seconds to turn off the blade server.
•
The management module can turn off the blade server.

Understanding the Control Panel and LEDs

This section describes the controls and LEDs on the Intel
SBXD62.

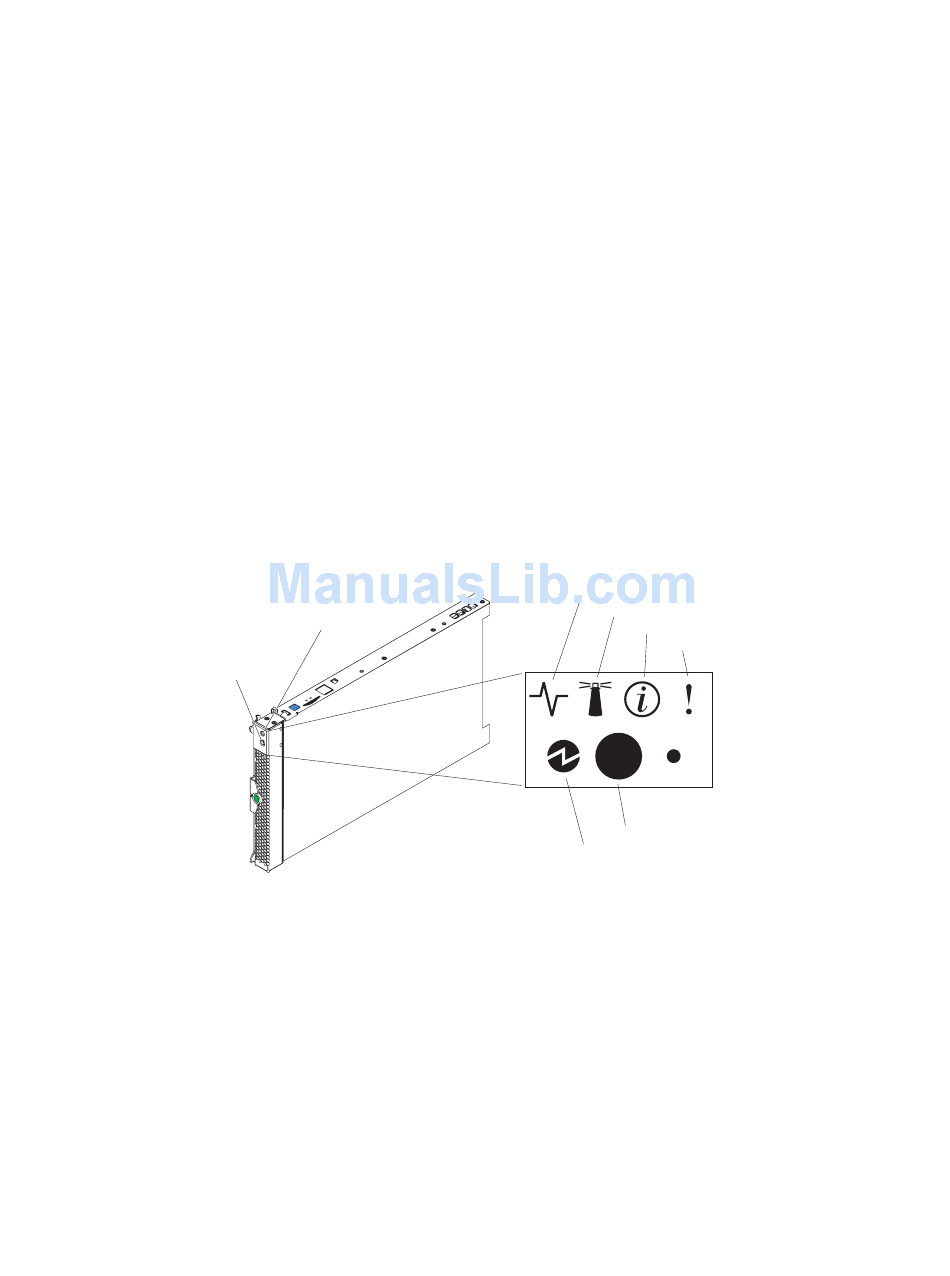

Note: The control panel door is shown in the closed (normal) position in the following
illustration. To access the power-control button, you must open the control panel door.
Keyboard/mouse/video
select button
Keyboard/video/mouse (KVM) select button: Press this button to associate the shared
Intel® Blade Server Chassis SBCE keyboard port, video port, and mouse port with the
blade server. The LED on this button flashes while the request is being processed then is
lit when the ownership of the keyboard, video, and mouse has been transferred to the
blade server. It can take approximately 20 seconds to switch the keyboard, video, and
mouse control to the blade server.
You can also press keyboard keys in the following sequence to switch keyboard/video/
mouse control between blade servers:
NumLock NumLock
Where
server is installed.
8
power-control button to turn on the blade server again.
CD/diskette/USB
select button
blade_server_number
blade_server_number
is the two-digit number for the blade bay in which the blade
Intel® Server Compute Blade SBXD62 Installation and User's Guide
®
Server Compute Blade
Activity LED
Location LED
Information LED
Blade-error LED
Power-control button
Power-on LED
Enter
AF000441
