Shut down the operating system before you turn off the blade server. See the operating-
system documentation for information about shutting down the operating system.
The blade server can be turned off in any of the following ways:
•
You can press the power-control button on the blade server (behind the control panel
door, see
orderly shutdown of the operating system, if this feature is supported by the operating
system.
Note: After turning off the blade server, wait at least 5 seconds before you press the
•
If the operating system stops functioning, you can press and hold the power-control
button for more than 4 seconds to turn off the blade server.
•
The management module can turn off the blade server.
— If the system is not operating correctly, the management module will
— Through the management-module Web interface, you can also configure the

Understanding the Control Panel and LEDs

This section describes the controls and LEDs on the blade server.
Note:
10
"Understanding the Control Panel and LEDs" on page
power-control button to turn on the blade server again.
automatically turn off the blade server.
management module to turn off the blade server. For additional information, see
®
the Intel Blade Server Management Module SBCECMM: Installation and User's
Guide.

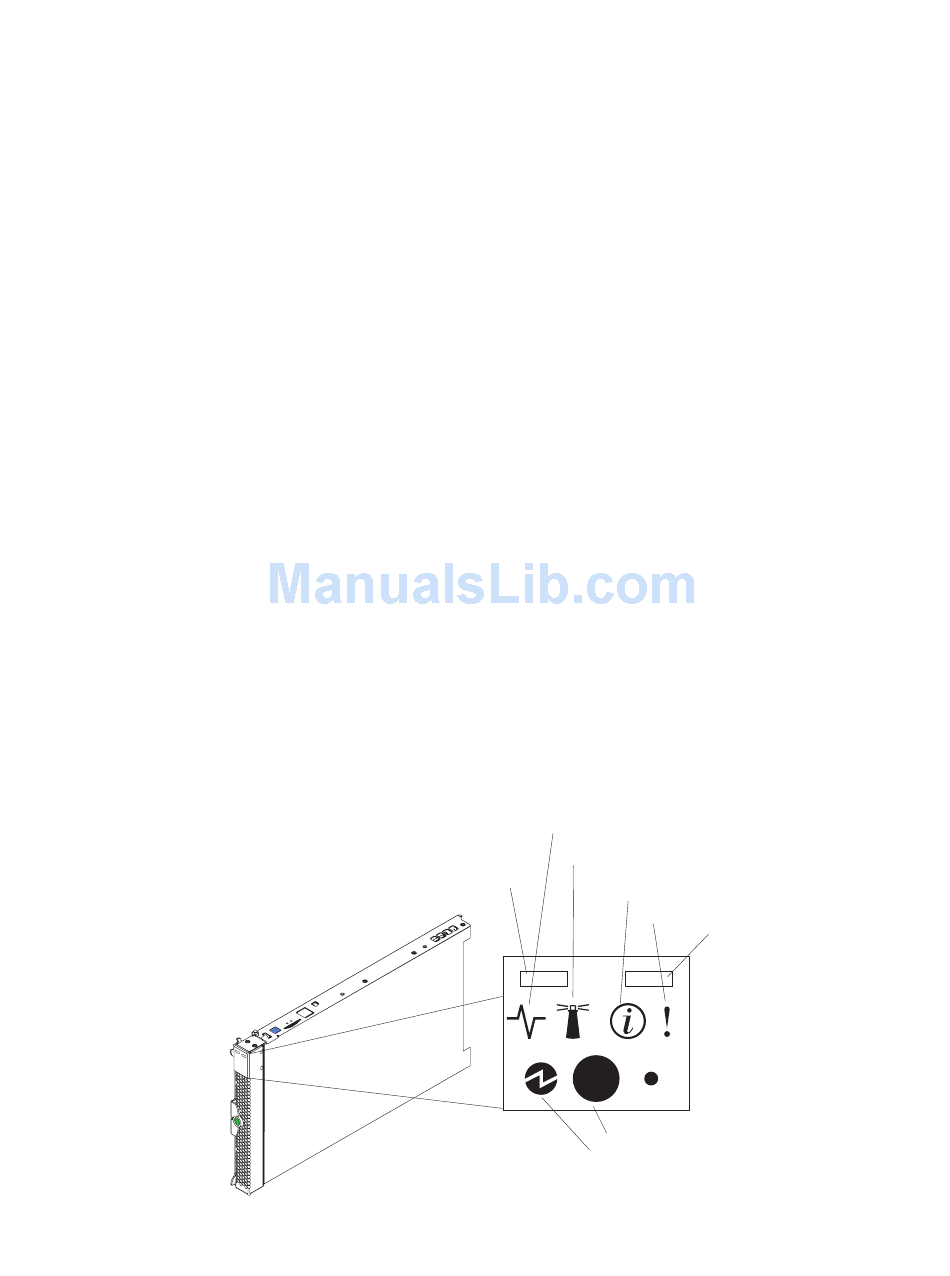

The control panel door is shown in the closed (normal) position in the
following illustration. To access the power-control button, you must open the
control panel door.
KVM select button
Intel® Server Compute Blade SBXD132 Installation and User's Guide
10). This starts an
Activity LED
Location LED
Information LED
Blade-error LED
Media-tray select
buttom
Power-control button
Power-on LED
AF000941
