configuration information by using the Configuration/Setup Utility program. When
you restart the blade server, it displays a message indicating that the memory
configuration has changed. Start the Configuration/Setup Utility program and select
Save Settings. See
information.
To install a DIMM, complete the following steps:
1. Read the safety information beginning on
Information"
2. Read the documentation that comes with the DIMMs.
3. Shut down the operating system, turn off the blade server, and remove the blade server
from the Intel® Blade Server Chassis SBCE. See
an Intel® Blade Server Chassis SBCE" on page 17
4. Carefully lay the blade server on a flat, non-conductive surface.
5. Open the blade server cover (see
instructions).

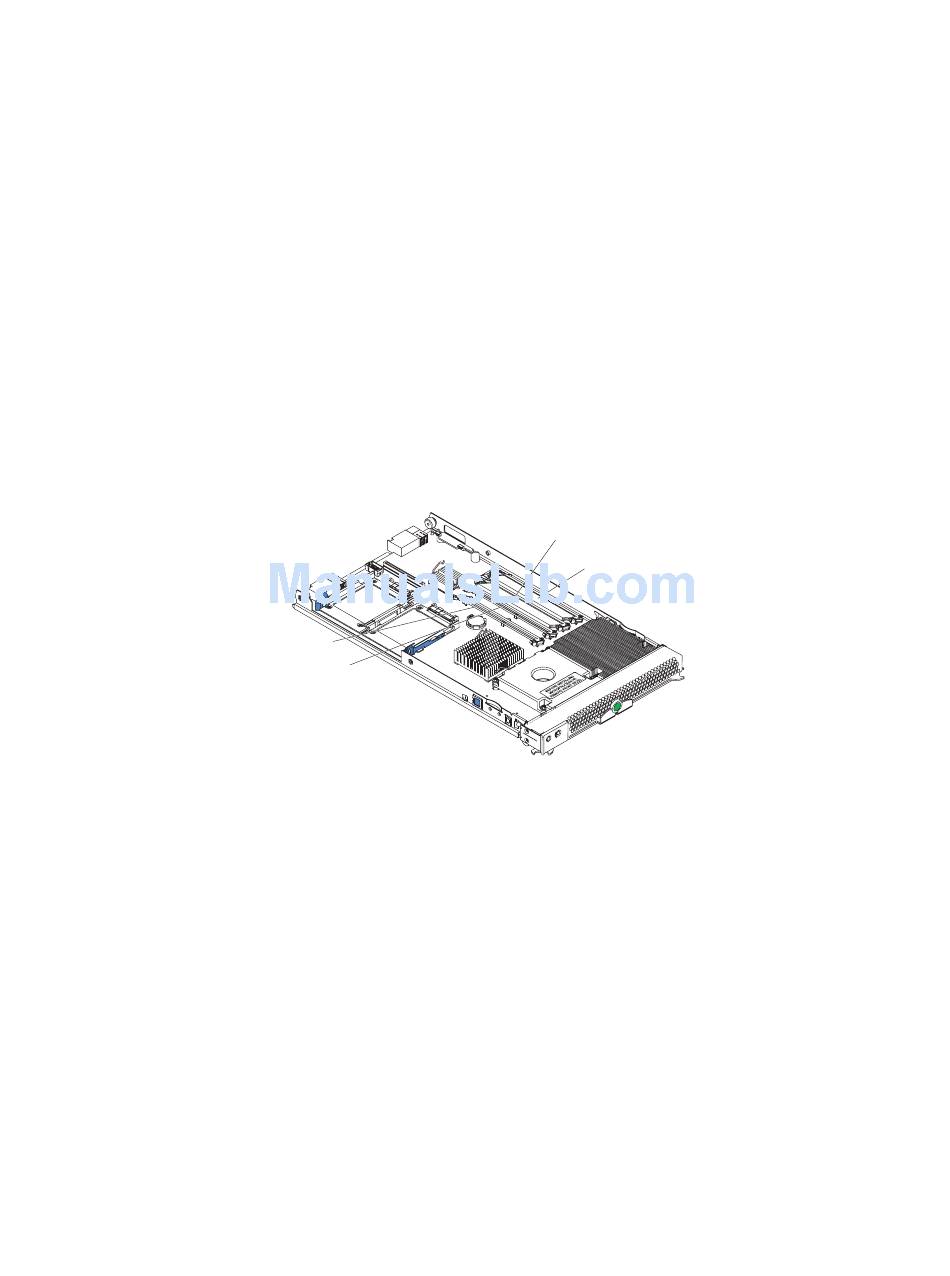

6. Locate the DIMM connectors on the system board (see the above illustration).
Determine the connectors into which you will install the DIMMs.
7. Touch the static-protective package that contains the DIMM option to any unpainted
metal surface on the Intel® Blade Server Chassis SBCE or any unpainted metal
surface on any other grounded rack component in the rack you are installing the
DIMM option in for at least 2 seconds; then, remove the DIMM from its package.
8. To install the DIMMs, repeat the following steps for each DIMM that you install:
a. Turn the DIMM so that the DIMM keys align correctly with the connector on the
system board.
Important: To avoid breaking the retaining clips or damaging the DIMM connectors,
22
"Configuration/Setup Utility Menu Choices" on page 36
and "Installation Guidelines" on page
DIMM slot 4
DIMM slot 3
handle the clips gently.
Intel® Server Compute Blade SBXD62 Installation and User's Guide
page 65 in Appendix C, "Safety
15.
"Removing the Blade Server from
for instructions.
"Opening the Blade Server Cover" on page 18
DIMM 2
DIMM 1
AF000434
for more
for
