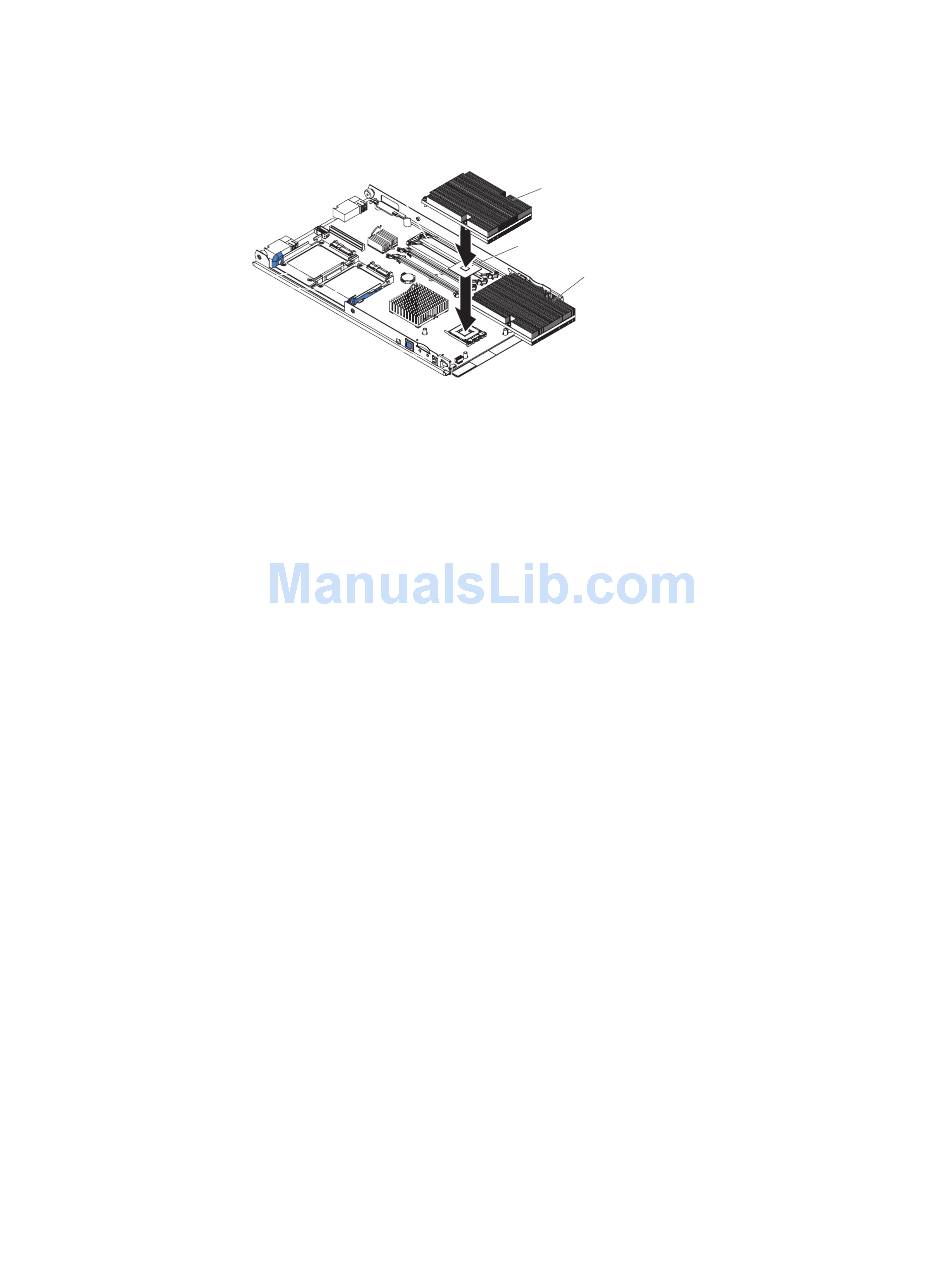

The following illustration shows how to install the second microprocessor on the system
board for the blade server.
To install an additional microprocessor, complete the following steps:
1. Read the safety information beginning on
Information"
2. Shut down the operating system, turn off the blade server, and remove the blade server
from the Intel® Blade Server Chassis SBCE. See
an Intel® Blade Server Chassis SBCE" on page 17
3. Carefully lay the blade server on a flat, static-protective surface.
4. Open the blade server cover (see
instructions).
5. Remove the bezel assembly (see
page 19
6. Locate the microprocessor socket on the system board.
7. Remove the two screws that secure the heat-sink filler and then remove the filler from
the microprocessor socket.
8. Install the microprocessor:
a. Remove the protective cover, tape, or label from the surface of the microprocessor
socket, if one is present.
b. Touch the static-protective package that contains the new microprocessor to any
unpainted metal surface on the blade server or any unpainted metal surface on any
other grounded rack component in the rack you are installing the microprocessor
in for at least 2 seconds; then, remove the microprocessor from the package.
Important: Do not use any tools or sharp objects to lift the locking lever on the
c. Rotate the locking lever on the microprocessor socket from its closed and locked
position until it stops or clicks in the fully open position (approximately a 135-
degree angle), as shown.
24
and
"Installation Guidelines" on page
for instructions).
microprocessor socket. Doing so might result in permanent damage to the
system board.
Intel® Server Compute Blade SBXD62 Installation and User's Guide
Heat Sink
Microprocessor 2
Microprocessor 1
and Heat Sink
AF000446
page 65 in Appendix C, "Safety
15.
"Removing the Blade Server from
for instructions.
"Opening the Blade Server Cover" on page 18
"Removing the Blade Server Bezel Assembly" on
for
