Table 2. System Board LEDs

LED name and location
DIMM 1 error LED (CR201)
DIMM 2 error LED (CR4)
DIMM 3 error LED (CR5)
DIMM 4 error LED (CR6)
BMC fault LED (CR11)
Microprocessor 1 error LED (CR12)
Microprocessor 2 error LED (CR13)
System board fault LED (CR30)

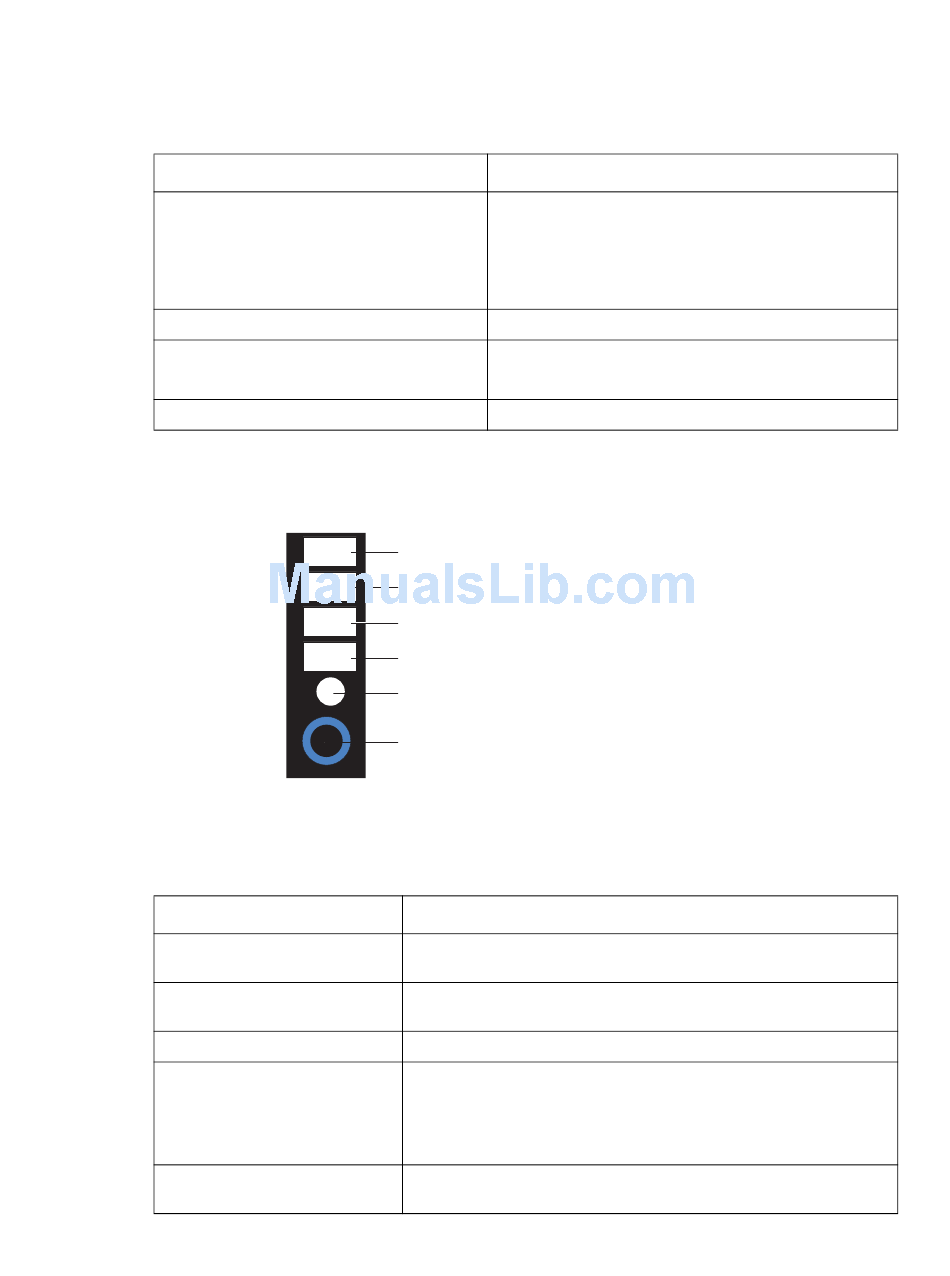

The following illustration shows the light path diagnostics panel on the system board.

Table 3. Light Path Diagnostics Panel LEDs

LED error
NMI
MIS (microprocessor speed
mismatch)
S BRD (system board)
TEMP (over temperature)
Light path diagnostics LED
(CR111)
Intel® Server Compute Blade SBXD62 Installation and User's Guide
NMI
NMI error LED
MIS
Microprocessor speed mismatch error LED
SBRD
System-board error LED
TEMP
Over temperature error LED
Light path diagnostics LED (CD111)
Light path diagnostics switch (SW4)
Check error log for additional information. Restart the blade server.
If the error still exists, call for service.
Check microprocessors to make sure that they are the same
speed.
Restart the blade server. If the error still exists, call for service.
Check the Intel® Blade Server Chassis SBCE blowers for correct
operation and the air inlets for obstructions. Make sure that the
temperature of the room where the blade server is installed is within
the limits specified by the
Specifications" on page
Lights to show that the light path diagnostics circuit is active and
functioning. Check the other light path diagnostic LEDs for errors.
Description
There is a problem with the corresponding DIMM.
There is a problem with the BMC.
There is a problem with the corresponding
microprocessor.
There is a problem with the system board.
Action
"Intel® Server Compute Blade SBXD62
3.
13
