Flashing rapidly: The service processor (BMC) on the blade server is handshaking
with the management module.
•
Flashing slowly: The blade server has power but is not turned on.
•
Lit continuously: The blade server has power and is turned on.
Power-control button: This button is behind the control panel door. Press this button to
turn on or turn off the blade server.
Note: The power-control button has effect only if local power control is enabled for the blade
server. Local power control is enabled and disabled through the management-module Web
interface.

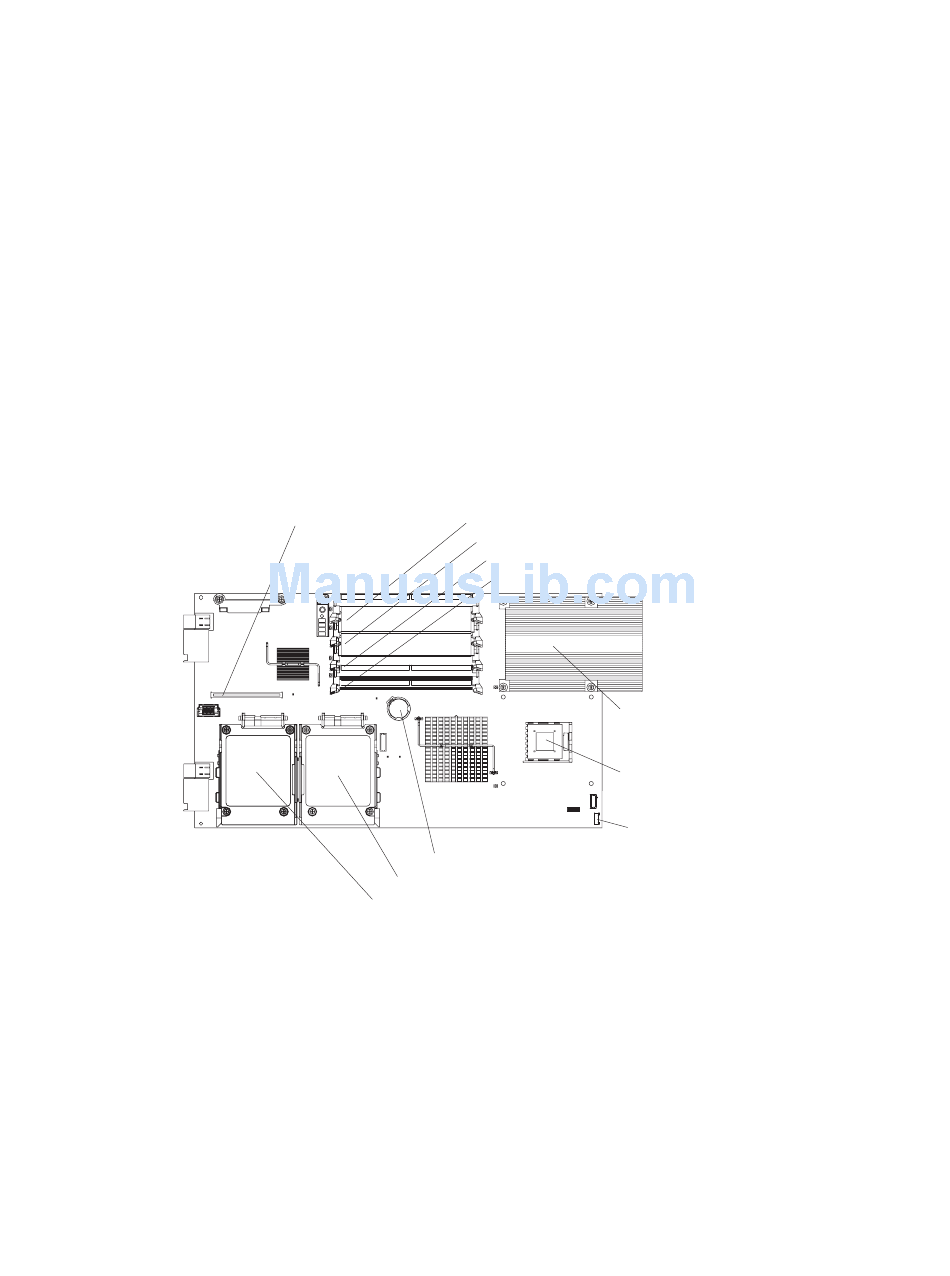

System Board Illustration

The following illustration shows the system-board components, including connectors for
user-installable options, for the blade server.
10
DIMM 1
I/O expansion
option DIMM 2
Battery
SAS hard disk drive 0
SAS hard disk drive 1
Intel® Server Compute Blade SBXD62 Installation and User's Guide
DIMM 3
DIMM 4
Microprocessor 1
and heat sink
Microprocessor 2
and heat sink option
Control-panel
connector
