August 24, 2004
2. Press and hold both buttons to enter offline mode. When the printer ready
3. Press and release the document feed button to print the test pattern. The test
4. See Figure 32 and verify that your printer has printed correct information for

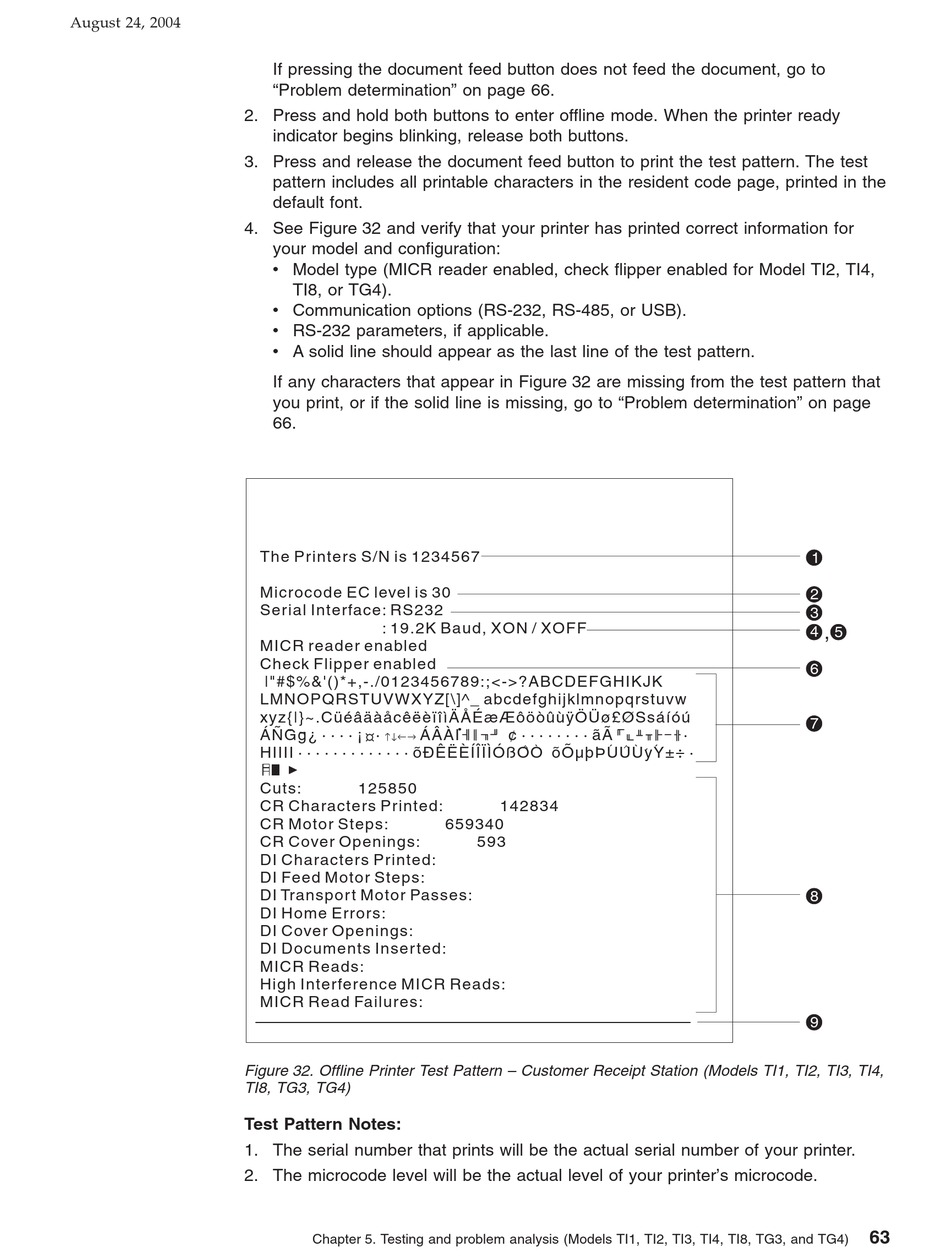

Figure 32. Offline Printer Test Pattern – Customer Receipt Station (Models TI1, TI2, TI3, TI4,
TI8, TG3, TG4)
Test Pattern Notes:
1. The serial number that prints will be the actual serial number of your printer.
2. The microcode level will be the actual level of your printer's microcode.
If pressing the document feed button does not feed the document, go to
"Problem determination" on page 66.
indicator begins blinking, release both buttons.
pattern includes all printable characters in the resident code page, printed in the
default font.
your model and configuration:
v Model type (MICR reader enabled, check flipper enabled for Model TI2, TI4,
TI8, or TG4).
v Communication options (RS-232, RS-485, or USB).
v RS-232 parameters, if applicable.
v A solid line should appear as the last line of the test pattern.
If any characters that appear in Figure 32 are missing from the test pattern that
you print, or if the solid line is missing, go to "Problem determination" on page
66.
The Printers S/N is 1234567
Microcode EC level is 30
Serial Interface: RS232
Serial Interface Serial Interface : 19.2K Baud, XON / XOFF
MICR reader enabled
Check Flipper enabled
|"#$%&'()*+,-./0123456789:;<->?ABCDEFGHIKJK
LMNOPQRSTUVWXYZ[\]^_ abcdefghijklmnopqrstuvw
xyz{|}~.CüéâäàåcêëèïîìÄÅÉæÆôöòûùÿÖÜø£ØSsáíóú
ÁÑGg¿ · · · · ¡ · · ÁÂÀ
H III · · · · · · · · · · · · · Ð I õ ÊËÈÍÎÏÌÓßOO õÕµþÞUUUyY±÷
Cuts: 125850
CR Characters Printed:
CR Motor Steps:
CR Cover Openings:
DI Characters Printed:
DI Feed Motor Steps:
DI Transpor t Motor Passes:
DI Home Errors:
DI Cover Openings:
DI Documents Inser ted:
MICR Reads:
High Interference MICR Reads:
MICR Read Failures:
Chapter 5. Testing and problem analysis (Models TI1, TI2, TI3, TI4, TI8, TG3, and TG4)
·
I ¢ · · · · · · · · ãÃ
^ ` ^
`
142834
659340
593
1
2
3
4 5
6
7
·
` ` `
·
8
9
,
63
