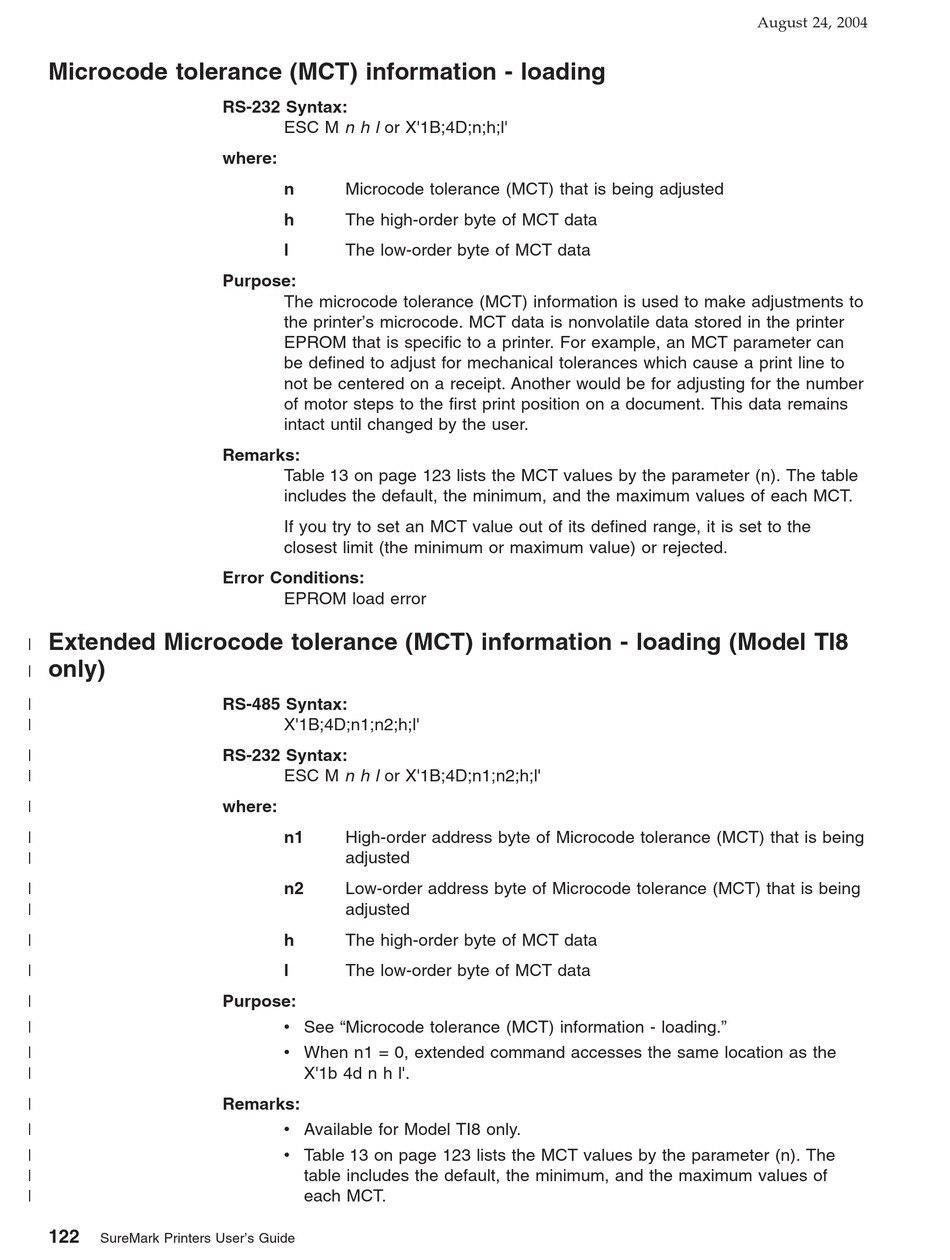

Microcode tolerance (MCT) information - loading

Extended Microcode tolerance (MCT) information - loading (Model TI8
|
only)
|
|
|
|
|
|
| |
|
| |
|
| |
| |
|
|
|
|
|
|
|
|
|
122
SureMark Printers User's Guide
RS-232 Syntax:
ESC M n h l or X'1B;4D;n;h;l'
where:
n Microcode tolerance (MCT) that is being adjusted
h The high-order byte of MCT data
l The low-order byte of MCT data
Purpose:
The microcode tolerance (MCT) information is used to make adjustments to
the printer's microcode. MCT data is nonvolatile data stored in the printer
EPROM that is specific to a printer. For example, an MCT parameter can
be defined to adjust for mechanical tolerances which cause a print line to
not be centered on a receipt. Another would be for adjusting for the number
of motor steps to the first print position on a document. This data remains
intact until changed by the user.
Remarks:
Table 13 on page 123 lists the MCT values by the parameter (n). The table
includes the default, the minimum, and the maximum values of each MCT.
If you try to set an MCT value out of its defined range, it is set to the
closest limit (the minimum or maximum value) or rejected.
Error Conditions:
EPROM load error
RS-485 Syntax:
X'1B;4D;n1;n2;h;l'
RS-232 Syntax:
ESC M n h l or X'1B;4D;n1;n2;h;l'
where:
n1 High-order address byte of Microcode tolerance (MCT) that is being
adjusted
n2 Low-order address byte of Microcode tolerance (MCT) that is being
adjusted
h The high-order byte of MCT data
l The low-order byte of MCT data
Purpose:
v See "Microcode tolerance (MCT) information - loading."
v When n1 = 0, extended command accesses the same location as the
X'1b 4d n h l'.
Remarks:
v Available for Model TI8 only.
v Table 13 on page 123 lists the MCT values by the parameter (n). The
table includes the default, the minimum, and the maximum values of
each MCT.
