August 24, 2004

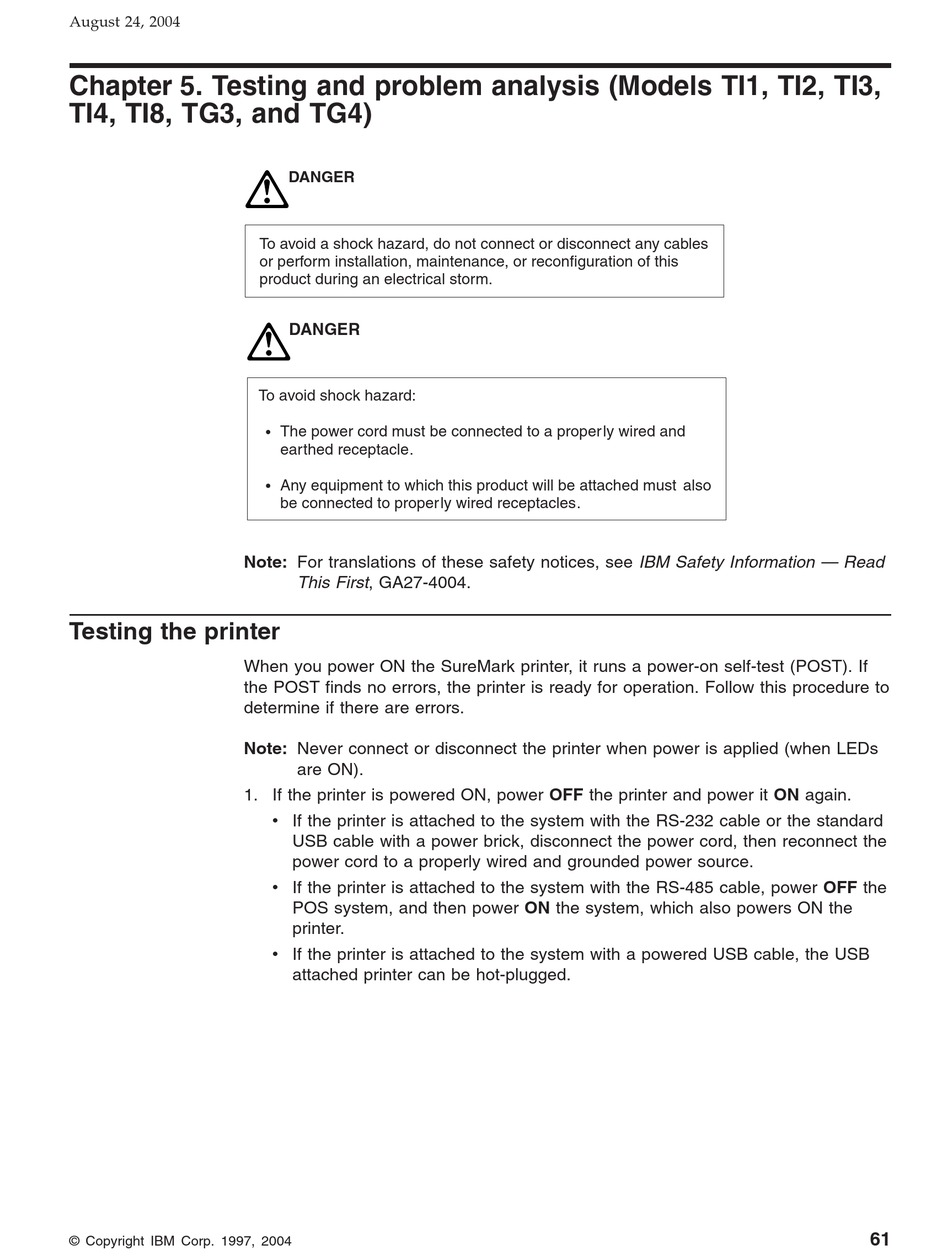

Chapter 5. Testing and problem analysis (Models TI1, TI2, TI3,
TI4, TI8, TG3, and TG4)
Note: For translations of these safety notices, see IBM Safety Information — Read

Testing the printer

When you power ON the SureMark printer, it runs a power-on self-test (POST). If
the POST finds no errors, the printer is ready for operation. Follow this procedure to
determine if there are errors.
Note: Never connect or disconnect the printer when power is applied (when LEDs
1. If the printer is powered ON, power OFF the printer and power it ON again.
© Copyright IBM Corp. 1997, 2004
DANGER
To avoid a shock hazard, do not connect or disconnect any cables
or perform installation, maintenance, or reconfiguration of this
product during an electrical storm.
DANGER
To avoid shock hazard:
The power cord must be connected to a properly wired and
earthed receptacle.
Any equipment to which this product will be attached must also
be connected to properly wired receptacles.
This First, GA27-4004.
are ON).
v If the printer is attached to the system with the RS-232 cable or the standard
USB cable with a power brick, disconnect the power cord, then reconnect the
power cord to a properly wired and grounded power source.
v If the printer is attached to the system with the RS-485 cable, power OFF the
POS system, and then power ON the system, which also powers ON the
printer.
v If the printer is attached to the system with a powered USB cable, the USB
attached printer can be hot-plugged.
61
