Replacing The Control Panel; Figure 65. Inserting Hot Swap Power Supplies Into Chassis - Intel SC5600LX - Server Chassis - Tower Service Manual

Hardware Installations and Upgrades

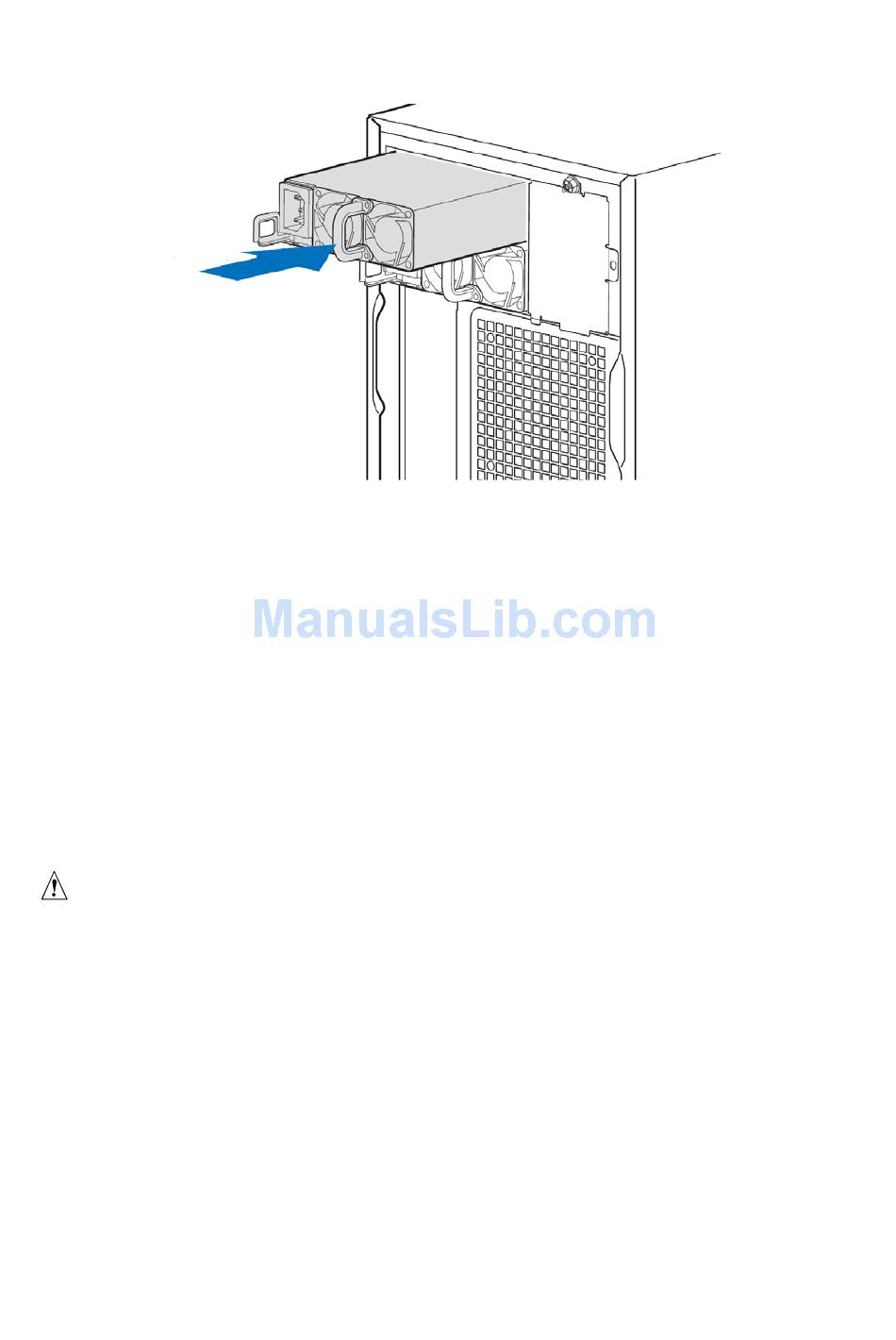

Figure 65. Inserting Hot Swap Power Supplies into Chassis

16. Re-install the air duct. For instructions, see "Installing the Air Duct."
17. Re-install the chassis cover. For instructions, see "Installing the Chassis Cover."
18. Plug all peripheral devices and the AC power cable into the server.
19. Power up the server.

Replacing the Control Panel

The steps for replacing the front control panel and the Intel
following steps for both varieties of the control panel. Where necessary, differences between the two control panels
are noted.
You must operate your server with a control panel installed.
CAUTION
The control panel is NOT hot- swappable. Before removing or replacing the control panel, you must
first take the server out of service, turn off all peripheral devices connected to the system, turn off the
system by pressing the power button, and unplug the AC power cord from the system or wall outlet.
1. Observe the safety and ESD precautions at the beginning of this book.
2. Power down the server and unplug all peripheral devices and the AC power cable.
3. Remove the chassis cover. For instructions, see "Removing the Chassis Cover."
4. If it is installed, remove the front bezel. For instructions, see "Removing and Installing the Front Bezel."
5. Press the latch at the back of the control panel.
6. Slide the control panel out through the front of the chassis far enough so you can reach the front panel
and USB cable connectors at the rear of the control panel.
54
®
Local Control Panel are nearly identical. Use the
Intel® Server Chassis SC5600 Service Guide
