Front Control Panel

A. ID LED Toggle Switch
B. Reset Button
C. NIC1 Activity LED (green)
D. Power Button
E. Hard Drive Activity LED (green)
Server
Intel®
Chassis SC5600 Service Guide
F. NIC2 Activity LED (green)
G. ID LED (blue)
H. Status LED (bi-color)
I. NMI Button

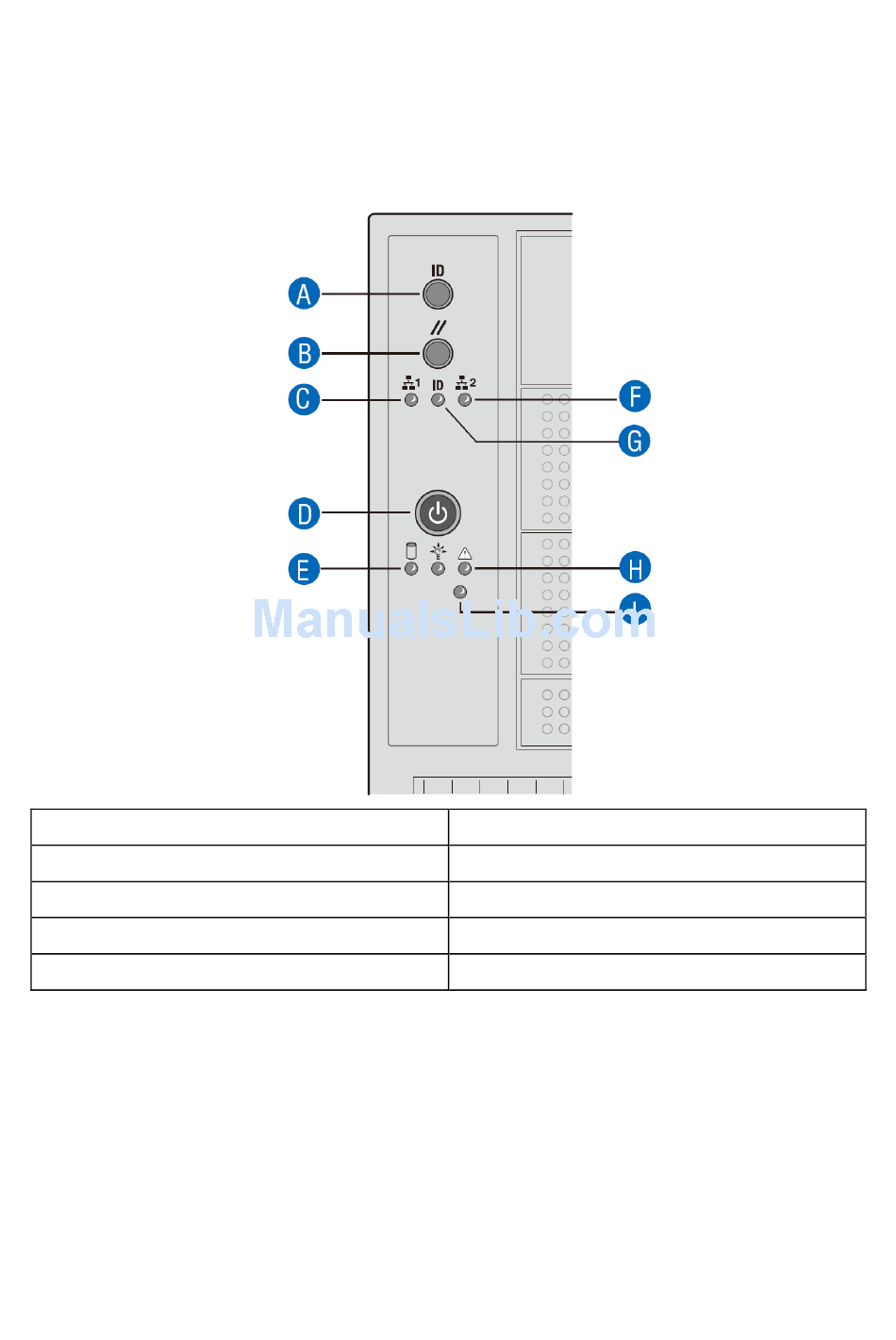

Figure 4. Front Control Panel
