3. Remove the chassis cover. For instructions, see "Removing the Chassis Cover."
4. Release the two plastic tabs (see letter "A" in the following figure) on the left side of the bezel assembly to
disengage the tabs.
5. Rotate the bezel assembly (see letter "B") no more than 40° outward.
6. At a 40° angle, push the bezel assembly away from the chassis (see letter "C").
7.
If the bezel assembly does not immediately disconnect from the chassis, tap the left- side of the bezel
assembly to disengage the bezel hooks on the right side of the chassis.

Installing the Front Bezel (Pedestal Configuration Only)

CAUTION
This step applies to a pedestal configuration chassis only. For instructions on installing a bezel in a
rack-mount configuration, refer to the Rack Conversion Kit Installation Guide: Intel
SC5400 and SC5600.
1. Open the outer bezel door of the bezel assembly (see letter "A" in the following figure).
2. Remove the filler panels that correspond to the installed devices (see letter "B").
3. Close the outer bezel door (see letter "C").
Server
Intel® Chassis SC5600 Service Guide

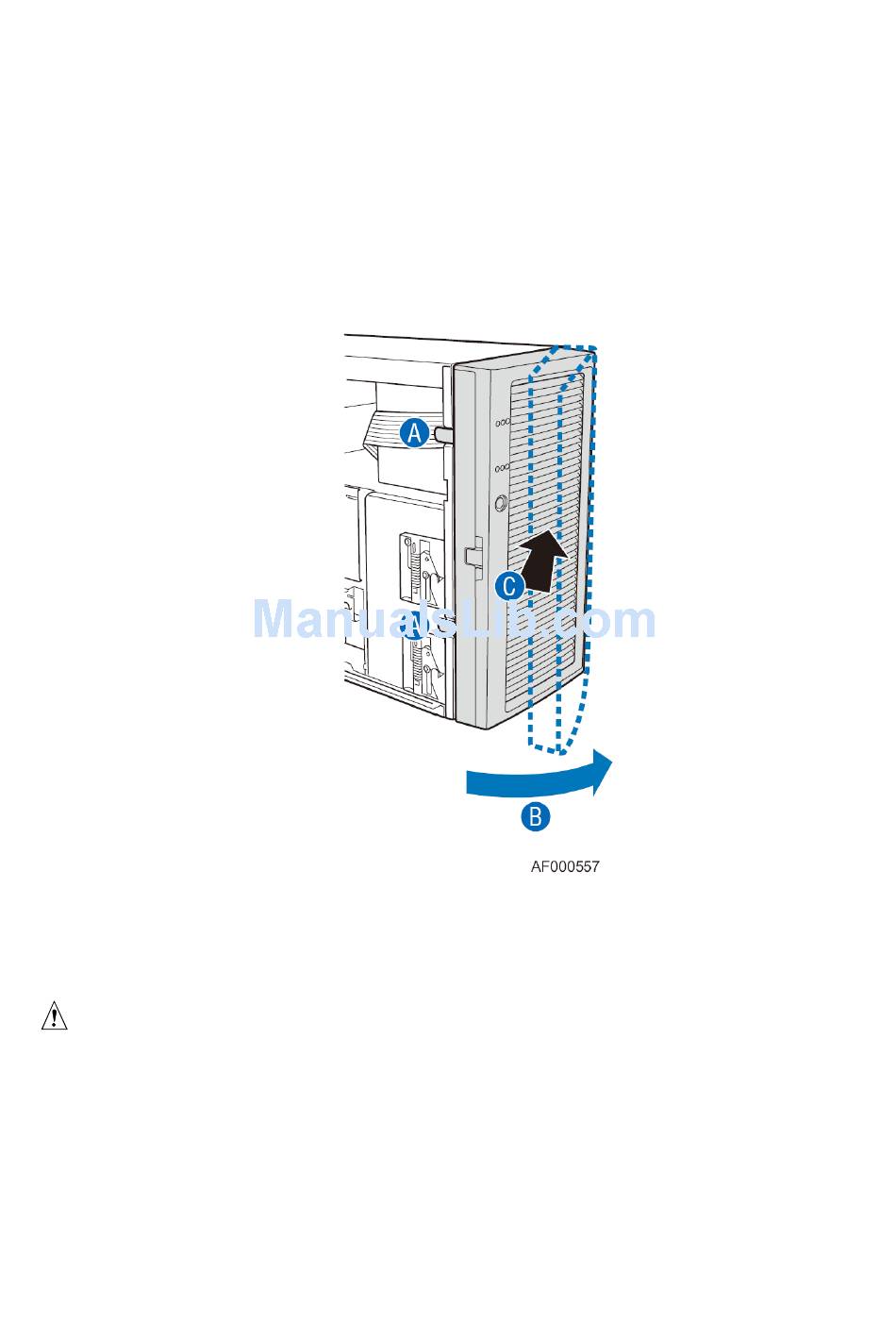

Figure 10. Removing the Front Bezel

Hardware Installations and Upgrades
®
Server Chassis
17
