Installing the Chassis Cover

1.
Slide the chassis cover on the chassis
2. Latch the cover securely to the chassis.
3. If the chassis will be re-shipped, secure the chassis cover to the chassis with the access cover screw
(see letter "A" in the following figure).

Removing and Installing the Front Bezel

Removing the Front Bezel Assembly (Pedestal Configuration
Only)
CAUTION
Do not rotate the bezel assembly more than 40° or you will damage the bezel assembly.
/
NOTE
The bezel assembly consists of two components: a front door and a sub-bezel.
1. Observe the safety and ESD precautions at the beginning of this book.
2. Power down the server and unplug all peripheral devices and the AC power cable.
16
.

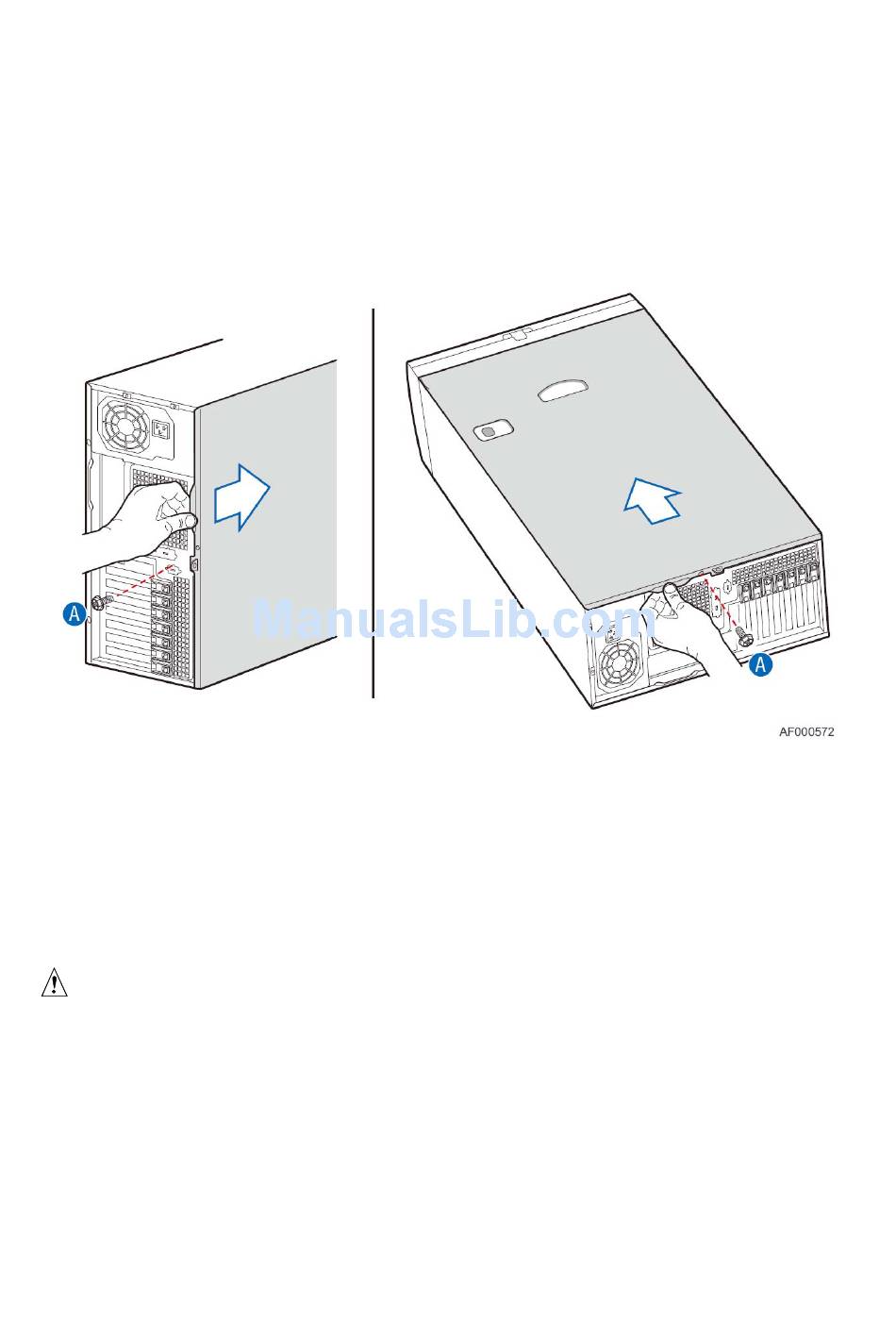

Figure 9. Installing the Chassis Cover
