Replacing A Hot Swap Power Supply; Figure 53. Removing Hot Swap Power Supply From Chassis; Figure 54. Installing Hot Swap Power Supply Into Chassis - Intel SC5600LX - Server Chassis - Tower Service Manual

Hardware Installations and Upgrades

Replacing a Hot Swap Power Supply

WARNING
Hazardous voltage, current, and energy levels are present inside the power supply. There are no
user-serviceable parts inside it; servicing should be done by technically qualified personnel only.
1. Remove the power cable from the defective hot swap power supply.
2. Press on the green latch on the power supply (see letter "A" in Figure 53) while pulling on the handle (see
letter "B" in Figure 53) to remove the power supply from the chassis.

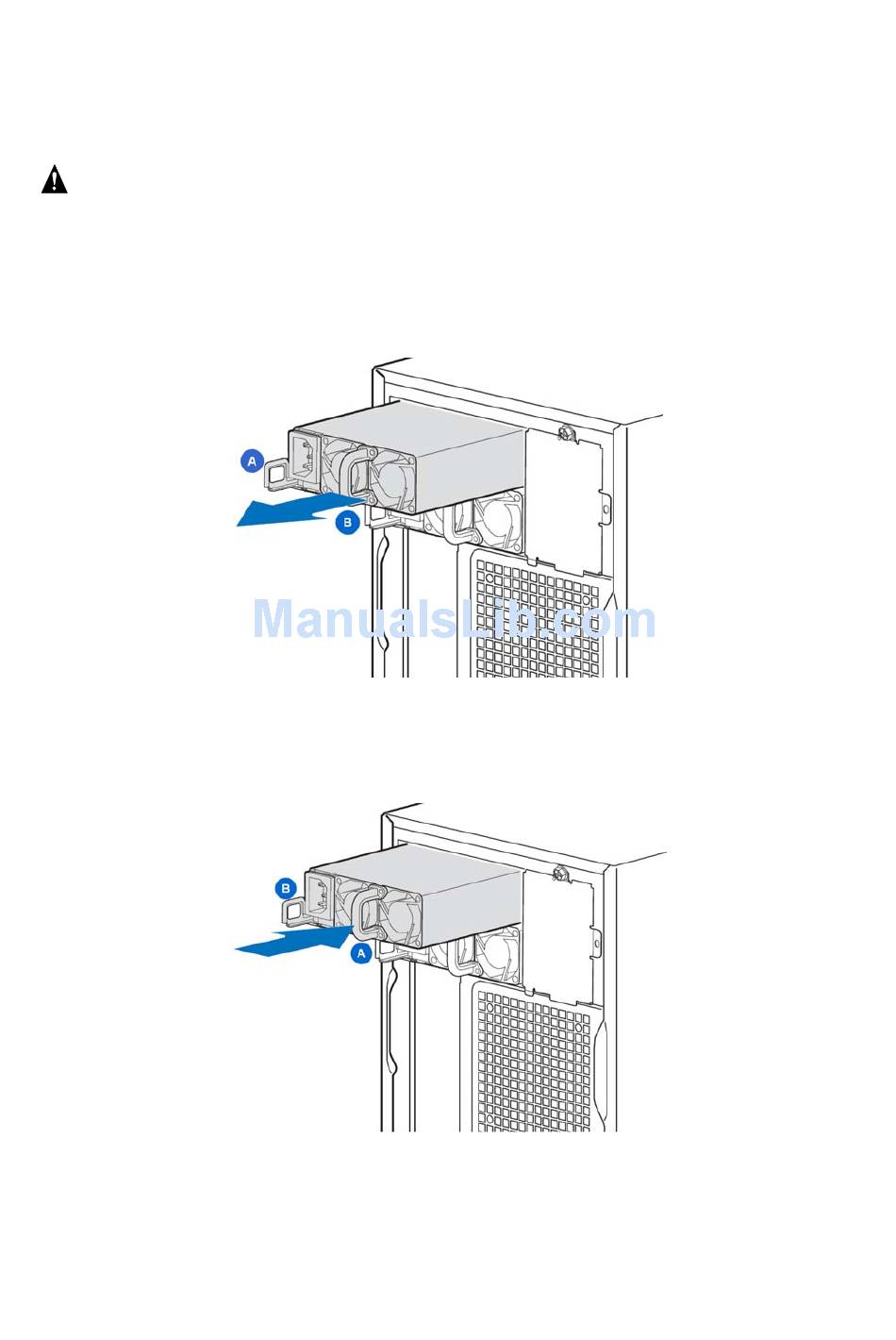

Figure 53. Removing Hot Swap Power Supply from Chassis

3. Push the handle (see letter "A" in Figure 54) to insert the new hot swap power supply into the chassis, and
make sure the green latch (see letter "B" in Figure 54) secures the hot swap power supply to the power
supply cage.

Figure 54. Installing Hot Swap Power Supply into Chassis

4. Connect the power cable to the replaced power supply.
