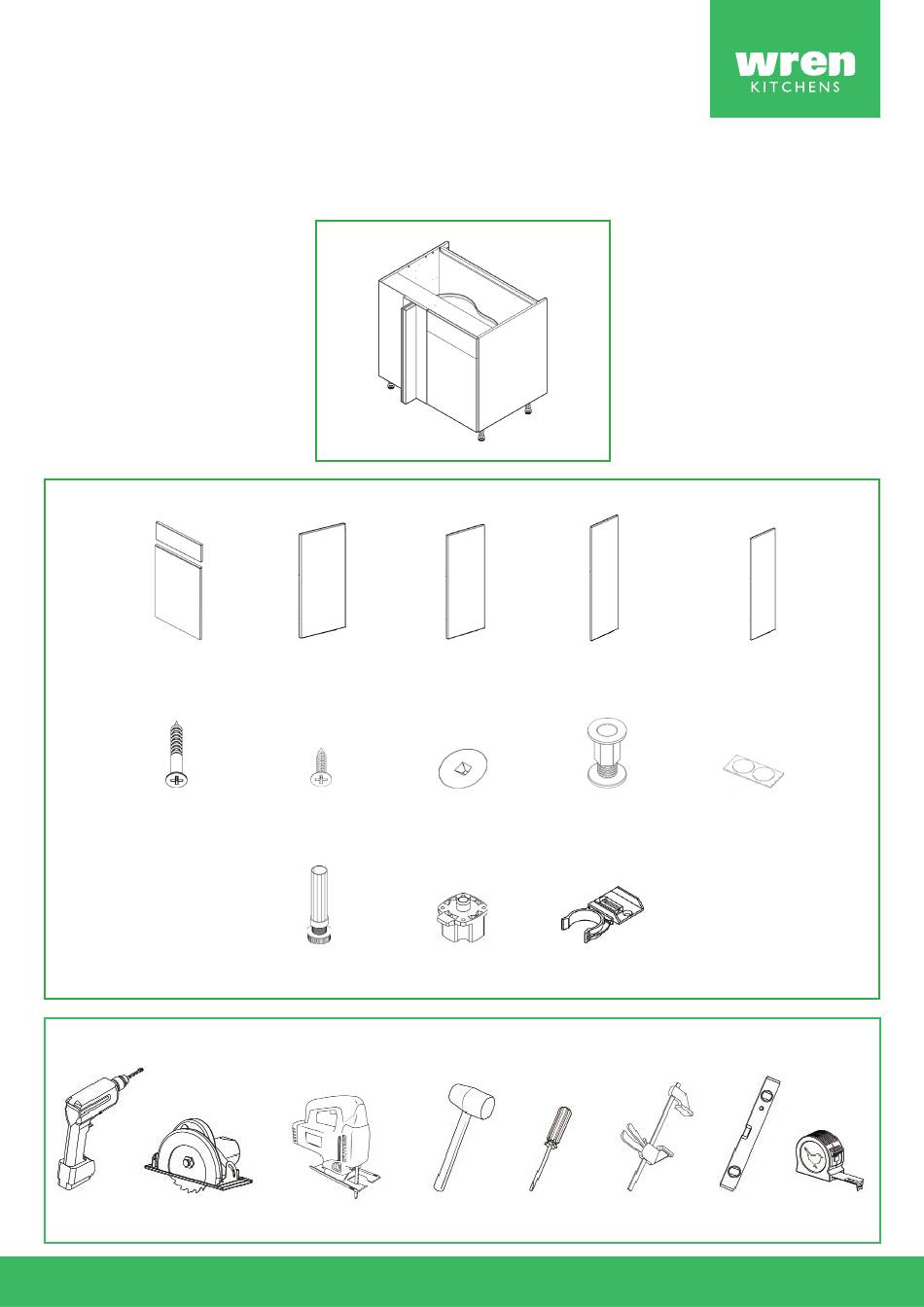

I N F I N I T Y
Base Unit
800 - 1000 Corner Base with LeMans (Door, Non-Open Drawer, Open Top, 5
Legs) - Fitting Guide
Unit Parts
2x
Frontals
16x 30mm
Screws
Tools Required
Drill
Circular
Saw
1x
Corner post
Blanking Panel
30x 15mm
16x
Screws
Cover Caps
5x
Legs
Leg Brackets
Jigsaw
Mallet
1x
1x
Packer Y1
2x
Space Plugs
5x
2x
Plinth Clips
Screwdriver
Clamp
1x
Packer Z1
5x
Door Buffers
Spirit
Tape
Level
Measure
Page 1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Wren Kitchens INFINITY Base Unit
Summary of Contents for Wren Kitchens INFINITY Base Unit
- Page 1 I N F I N I T Y Base Unit 800 - 1000 Corner Base with LeMans (Door, Non-Open Drawer, Open Top, 5 Legs) - Fitting Guide Unit Parts Frontals Corner post Blanking Panel Packer Y1 Packer Z1 16x 30mm 30x 15mm Screws Screws...
- Page 2 Remember to take care when unpacking. Please keep your workspace clean, clear and tidy when working. This will help keep all items safe from any damages. Any un-needed cardboard or plastic should be flattened down and placed in the bin. A minimum of two people will be needed to lift the unit.
- Page 3 Positioning the leg brackets Locate the leg brackets and position, as shown in the diagram. Ensure the leg brackets are rotated so the flange covers the outer edge, as this provides support for the edge of the unit. Fixing the leg bases Secure each of the leg brackets into place with 4x15mm screws per bracket.
- Page 4 Drilling holes into Packer Z1 Lightly mark the center of Packer Z1 and drill four holes along the line, ensuring the screws are equally spaced. Mark the top and bottom of Packer Z1 30mm in from the sides. Drilling the pilot holes for the packer fixing Packer Z1 should be positioned closely to the centre post and in line with the front edge of the unit.
- Page 5 Attaching the packer to the unit Place the packer back into position. Screw through the unit using 4x30mm screws, 2 in the top and 2 in the bottom using the pilot holes to attach the packer piece. Lifting the unit into place When lifting the unit into place do not tilt as this can damage the legs.
- Page 6 Sliding the unit into place When sliding the unit into place do not tilt as this can damage the legs. Place the unit against the wall and align it with the wall markings that will have been drawn during the room preparation stage. Use a spirit level to ensure the unit is level from front to back, left to right, and diagonally.
- Page 7 Measuring the corner post Clamp the corner post panel into place by positioning it 18mm behind the centre post. Measure the gap between the corner post panel and side of the adjacent unit. Take measurements from the top, middle and bottom.
- Page 8 Marking the position of Panel Y onto Panel Re-position panel Z and clamp into place, 18mm back from the edge of the centre post. Hold panel Y against the adjacent unit as shown in diagram. Mark the front and rear of panel Y onto panel Z using a pencil to determine the position for attaching the two panels.
- Page 9 Attaching the packer Secure Packer Y1 to the back of Panel Y using 3x30mm screws, ensuring the screws are equally spaced and both pieces align. View from above corner post. Fixing the corner post to the unit Move the adjacent base unit away from the corner unit.
- Page 10 Position the blanking panel with its white side facing the unit Fixing the blanking panel Position 7x15mm screws 9mm from the edges of the blanking panel to secure it into the unit end panel, top rail, and bottom fixed shelf, ensuring the screws are evenly spaced. No screws or wall plugs are provided for attaching the unit to the wall.
- Page 11 Inserting the space plugs Position the space plugs between the wall and the back of the unit, where the holes are located. Unwind until the space plugs touch both the back panel of the unit and the wall. Insert the screws into the drilled holes and tighten to the wall.
- Page 12 Securing to adjacent units Clamp together the two units, checking the front edges are level and flush. Using the screws provided, 1x30mm screw should be fixed into each corner of the carcase side. The screws can be concealed by placing them behind the shelf or behind the hinge plates.
- Page 13 Adding the door buffers Position 1x door buffer at the top and bottom corners of the unit, as illustrated in the image. Removing the hinge cover cap Use a flathead screwdriver to remove the hinge cover cap by inserting it into the slot of the cover cap and twisting.
- Page 14 Cleaning the unit Finally, the unit should be thoroughly cleaned to remove any debris that may have accumulated during the installation. Store the plinth clips and the remaining 15mm screws. These will be used later when attaching the plinth. Store the L-brackets. These will be used later when installing the worktop (laminate or timber).
