I N F I N I T Y / I N F I N I T Y P L U S
Tower Unit
Easy Pull Out (2 Door, 1 or 2 Shelves, Solid Top, 4 Legs) - Fitting Guide
2070
2260
70/30 & 50/50 Door
70/30 & 50/50 Door

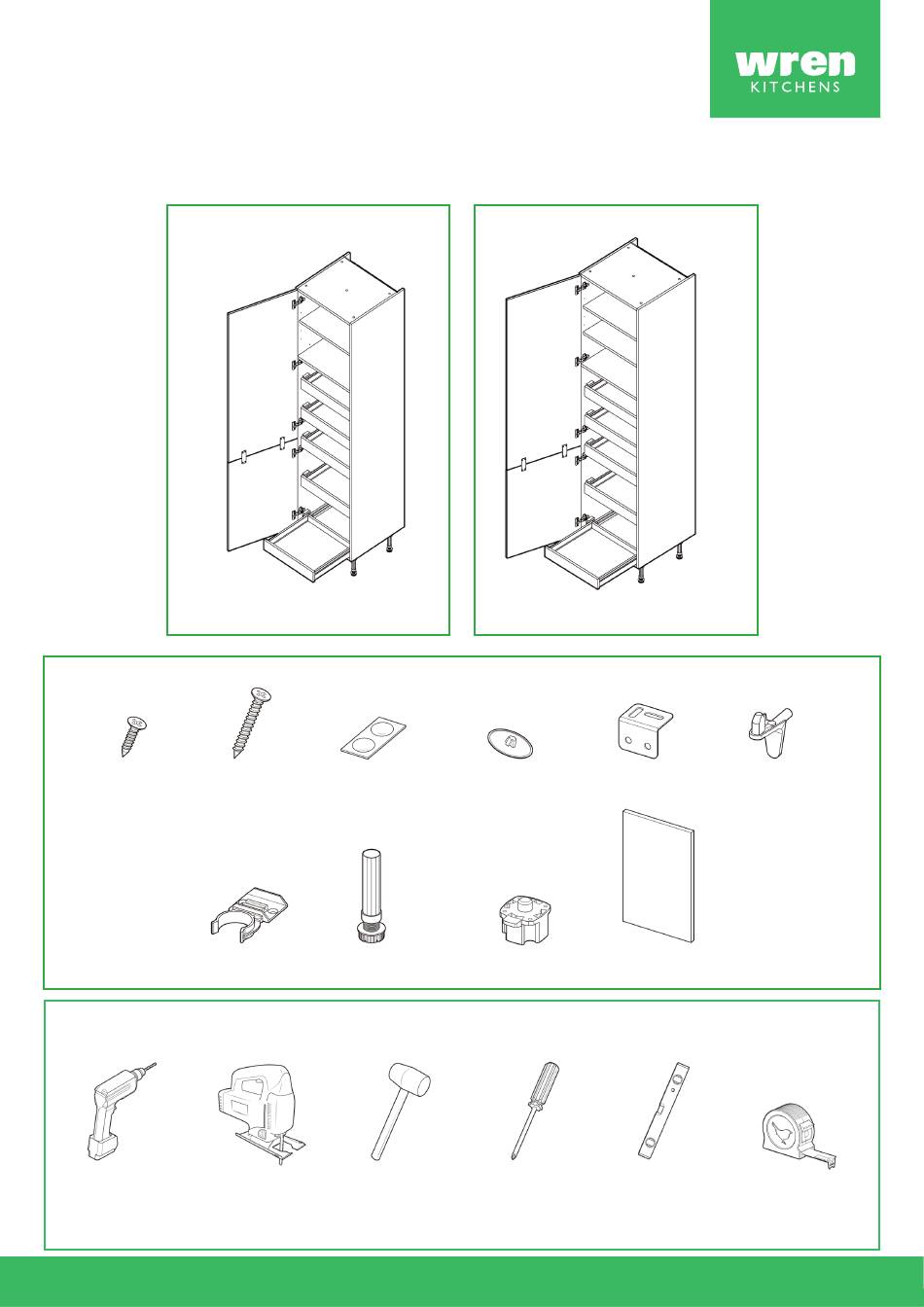

Unit Parts
30x 15mm
6X 30mm
2x
18x
2x
4x
Screws
screws
Door Buffers
Cover Caps
L Brackets
Shelf Pegs
2x
4x
4x
Shelves
Plinth Clips
Legs
Leg Brackets
Tools Required
Drill
Jigsaw
Mallet
Screwdriver
Spirit Level
Tape Measure
Page 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the INFINITY and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Wren Kitchens INFINITY

Summary of Contents for Wren Kitchens INFINITY

  • Page 1 I N F I N I T Y / I N F I N I T Y P L U S Tower Unit Easy Pull Out (2 Door, 1 or 2 Shelves, Solid Top, 4 Legs) - Fitting Guide 2070 2260 70/30 &...
  • Page 2 Remember to take care when unpacking. Please keep your workspace clean, clear and tidy when working. This will help keep all items safe from any damages. Any waste cardboard or plastic should be flattened down and placed in the bin. A minimum of two people will be needed to lift the unit.
  • Page 3 Positioning the leg brackets Locate the leg brackets and position, as shown in the diagram. Ensure the leg brackets are rotated so the flange covers the outer edge, as this provides support for the edge of the unit. Fixing the leg bases Secure each of the leg brackets into place with 4x15mm screws per bracket.
  • Page 4 Securing the L-bracket Secure each of the L-brackets to the top rear of the unit using 2x15mm screws at each side. Notching out the side panels (when required) In order to allow for any horizontal pipework running behind the unit, some units will require the back of the unit sides to be notched out.
  • Page 5 No screws are provided for attaching the unit to the wall. This is due to variations in wall construction. Before drilling into the wall you MUST check for any hidden services or pipework within the walls. Attaching the tower unit to the wall Fix the unit to the wall through the L-brackets as shown in the image (these fixings are not provided).
  • Page 6 Inserting the drawers Slide the drawer onto the runners, make sure the runner mechanism and the drawer sides’ groove line up. Push the drawer back into the unit. After it has been positioned on the runners; you should hear a click. Adjusting the drawer frontal horizontally Use the fixing clips, which are found under the drawer’s front, to adjust the drawers.
  • Page 7 Adjusting the drawer frontal height To adjust the height of the frontal, use a screwdriver to loosen the screws on both sides of the inside of the drawer box. Adjust the frontal height, then re tighten the screws to lock. Push the supplied cover caps onto the adjustment screw heads.
  • Page 8 For door alignment please review the following installation guide: Door - Door Frontal Hinge Adjustment Cleaning the unit Finally, the unit should be thoroughly cleaned to remove any debris that may have accumulated during the installation. Store the plinth clips and the remaining 15mm screws. These will be used later when attaching the plinth.
