BASE UNIT

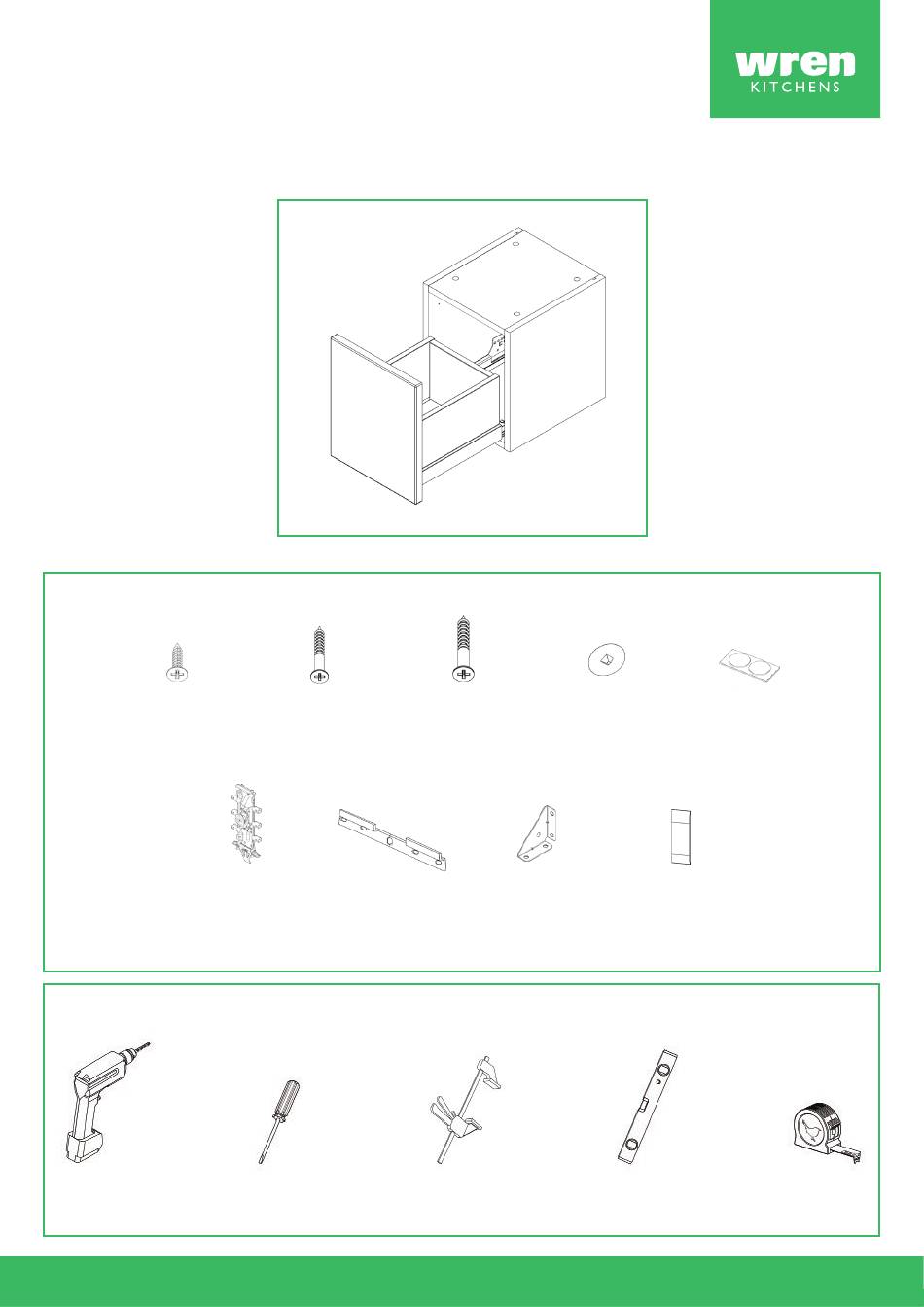

300 - 1000 1 Drawer Shallow Base Unit (Drawer, Solid Top) Fitting Guide
Unit Parts
8x
15mm Screws
Wall Hanging
Brackets
Tools Required
Drill
4x
20mm Screws
2x
1x
Wall Hanging
Plate Snap
Off (x2)
Screwdriver
6x
30mm Screws
Cover Caps
2x
Corner Gusset
Plates
Clamp
12x
2x
Drawer Buffers
2x
Hanging Bracket
Cover Caps
Spirit Level
Tape Measure
Page 1
Advertisement
Related Manuals for Wren Kitchens Infinity BASE UNIT
Summary of Contents for Wren Kitchens Infinity BASE UNIT
- Page 1 BASE UNIT 300 - 1000 1 Drawer Shallow Base Unit (Drawer, Solid Top) Fitting Guide Unit Parts 15mm Screws 20mm Screws 30mm Screws Cover Caps Drawer Buffers Wall Hanging Wall Hanging Corner Gusset Hanging Bracket Brackets Plate Snap Plates Cover Caps Off (x2) Tools Required Drill...
- Page 2 Remember to take care when unpacking. Please keep your workspace clean, clear and tidy when working. This will help keep all items safe from any damage. Any un-needed cardboard or plastic should be flattened down and placed in the bin. A minimum of two people will be needed to lift the unit.
- Page 3 Installing the wall hanging bracket Insert the hanging bracket into pre-drilled holes. Rotate the locking lever down 180 degrees. Secure with provided 2x20mm screws per bracket. Page 3...
- Page 4 Installing the corner gussets Secure the corner gussets to both the bottom corners of the wall unit using 4x15mm screws per gusset. Creating the pilot holes Drill small pilot hole through the back panel of the unit through the gusset. Page 4...
- Page 5 Finding the fixing point for the wall brackets The fixing point for the wall hanging brackets are 125mm below the top of the units. Draw a line on the wall 125mm below the top line of the unit (Already marked). Draw a vertical line 20mm inside either side of the pre marked wall unit positions.
- Page 6 No screws or wall plugs are provided for attaching the unit to the wall. This is due to variations in wall construction. Before drilling into the wall you MUST check for any hidden services or pipework within the walls. Attaching the wall hanging bracket to the wall Position the 2x hanging brackets as shown and mark the holes onto the wall.
- Page 7 Adjusting the wall brackets Using the points below to adjust the unit to suit. Place the cover cap once adjustment has taken place. A- Rotate the screw clockwise to move the unit up. Anti-clockwise for down. B- Adjust the depth using centre screw. C- Screw the red screw until it touches the plate to lock in position.
- Page 8 Securing to adjacent units Clamp together the two units, checking the front edges are level and flush. Using the screws provided, 1x30mm screw should be fixed into each corner of the unit side. The screws can be concealed by placing them behind the shelf or behind the hinge plates.
- Page 9 Removing the drawer cover caps (Infinity) Place a flathead screwdriver in the small groove between the cover cap and the drawer side and carefully twist. Keep the cap in a safe place until it is needed again. Adjusting the frontal (Infinity) Adjust the frontal to suit, as shown in the image.
- Page 10 Adjusting the frontal horizontally (Infinity Plus) Use the fixing clips, which are found under the drawer’s front, to adjust the drawers. Step 1 - Press the fixing clips half way to meet the runners on the underside of the drawer. Step 2 - Slide the drawer to the left or right to adjust.
- Page 11 Cleaning the unit Finally, the unit should be thoroughly cleaned to remove any debris that may have accumulated during the installation. Store the L-brackets. These will be used later when installing the countertop (laminate or timber). Page 11...
