Summary of Contents for Wren Kitchens Industrial Island

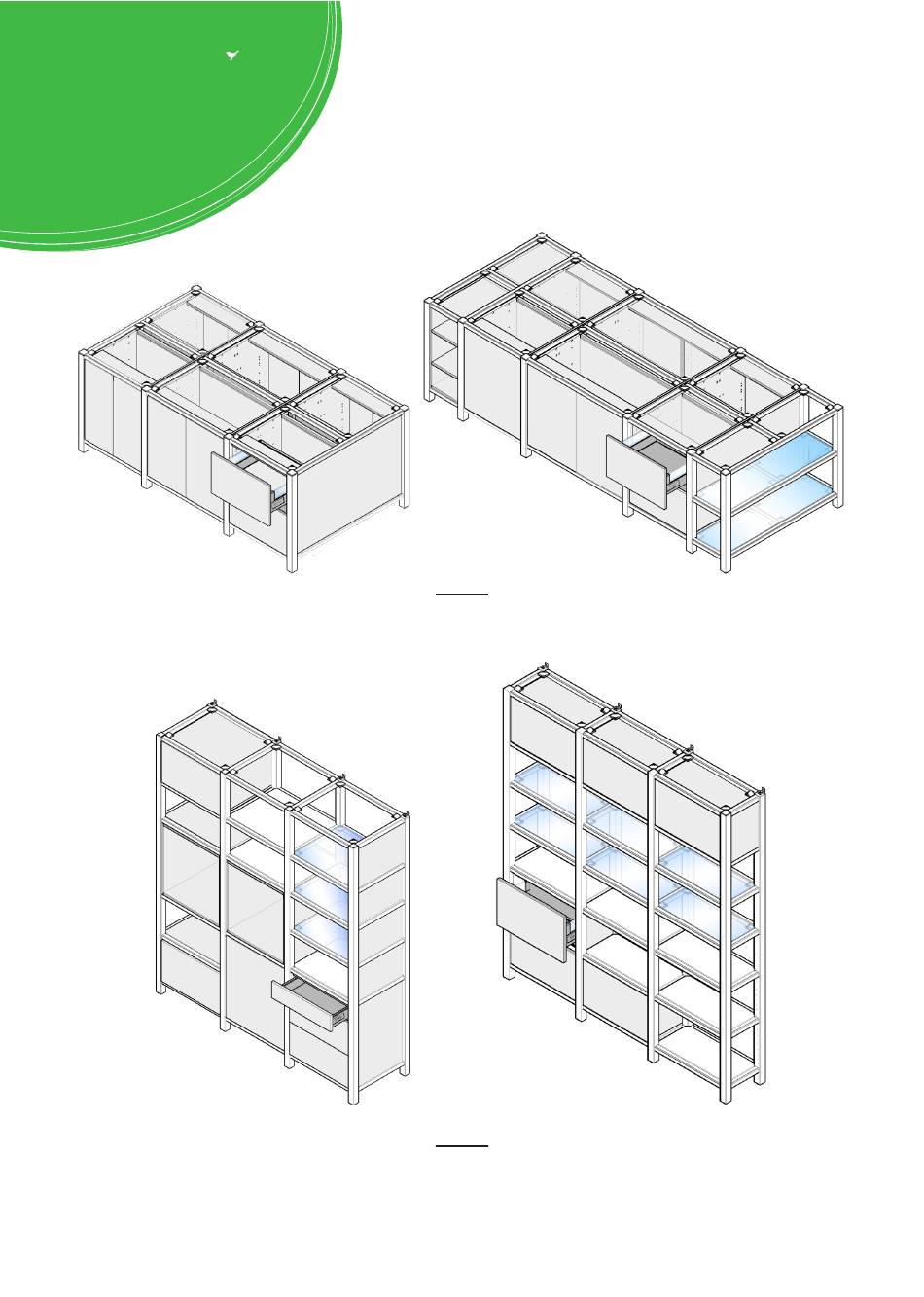

- Page 1 INDUSTRIAL Assembly Guide Island Sample arrangements cabinets sold seperately Tower For Internal Use: FI.WR.INS.095_WKIN00243_IndUnit_Assembly_Rev1.indd...
-
Page 2: Assembly Guide
INDUSTRIAL Assembly Guide INSTALLATION SHOULD BE PERFORMED BY A COMPETENT PERSON ONLY. THIS PRODUCT COULD BE DANGEROUS IF INCORRECTLY INSTALLED. PRIOR TO INSTALLATION, FIXTURES INCLUDING DOORS, DRAWERS, LOOSE SHELVES & LEGS SHOULD BE REMOVED TO ENSURE A SAFE INSTALLATION. WREN RECOMMENDS USING DOORSAFE FOR TEMPORARY STORAGE. - Page 3 INDUSTRIAL TOWER Assembly Guide End Components Extension Components Detail A Detail B Extension Frame Shelving End Frame Shelving (330, 570) (330, 570) Legs Legs Configuration may vary in accordance to specific customer kitchen plan cabinets Included seperately 16mm 30mm 35mm Bolt 16mm Bolt Wall Securing Screw...
- Page 4 INDUSTRIAL Tower Frame Assembly TOWER Step 1. Using 4 x 35mm Bolt & Washer attach End Frame Shelf as shown, to secure to End or Internal Legs, where applicable. Assembly Guide Adjust leg height per frame by twisting to suit. For Shelf Positions see Specific Customer Kitchen Plan.
-
Page 5: Tower Assembly
INDUSTRIAL Tower Assembly TOWER See Customer Specific Order for requirements. Please ensure steps are Assembly Guide followed for a safe installation. Step 4. Securing Metal Frame to Wall To secure tower frames, use the provided brackets to secure to wall. Secure bracket to top frame shelf at both sides using 16mm Bolt &... -
Page 6: Internal Components
INDUSTRIAL ISLAND Assembly Guide End Components: Detail A (1215) (975) (645) 300-1000 300-1000 300-1000 Legs End Frame Shelving Internal Components: Detail B (1215) (975) (645) Unit Spacers 600-1000 600-1000 600-1000 Legs Internal Frame Shelving Configuration may vary in accordance to specific customer kitchen plan cabinets sold seperately 35mm Bolt 16mm Bolt... - Page 7 INDUSTRIAL Island Frame Assembly ISLAND Step 1. Assembly Guide Using 4 x 35mm Bolt & Washer attach End Frame Shelf as shown, to secure to End or Internal Legs, where applicable. Adjust leg height per frame by twisting to suit. For Shelf Positions see Specific Customer Kitchen Plan.
- Page 8 INDUSTRIAL Island Assembly ISLAND See customer specific order for requirements. Assembly Guide Please ensure steps are followed for a safe installation. Step 3. Worktop Installation To secure worktop, screw up through connecting plates into your worktop to secure it in place. Screws for attaching to worktop are not provided as these vary depending on materials, thickness and construction.
