Wren Kitchens INFINITY PLUS MILANO Base Unit Fittings Manual

1000mm, 2 door downdraft unit door, solid top
Hide thumbs Also See for INFINITY PLUS MILANO Base Unit:

Advertisement

Quick Links

I N F I N I T Y P L U S M I L A N O
Base Unit
Page
1000mm, 2 Door Downdraft Unit
1
Page
1000mm, 2 Door Downdraft 182mm Unit
13

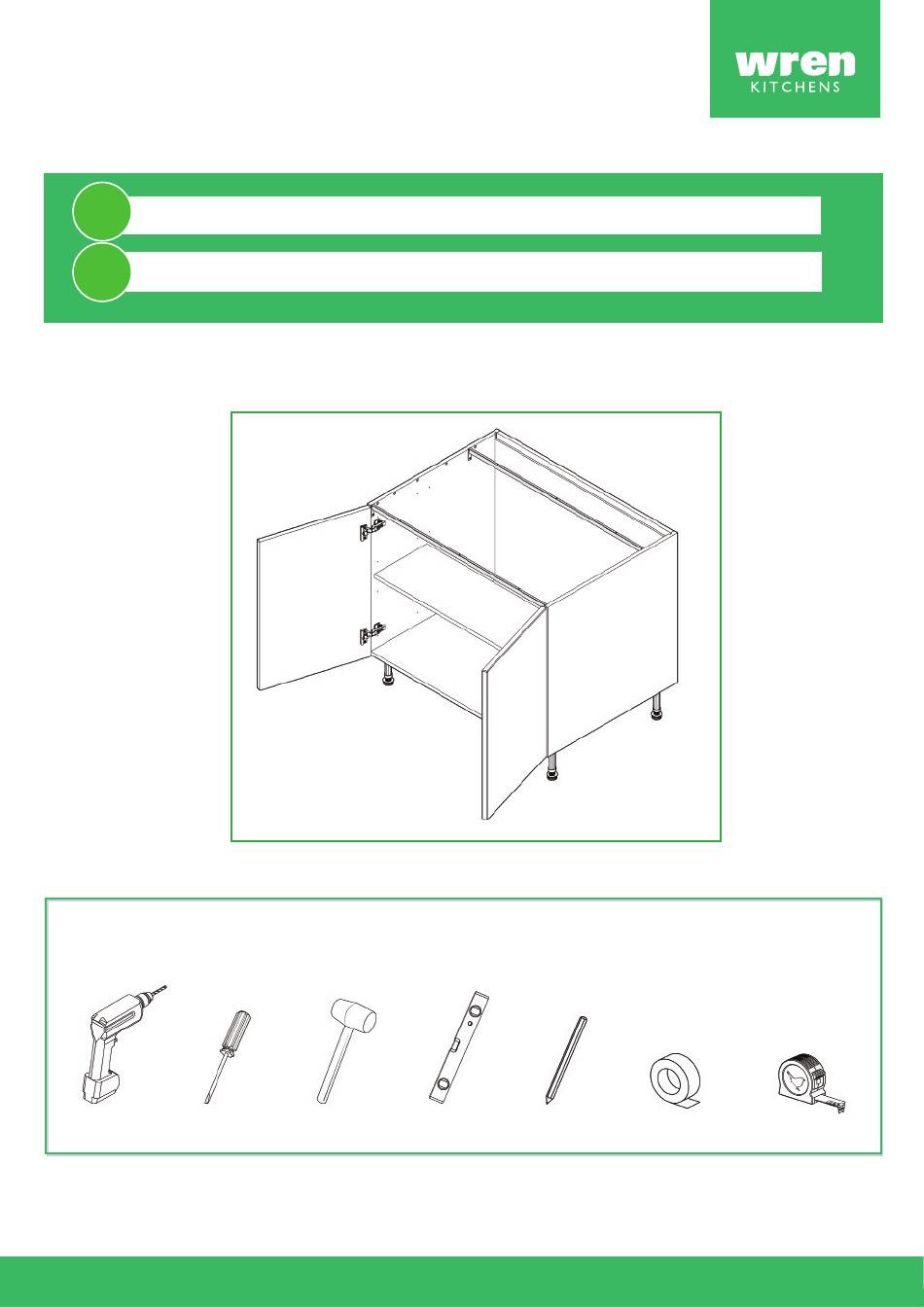

1000mm, 2 Door Downdraft Unit (Door, Solid Top) - Fitting Guide (Flatpack)
Tools Required
Drill
Screwdriver
Mallet
Spirit Level
Pencil
Making Tape
Tape Measure
Page 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the INFINITY PLUS MILANO Base Unit and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Wren Kitchens INFINITY PLUS MILANO Base Unit

  • Page 1 I N F I N I T Y P L U S M I L A N O Base Unit Page 1000mm, 2 Door Downdraft Unit Page 1000mm, 2 Door Downdraft 182mm Unit 1000mm, 2 Door Downdraft Unit (Door, Solid Top) - Fitting Guide (Flatpack) Tools Required Drill Screwdriver...
  • Page 2 Unit Parts SIde Panel Shelf Back Metal Frontals Base Back Rail Rail Panel Panel Legs Plinth Hinge Mounting Hinges Base Clips Plates 28x15mm 8x30mm Door Buffers Screws Screws Cover Caps Shelf Pegs Wooden L-Brackets Dowels Lock Dowels Page 2...
  • Page 3 Page 3...
  • Page 4 Remember to take care when unpacking. Please keep your workspace clean, clear and tidy when working. This will help keep all items safe from any damages. Any un-needed cardboard or plastic should be flattened down and placed in the bin. Unpacking the parts and fittings Remove all content from the packaging and ensure to familiarise yourself with all unit...
  • Page 5 Positioning the cam dowels Place the 6x cam dowels in the holes shown, pressing them in by hand. Inserting the metal rail Insert the metal front rail into the hole shown in the diagram. If you are fitting a hob with a seperate downdraft extractor, fit the additional metal rail near the back of the unit in the hole shown on the diagram...
  • Page 6 Attaching the base panel Fit the base panel onto the left side panel, ensuring the holes for the legs are on the outside. Attaching the back rail Fit the top rail onto the left side panel. Placing the side panel into position Place the right side panel onto the unit, taking care to align the cam and dowel holes and the metal rail.
  • Page 7 Tightening the cam locks All the cam locks should be manually tightened using a flathead screwdriver, the cam locks will tighten around the cam dowels. Securing the metal rails Using a drill, secure the metal rails in place with 2x15mm screws. Marking the unit Place a strip of masking tape on the bottom of the back panel.
  • Page 8 Positioning the leg bases Mark a straight line on the underside of the unit 40mm from the front edge. Position two front leg bases using this line as shown. Ensure that the centre points of the leg bases are approx 55mm from the sides of the unit.
  • Page 9 Inserting the legs Push each leg firmly down into the leg bracket. Adjusting each leg to 165mm. Adjust the legs to the correct height by turning clockwise or anti-clockwise. Lifting the unit into place When lifting the unit into place do not tilt as this can damage the legs.
  • Page 10 Before attaching the units together, ensure that the milano profile cutouts of both units align. Securing to adjacent units Clamp together the two units, checking the front edges are level and flush. Using the screws provided, 1x30mm screw should be fixed into each corner of the unit side.
  • Page 11 Attaching the frontal The frontal should be attached to the unit by clipping the hinges onto the hinge plates. The bar of the hinge needs to be positioned into the hooks on the hinge plate. Then the rear of the hinge pushed to the hinge plate until it clicks.
  • Page 12 Adjusting the soft close Fit the hinge cover caps to the hinges by pressing down to secure. Adjust the soft-close to suit (if required). The soft-close is adjusted by turning the screw at the top of the hinge clockwise or anti-clockwise.
  • Page 13 I N F I N I T Y P L U S Base Unit 1000mm, 2 Door Downdraft 182mm Unit (Door, Solid Top) - Fitting Guide (Flatpack) Tools Required Tape Measure Mallet Set Square Spirit Level Screwdriver Drill Page 13...
  • Page 14 Unit Parts Side Panel Shelves Rails Frontals Back Panel Legs Leg Brackets Plinth Clips Hinge Mounting Hinge Plates 20x15mm 4x30mm 36x45mm Cover Caps Door Countsunk Countsunk Countsunk Buffers Screws Screws Screws Page 14...
  • Page 15 Page 15...
  • Page 16 Remember to take care when unpacking. Please keep your workspace clean, clear and tidy when working. This will help keep all items safe from any damages. Any un-needed cardboard or plastic should be flattened down and placed in the bin. Unpacking the parts and fittings Remove all content from the packaging and ensure to familiarise yourself with all unit...
  • Page 17 If you have a white or pebble carcase, the grey panel is the top of the unit. The legs are to be installed in the white base panel. Positioning the leg bases Mark a straight line on the underside of the unit 40mm from the front edge.
  • Page 18 Inserting the legs Push each leg firmly down into the leg bracket. Adjusting each leg to 165mm. Adjust the legs to the correct height by turning clockwise or anti-clockwise. Lifting the unit into place When lifting the unit into place do not tilt as this can damage the legs.
  • Page 19 Before attaching the units together, ensure that the milano profile cutouts of both units align. Securing to adjacent units Clamp together the two units, checking the front edges are level and flush. Using the screws provided, 1x30mm screw should be fixed into each corner of the carcase side.
  • Page 20 Adjusting the hinge To adjust the hinges, use a screwdriver as required at points 1 and 2. Point 1 -Will adjust the frontals left and right. Point 2 - Will adjust the frontals in and out. To move the hinges up or down, loosen the screws A and B.
