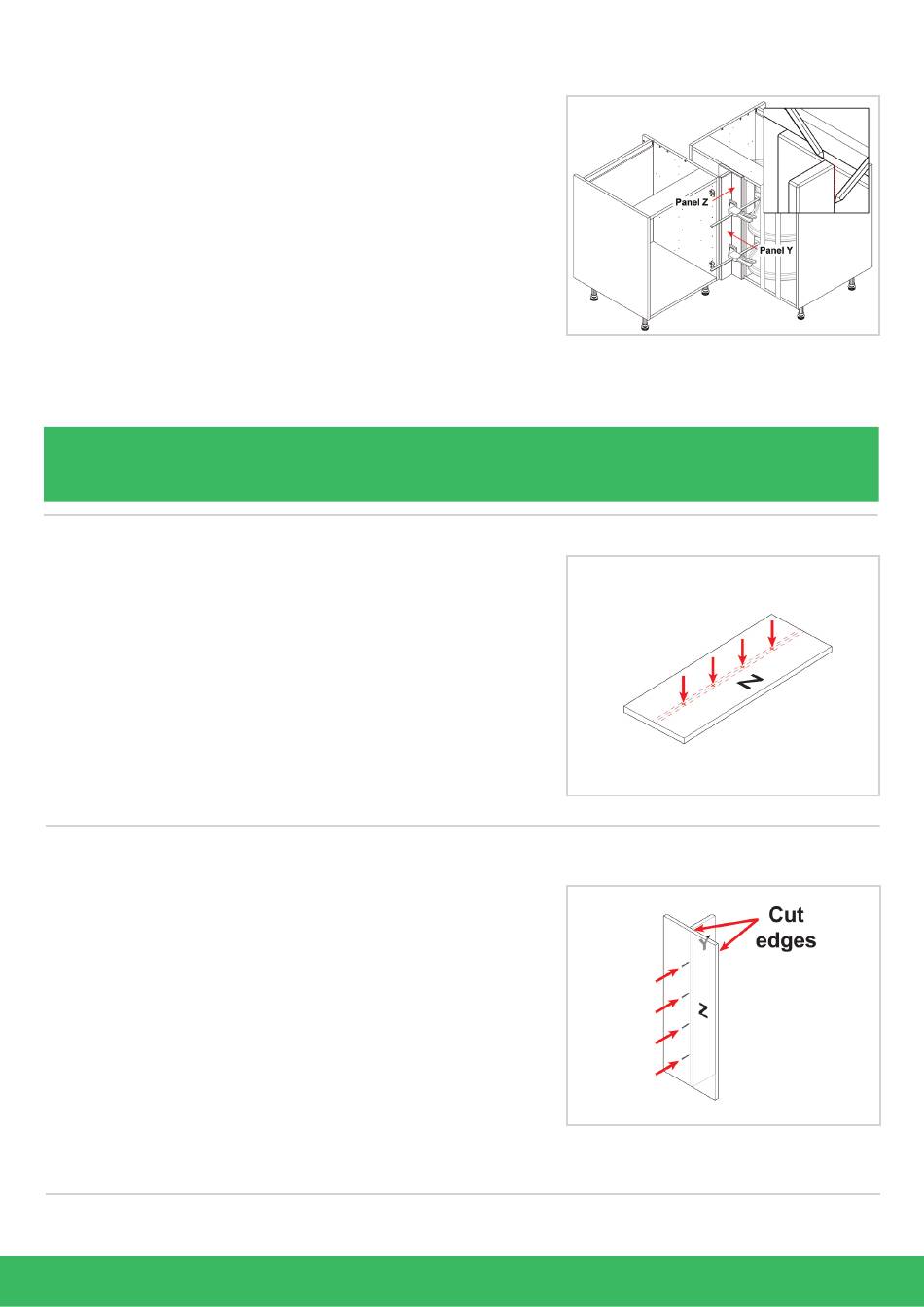

Marking the position of Panel Y onto Panel
Z
Re-position panel Z and clamp into place,
18mm back from the edge of the centre post.
Hold panel Y against the adjacent unit as
shown in diagram.
Mark the front and rear of panel Y onto panel
Z using a pencil to determine the position for
attaching the two panels.
Then remove both panels from the units.
You can make your markings more visible by drawing them onto masking tape.
Marking Panel Z
Continue the markings down the full length
of panel Z. Next, lightly draw a line in the
middle of the two pencil markings
Drill four holes down the centre line, ensuring
they are equally spaced.
Creating the corner post
Attach Panel Y to Panel Z to create a corner
post, using a clamp to secure the pieces
together.
To secure the panels, insert 4x30mm screws
in the pilot holes, through the back of Panel Z
Image from
and into the cut edge of panel Y.
back of panel
Z
