I N F I N I T Y
Base Unit
Feature Living and Lounge Base Unit (330/450/468 Deep) - Fitting Guide
Units Parts
2 x Camar Antitip
4x 15mm
12x 30mm
2x L-Brackets
5x
18x
8x Shelf
Wall Plate
screws
screws
Door Buffer
Cover Caps
Pegs
(RH & LH)
Tools Required
Drill
Tape Measure
Screwdriver
Clamp
Spirit Level
Page 1
Advertisement
Related Manuals for Wren Kitchens INFINITY
Summary of Contents for Wren Kitchens INFINITY

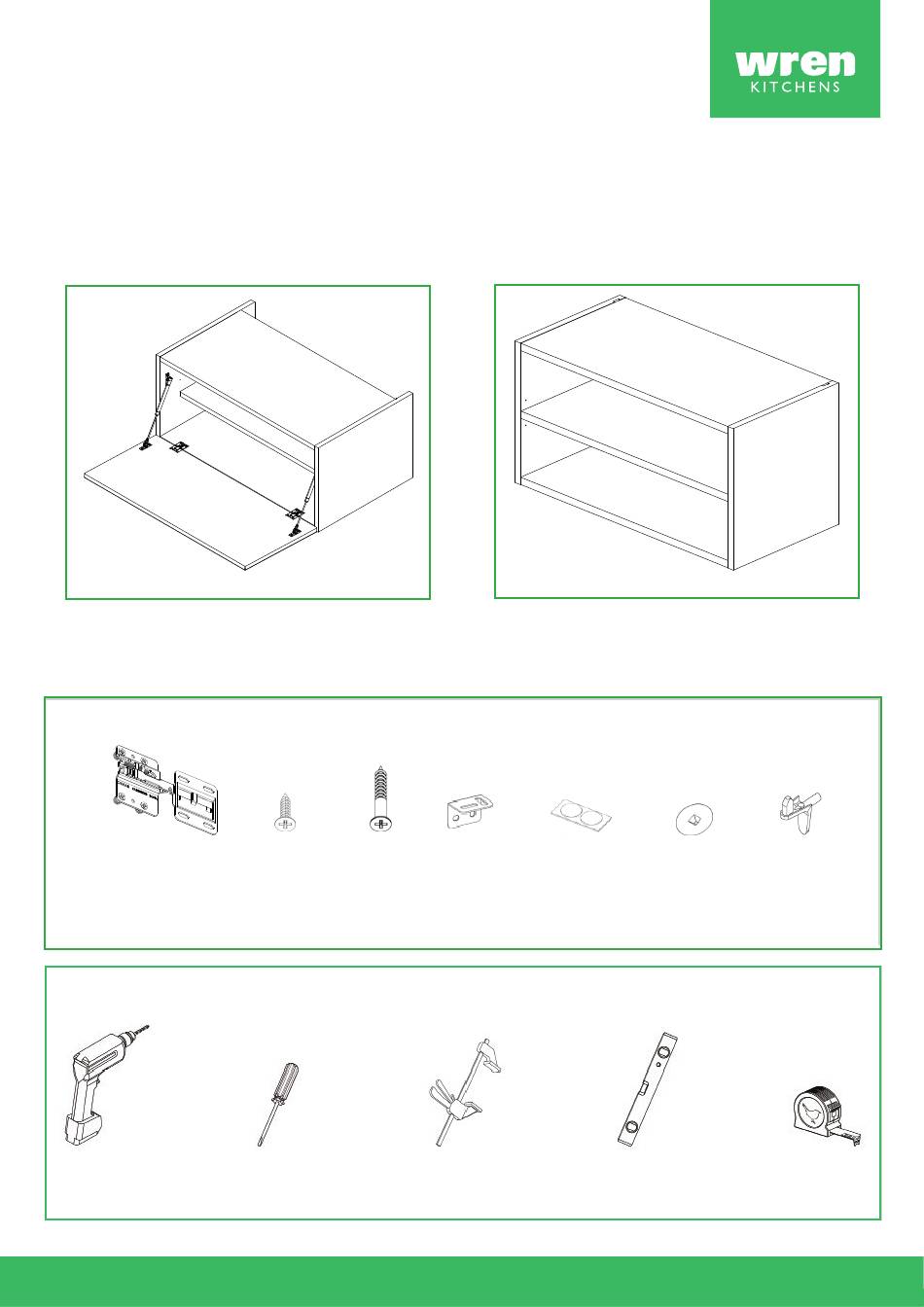

- Page 1 I N F I N I T Y Base Unit Feature Living and Lounge Base Unit (330/450/468 Deep) - Fitting Guide Units Parts 2 x Camar Antitip 4x 15mm 12x 30mm 2x L-Brackets 8x Shelf Wall Plate screws screws Door Buffer Cover Caps Pegs (RH &...
- Page 2 Remember to take care when unpacking. Please keep your workspace clean, clear and tidy when working. This will help keep all items safe from any damages. Any un-needed cardboard or plastic should be flattened down and placed in the bin. A minimum of two people will be needed to lift the unit.
- Page 3 Installing the wall hanging bracket Place the unit on its side for better access to inserting and securing the hanging bracket. Please note that the brackets are not identical, ensure that the correct bracket is placed on it’s appropriate side of the unit. Insert the hanging bracket into the pre-drilled holes and secure using the screws provided with the bracket.
- Page 4 Lifting the unit into place Lift the unit against the wall slightly higher than its finished height. Insert the bracket into the wall hanging brackets to hook the unit and lower the unit down, as illustrated. Before releasing the unit, gently tug it to ensure it is securely supported by the hanging brackets.
- Page 5 Securing to adjacent units Clamp together the two units, checking the front edges are level and flush. Using the screws provided, 1x30mm screw should be fixed into each corner of the carcase side. The screws can be concealed by placing them behind the shelf or behind the hinge plates, The cover caps can be uused to hide any visible screw heads...
- Page 6 Adding the door buffers Position the door buffer at the top and bottom corners of the carcase, as illustrated in the image. Adjusting the hinges and installing the cover caps To adjust the hinges, use a screwdriver as required at points 1 and 2. Point 1 –...
