Wren Kitchens Infinity Wall Cabinet Fittings Manual

L-shape folding door corner cabinet door, solid top

Advertisement

Quick Links

Wall Cabinet

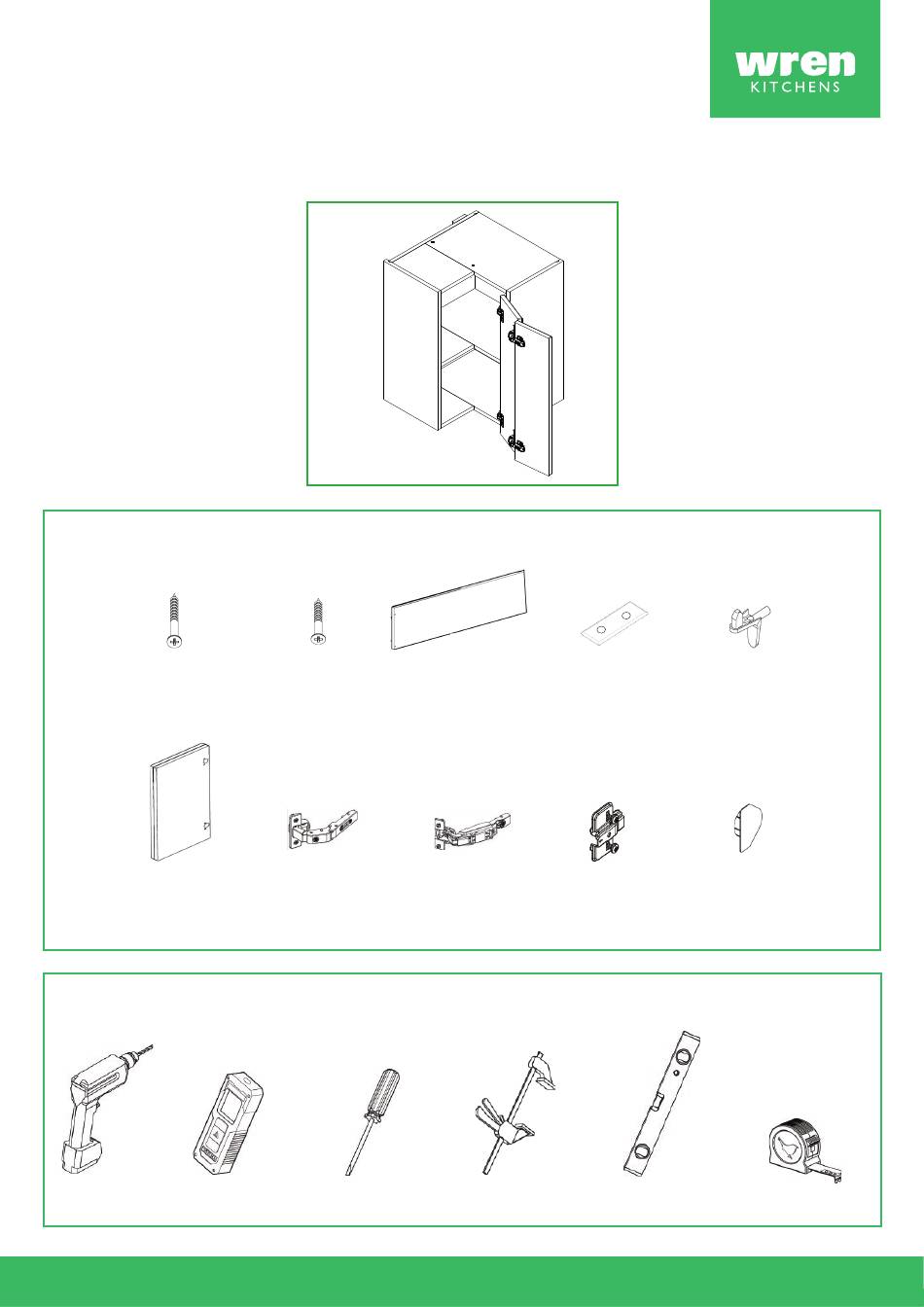

L-Shape Folding Door Corner Cabinet (Door, Solid Top) - Fitting Guide
Cabinet Parts
4x
1 1/4" screws
2x
Frontals
(Packed Separately)
Tools Required
Drill
Stud Finder
8x
5/8" screws
Shelves
Folding Door
170 Hinges
Hinge
Screwdriver
2x
2x
Door Buffers
Hinge
Plates
Clamp
Spirit Level
8x
Shelf Supports
Hinge cover
caps
Tape Measure
Page 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Infinity Wall Cabinet and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Wren Kitchens Infinity Wall Cabinet

  • Page 1 Wall Cabinet L-Shape Folding Door Corner Cabinet (Door, Solid Top) - Fitting Guide Cabinet Parts 1 1/4” screws 5/8” screws Shelves Door Buffers Shelf Supports Folding Door 170 Hinges Hinge Hinge cover Frontals Hinge Plates caps (Packed Separately) Tools Required Drill Stud Finder Screwdriver...
  • Page 2 Remember to take care when unpacking. Please keep your workspace clean, clear, and tidy when working. This will help keep all items safe from damage. Any waste cardboard or plastic should be flattened down and placed in the trash can. A minimum of two people will be needed to lift the cabinet.
  • Page 3 Screws and fixings for attaching the cabinet to the wall are not provided, as these vary depending on the wall material and construction. Check that the appropriate fixings for the wall construction are used.  Checking the cabinet is level Before installing the cabinet, hold the cabinet against the wall and check that it is level in multiple places using a spirit level. ...
  • Page 4 Now, lift the large shelf into position onto the shelf pegs inside the cabinet, ensuring the fixing plates are at the bottom. Make sure the shelf touches the back panel. Next, rest the small shelf onto the shelf pegs and over the fixing plates. Lastly, join each of the fixing plates with 2x 5/8”...
  • Page 5 Attaching the hinge plates Attach the hinge mounting plates to both of the side panels as shown, using the screws that are already positioned within the hinge plates. Fixing the hinges to the frontals Position the frontal with 4x cup holes on a protected work surface with the holes facing Insert the folding door hinges and 170˚...
  • Page 6 Attaching the frontal Secure the frontal with the 170˚ hinges to the L-corner cabinet, the frontal should be attached to the cabinet by clipping the hinges onto the hinge plates. Secure the second frontal by clipping the folding door hinges to the hinge plate on the frontal.
  • Page 7 Adding the door buffers Position 2x door buffer at the top and bottom corners of the carcase, as illustrated in the image. Adjusting the 170˚ hinge To adjust the 170˚ hinges, use a screwdriver as required at points 1 and 2. Point 1 –...
  • Page 8 Cleaning the cabinet Finally, the cabinet should be thoroughly cleaned to remove any debris that may have accumulated during the installation. Page 8...
