L I N E A / M I L A N O
Base Unit
700-1000 Venting Hob Base (Drawer, Non-Open Drawer, Open Top, 5 Legs) -
Fitting Guide
2 drawers including non-opening
drawer
Unit Parts
32x
15mm Screws
30mm Screws
Space Plugs
Tools Required
Drill
Jigsaw
6x
24x
Cover Caps
2x
5x
Door Buffers
Mallet
Screwdriver
3 drawers including non-opening
drawer
5x
5x
Legs
Leg Brackets
2x
Drawer
L-Brackets
Cover Caps
Clamp
Spirit Level
2x
Plinth Clips
Tape Measure
Page 1
Advertisement
Related Manuals for Wren Kitchens LINEA Base Unit
Summary of Contents for Wren Kitchens LINEA Base Unit

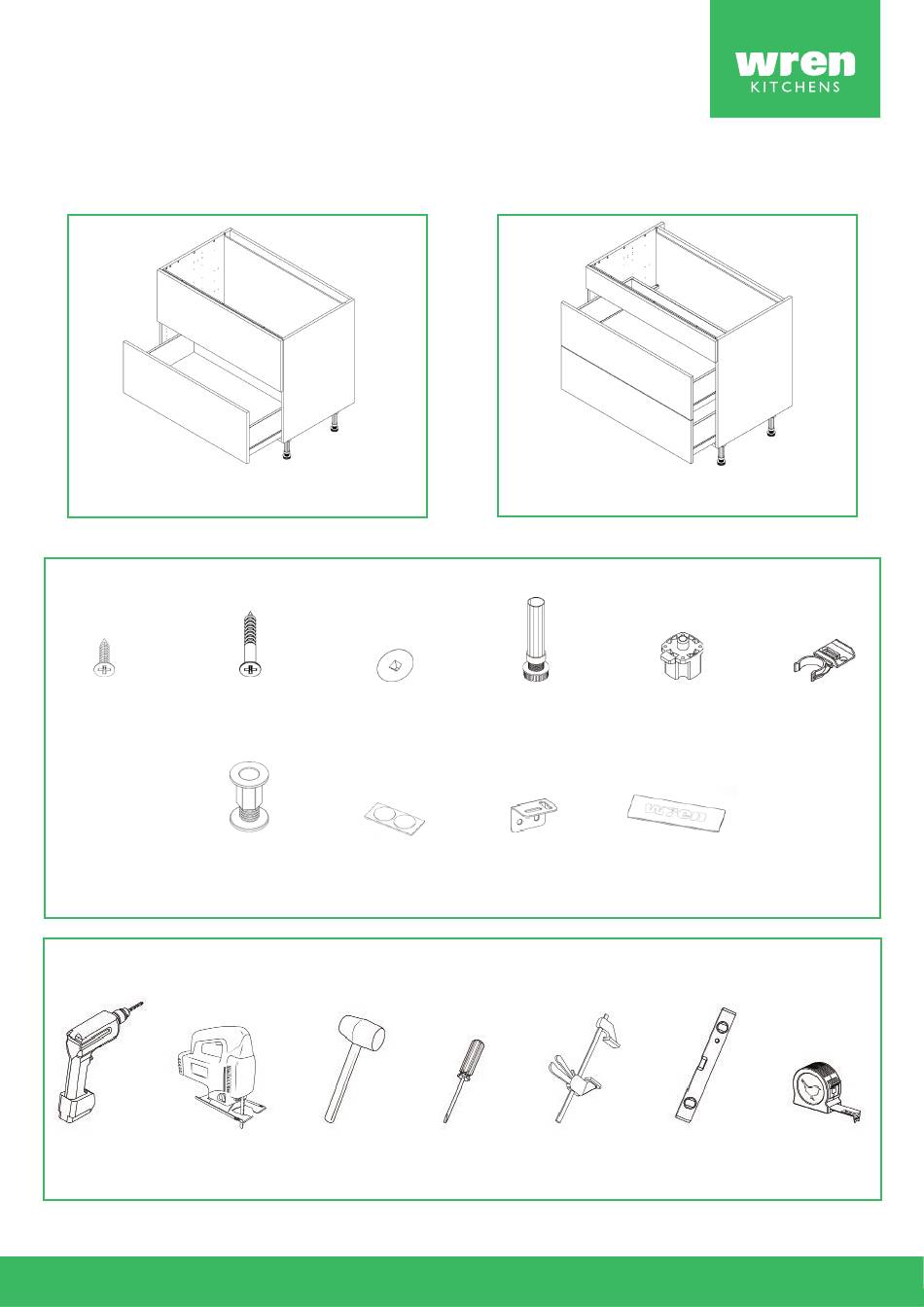

- Page 1 L I N E A / M I L A N O Base Unit 700-1000 Venting Hob Base (Drawer, Non-Open Drawer, Open Top, 5 Legs) - Fitting Guide 2 drawers including non-opening 3 drawers including non-opening drawer drawer Unit Parts 15mm Screws 30mm Screws Cover Caps...
- Page 2 Remember to take care when unpacking. Please keep your workspace clean, clear and tidy when working. This will help keep all items safe from any damage. Any waste cardboard or plastic should be flattened down and placed in the bin. A minimum of two people will be needed to lift the unit.
- Page 3 Cutting for the ducting method 1 Drilling the ducting cutout Drill into the corners of the ducting template, ensuring to stay within the marking. Cutting the ducting cutout Starting in the drilled corner, use a jigsaw to carefully cut along the marking. Cutting for the ducting method 2 Removing the back staples Using a flat-headed screwdriver, carefully...
- Page 4 Cutting the groove Use a Stanley knife to make a small square cut at the top of the groove on the back of the unit. This is to allow for the back panel to slide out. Removing the back panel Slide the back panel up and out of the unit and place the panel on a supported surface.
- Page 5 Cutting the ducting cutout Starting in the drilled corner, use a jigsaw to carefully cut along the marking. Sliding the back panel into place After drilling the holes for the ducting, slide the back panel into the grooves at the rear of the unit.
- Page 6 Fixing the leg bases Secure each of the leg brackets into place with 4x15mm screws per bracket. Inserting the legs Push each leg firmly down into the leg bracket. Adjusting each leg to 165mm. Adjust the legs to the correct height by turning clockwise or anti-clockwise.
- Page 7 Notching out the end panels (when required) In order to allow for any horizontal pipework running behind the unit, some units will require the back of the unit’s side to be notched out. Create a notch for the horizontal pipes at the back of the end panels using a jigsaw.
- Page 8 Drilling the unit and wall Drill 2 holes through both the rear top rail and the wall at the marked locations. The size of the holes will be determined by the size of wall fixing required. For guidance on the appropriate wall fixing for each wall type, please consult the “Room Preparation Guide.”...
- Page 9 Inserting the drawers Slide the drawer onto the runners. Make sure the runner mechanism and the drawer side grooves line up. Push the drawer back into the unit. After it has been positioned on the runners, you should hear a click. Adding the drawer buffers Add 1x door buffer to each side of each drawer along the unit edge, as shown in the...
- Page 10 Adjusting the frontal (Linea) Adjust frontal to suit, as shown in the image. Point 1 - Will adjust the frontal left and right. Point 2a - Will lock/unlock point 2b. Point 2b - Will adjust the frontal up and down. Point 3 - Will adjust the frontal releasing fixing clip.
- Page 11 Adjusting the frontal height (Milano) To adjust the height of the frontal, use a screwdriver as required at points 1 and 2. Step 1 - Loosen both of the screws at point 1. Step 2 - Turn the screw at point 2 to adjust the frontal’s height.
