FRONTALS
INFINITY PLUS
INFINITY PLUS
Attachment
Guide
Standard Drawer
Deep Drawer
Glass Side
For Internal Use:50-WKIN00143_INFINITY+_DRAWER_ATTACHMENT_GUIDE_Rev3

Advertisement

loading
Need help?

Need help?

Do you have a question about the FRONTALS INFINITY PLUS and is the answer not in the manual?

Questions and answers

Summary of Contents for Wren Kitchens FRONTALS INFINITY PLUS

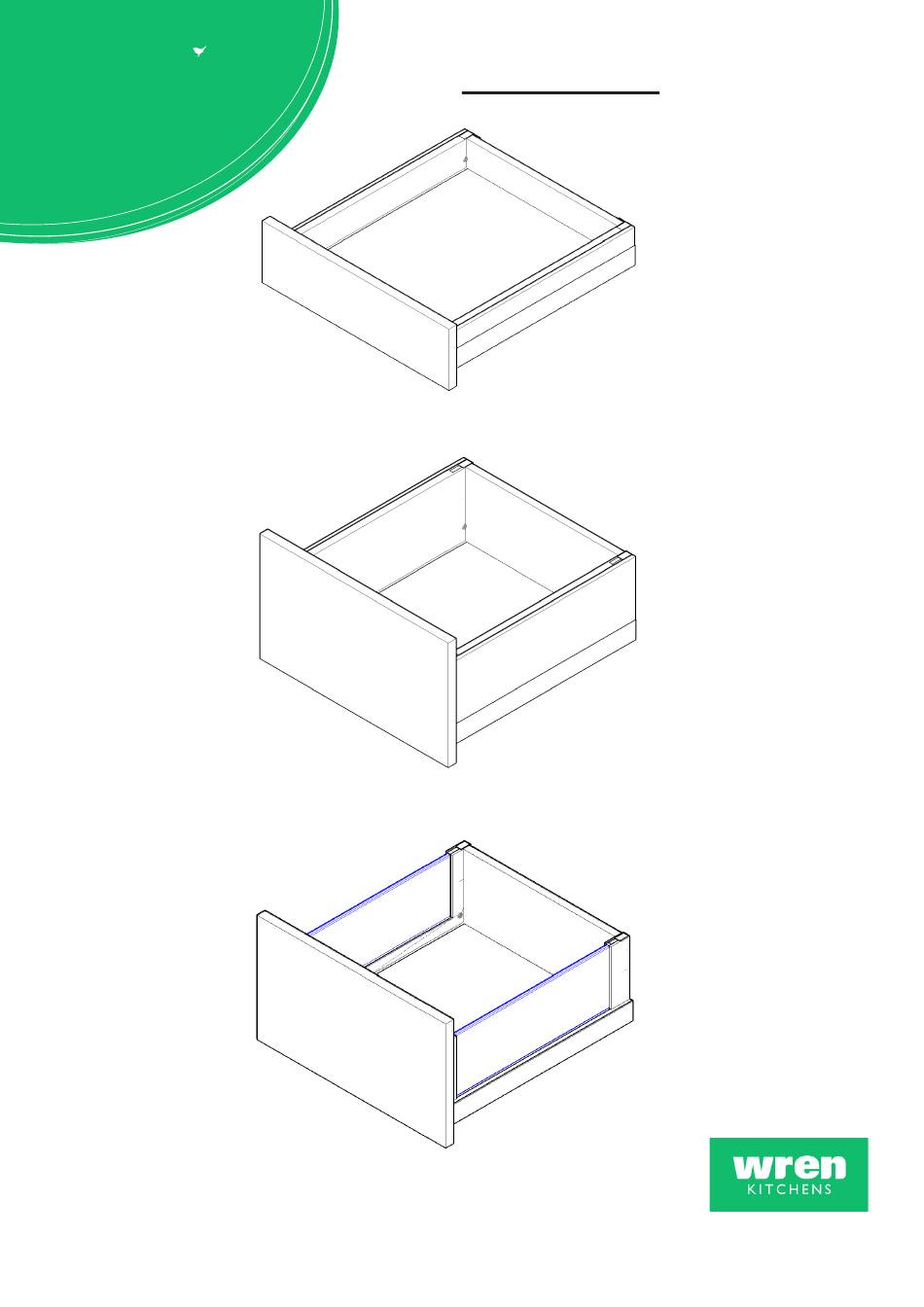

  • Page 1 FRONTALS INFINITY PLUS INFINITY PLUS Attachment Guide Standard Drawer Deep Drawer Glass Side For Internal Use:50-WKIN00143_INFINITY+_DRAWER_ATTACHMENT_GUIDE_Rev3...
  • Page 2: Standard Drawer

    FRONTALS STANDARD DRAWER INFINITY PLUS STANDARD DRAWER Attachment Guide Frontal Fixings Step 1. Attach the frontal fixings to the draw front using 3 x 5/8 screws (B) per bracket using ” the spiked positions. 4 1/2“ 4 1/2“ Standard Drawer 2 7/8“...
  • Page 3 FRONTALS DEEP DRAWER INFINITY PLUS Attachment Guide Frontal Fixings Step 1. Attach the frontal fixings to the draw front using 3 x 5/8 ” screws (B) per bottom bracket and 2 x 5/8 screws (B) per top ” bracket using the spiked positions. 7 15/16“...
  • Page 4 FRONTALS DEEP DRAWER INFINITY PLUS Attachment Guide Frontal Fixings Step 1. Attach the frontal fixings to the draw front using 3 x 5/8 screws ” (B) per bottom bracket and 2 x 5/8 screws (B) per top bracket ” using the spiked positions. 7 15/16“...
  • Page 5: Glass Replacement

    FRONTALS GLASS REPLACEMENT INFINITY PLUS Attachment Guide GLASS OUT Step 1. Fully press the rear fixing clip in. Step 2. Insert the glass into the rear slot of the side panel and rotate the glass parallel to the side of the drawer. Step 3.
