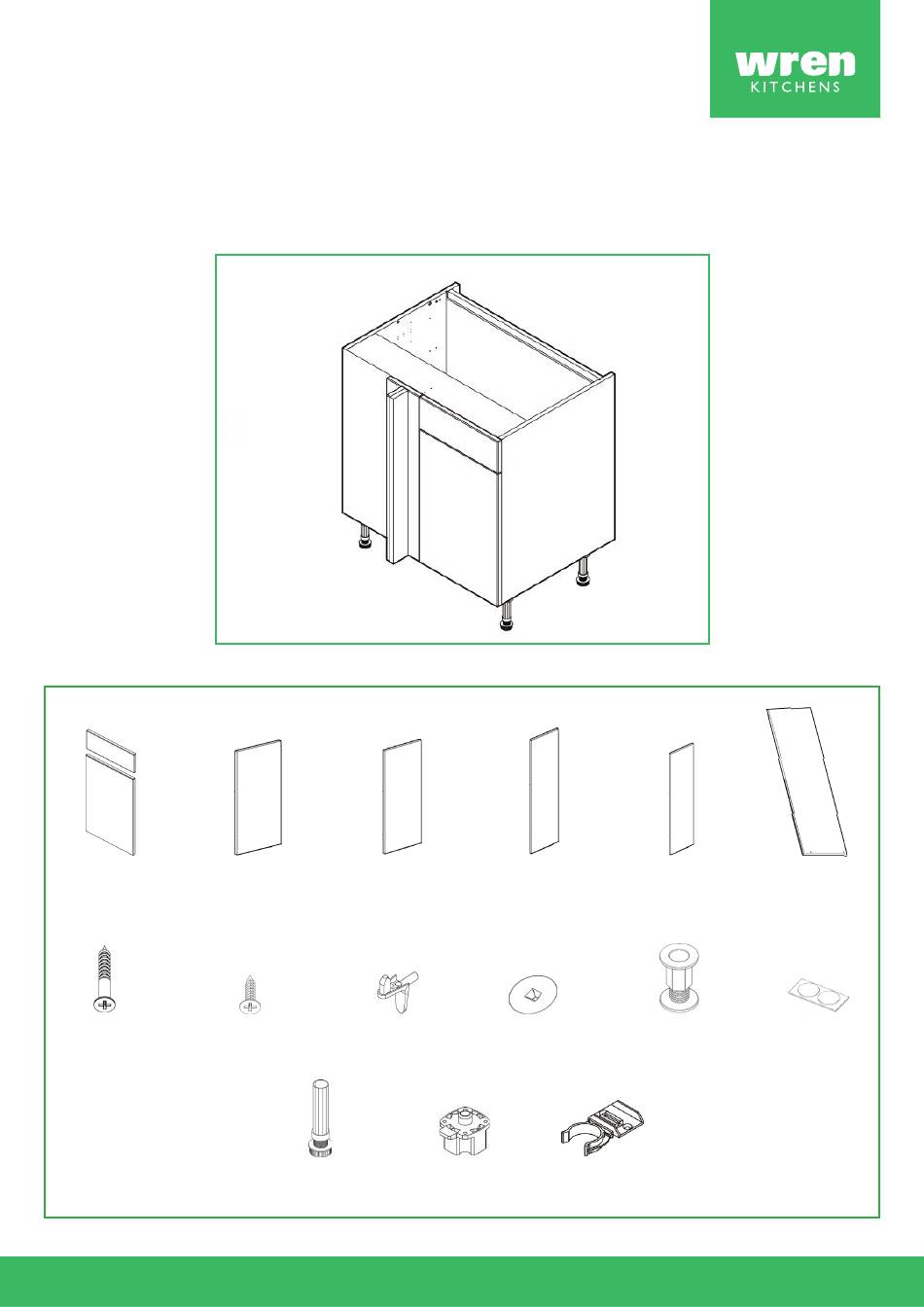

I N F I N I T Y P L U S
Base Unit
800 - 1000 Sink Base (Door, Non-Open Drawer, Open Top, 5 Legs) -
Fitting Guide
Unit Parts
2x
Frontals
Corner post
16x 30mm
30 x 15mm
Screws
1x
1x
Blanking Panel
5x
Screws
Shelf Pegs
5x
Legs
1x
Packer Y1
16x
Cover Caps
5x
Leg Brackets
Plinth Clips
1x
Packer Z1
2x
Space Plugs
2x
1x
Shelf
5x
Door Buffers
Page 1
