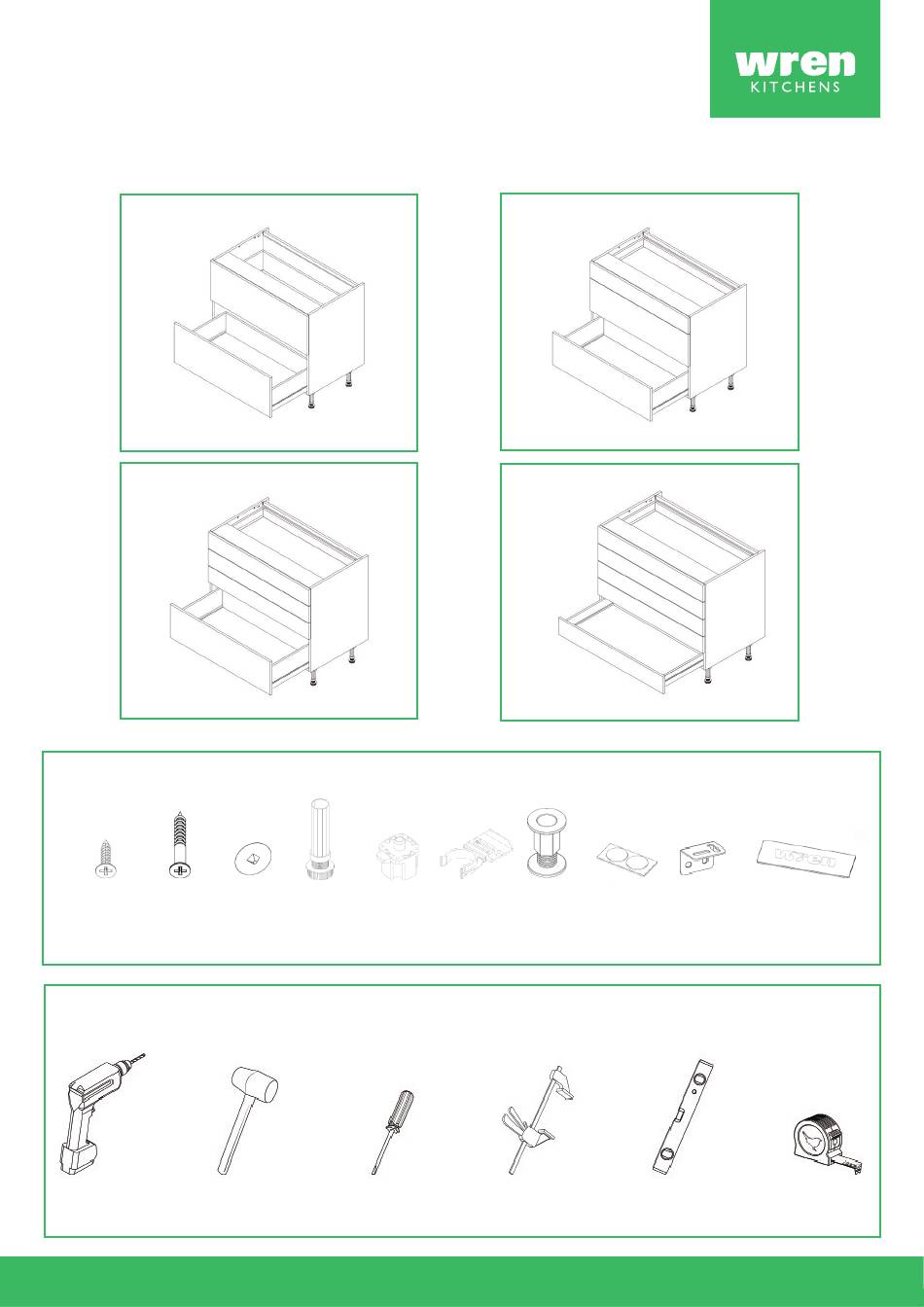

I N F I N I T Y P L U S
Base Unit
700 - 1000, Base (Drawer, Solid Top, 5 Legs)- Fitting Guide
2 drawers
4 drawers
Units Parts
6x 30mm
32x 15mm
screws
screws
Tools Required
Mallet
Drill
5x
5x
18x
Cover Caps
Legs
Leg Brackets
Screwdriver
3 drawers
5 drawers
2x
5x
2x
Door Buffer
Plinth Clips
Space Plug
Clamp
2x L-Brackets
Drawer Covers
Cap
(2 Per Draw)
Tape Measure
Spirit Level
Page 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the INFINITY PLUS and is the answer not in the manual?

Questions and answers

Related Manuals for Wren Kitchens INFINITY PLUS

Summary of Contents for Wren Kitchens INFINITY PLUS

  • Page 1 I N F I N I T Y P L U S Base Unit 700 - 1000, Base (Drawer, Solid Top, 5 Legs)- Fitting Guide 2 drawers 3 drawers 4 drawers 5 drawers Units Parts 6x 30mm 2x L-Brackets Drawer Covers 32x 15mm Door Buffer Plinth Clips...
  • Page 2 Remember to take care when unpacking. Please keep your workspace clean, clear and tidy when working. This will help keep all items safe from any damages. Any un-needed cardboard or plastic should be flattened down and placed in the bin. A minimum of two people will be needed to lift the unit.
  • Page 3 Inserting the legs Push each leg firmly down into the leg bracket. Adjusting each leg to 155mm. Adjust the legs to the correct height by turning clockwise or anti-clockwise. Notching out the end panels (when required) In order to allow for any horizontal pipework running behind the unit, some units will require the back of unit’s side to be notched out.
  • Page 4 Drilling the pilot holes Drill a pilot hole through the back panel making sure to lightly mark the wall to indicate where the wall fixing should be placed. The hole should be located as per the diagram, 1/3 in from each side and close to the top of the unit.
  • Page 5 Inserting the drawers Slide the drawer onto the runners, make sure the runner mechanism and the drawer sides’ groove line up. Push the drawer back into the unit after it has been positioned on the runners; you should hear a click. Adding the drawer buffers Add 1x door buffer to each side of each drawer along the carcase edge, as show in...
  • Page 6 Adjusting the frontal height Step 1 - Loosen the locking screw. Step 2 - Turn the screw shown to adjust the drawer frontal up & down. Re-Tighten locking the screw when in position. Repeat on both sides of the drawer box. Cleaning the unit Finally, the unit should be thoroughly cleaned to remove any debris that may have...
