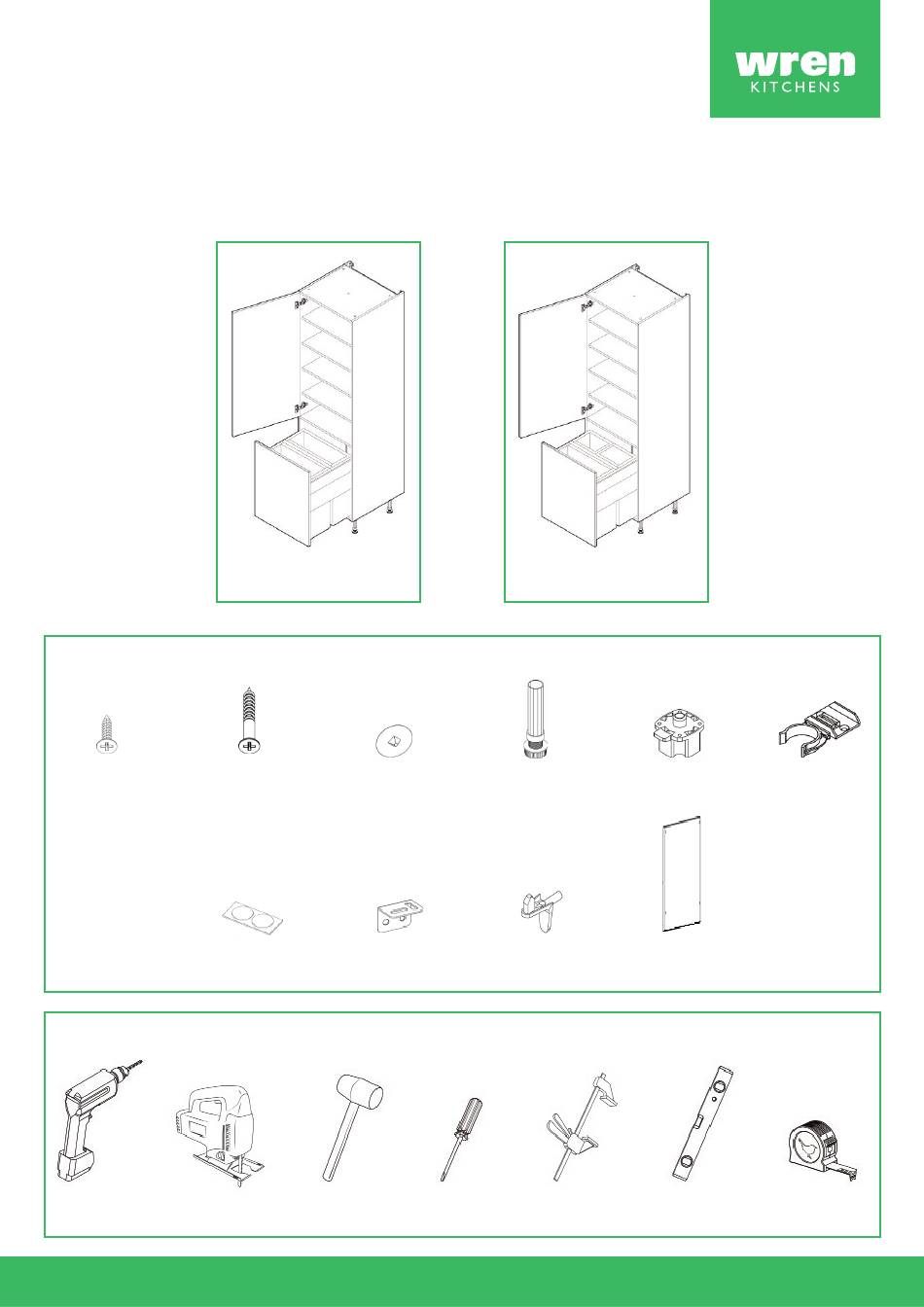

I N F I N I T Y / I N F I N I T Y P L U S
Tower Unit
600 Tower Including 2 Door + 2 or 3 Bin (Door, Solid Top, 5 Legs) - Fitting
Guide
Unit Parts
30x
15mm Screws
30mm Screws
Door Buffers
Tools Required
Drill
Jigsaw
2 Bin
6x
32x
Cover Caps
6x
2x
L-Brackets
Mallet
Screwdriver
3 Bin
5x
5x
Legs
Leg Brackets
16x
4x
Shelf Pegs
Shelves
Clamp
Spirit Level
2x
Plinth Clips
Tape Measure
Page 1
Advertisement
Related Manuals for Wren Kitchens INFINITY
Summary of Contents for Wren Kitchens INFINITY
- Page 1 I N F I N I T Y / I N F I N I T Y P L U S Tower Unit 600 Tower Including 2 Door + 2 or 3 Bin (Door, Solid Top, 5 Legs) - Fitting Guide 3 Bin 2 Bin...
- Page 2 Remember to take care when unpacking. Please keep your workspace clean, clear and tidy when working. This will help keep all items safe from any damage. Any un-needed cardboard or plastic should be flattened down and placed in the bin. A minimum of two people will be needed to lift the unit.
- Page 3 Positioning the leg brackets Locate the leg brackets and position, as shown in the diagram. Ensure the leg brackets are rotated so the flange covers the outer edge, as this provides support for the edge of the unit. Fixing the leg bases Secure each of the leg brackets into place with 4x15mm screws per bracket.
- Page 4 Securing the L-bracket Secure each of the L-brackets to the upper rear of the unit using 2x15mm screws on each side. Notching out the side panels (when required) In order to allow for any horizontal pipework running behind the unit, some units will require the back of unit’s side to be notched out.
- Page 5 No screws or wall plugs are provided for the wall attachment due to variations in wall materials, thickness, and construction. Before drilling into the wall you MUST check for any hidden services or pipework within the walls. Attaching the tower unit to the wall Fix the unit to the wall through the L-brackets as shown in the image (fixings are not provided).
- Page 6 Attaching the frontal The frontal should be re-attached to the unit by clipping the hinges onto the hinge plates. The bar of the hinge needs to be positioned into the hooks on the hinge plate. Then the rear of the hinge pushed to the hinge plate until it clicks.
- Page 7 Placing the bins into position Place the bins back into position within the unit. Cleaning the unit Finally, the unit should be thoroughly cleaned to remove any debris that may have accumulated during the installation. Store the plinth clips and the remaining 15mm screws. These will be used later when attaching the plinth.
