Anybus Wireless Bolt Serial Radio Antenna Patterns

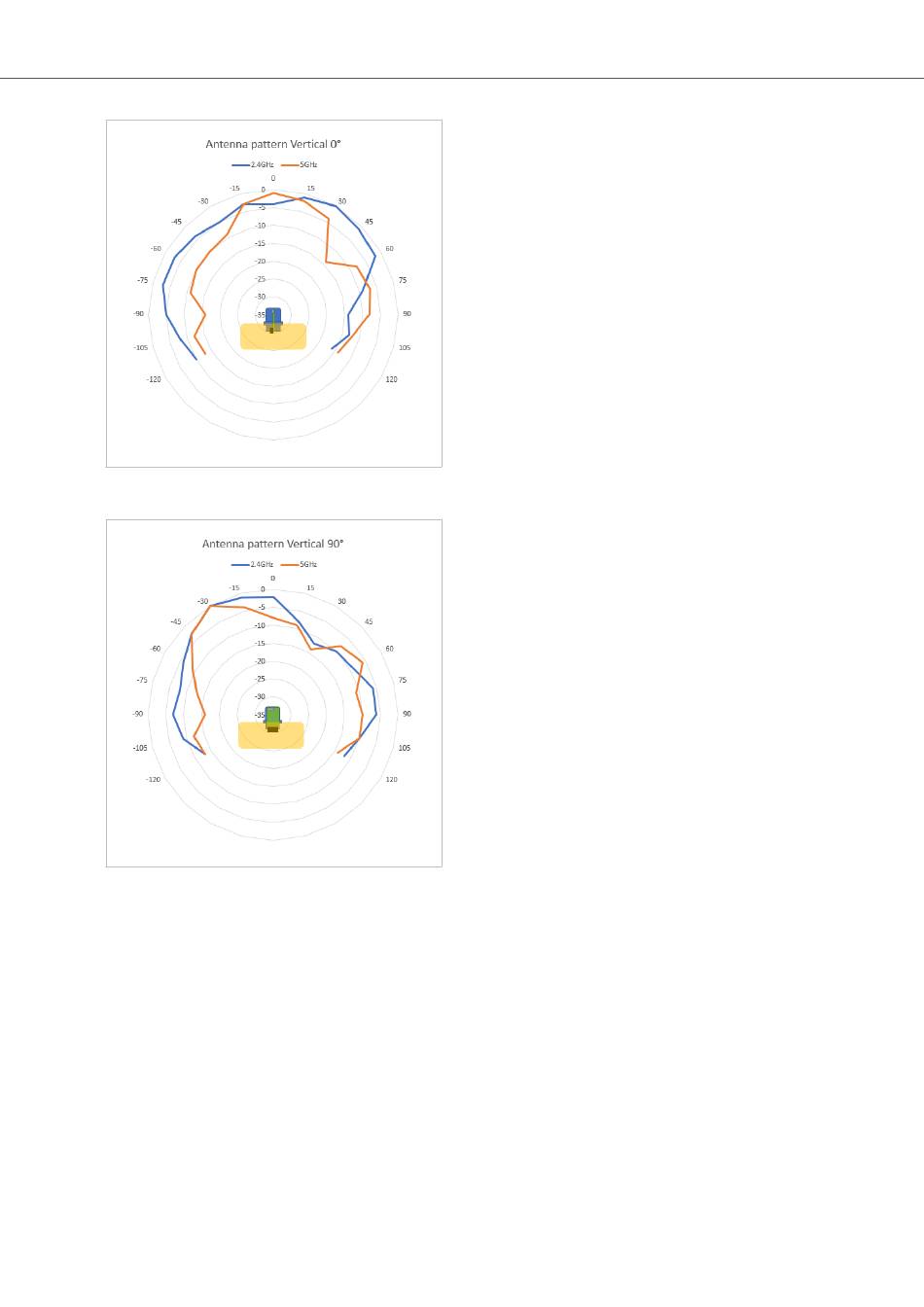

Figure 44. Front View – Vertical 0°
Figure 45. Side View – Vertical 90°
Throughput Diagram
This diagram shows how data throughput decreases when distance increases.
The huge difference between using a back shield to focus the radio energy, and not using a back shield. Using a
back shield can greatly increase radio coverage if used correctly.
The diagram covers both the Anybus Wireless Bolt and the Anybus Wireless Bridge when using Wi-Fi (WLAN) 2.4
GHz.
