Firmware update progress

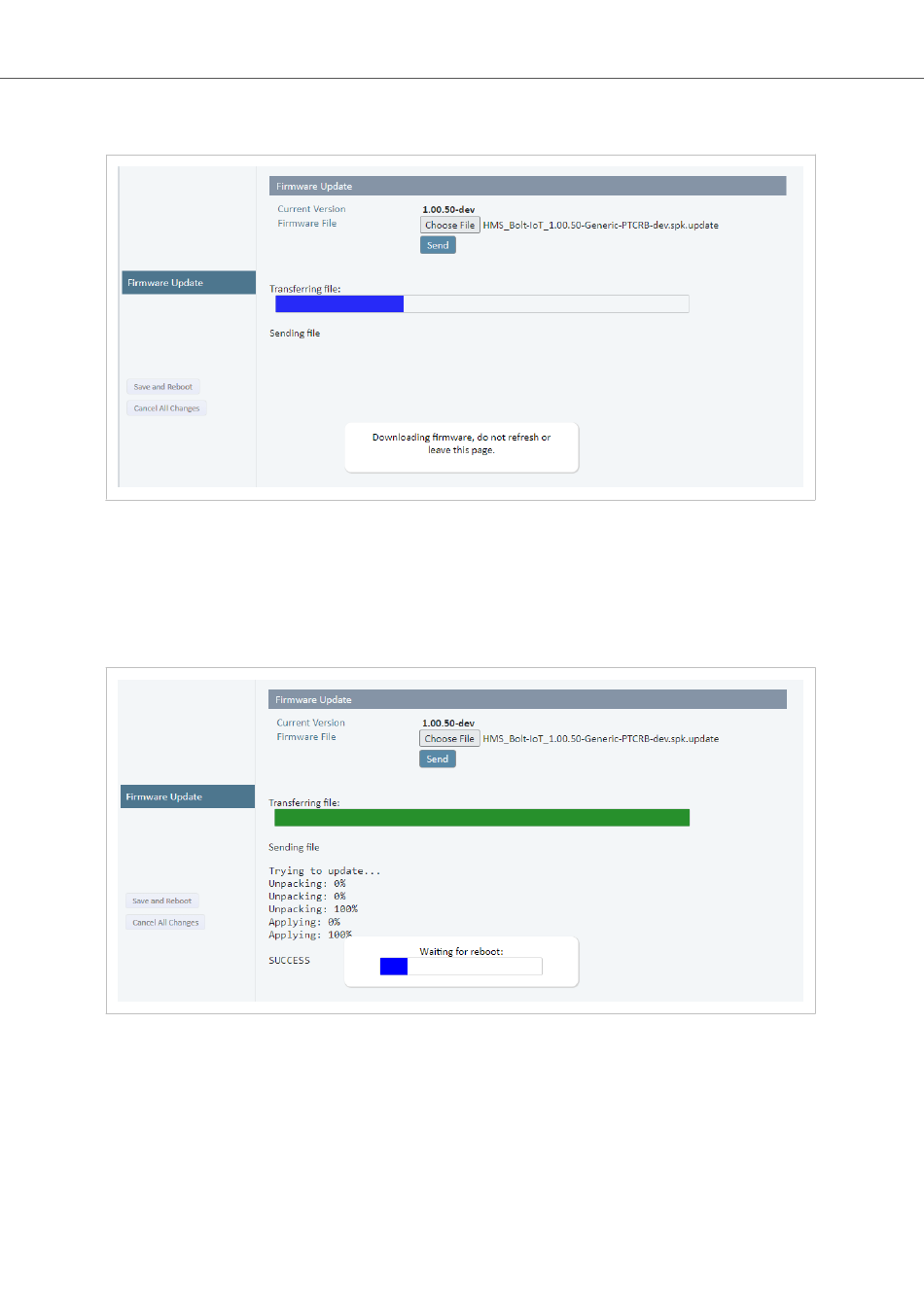

Figure 32. Firmware Update, Transferring file
• The progress bar, Transferring file, indicates the progress of the file transfer.
Status messages show the progress of the firmware update stages.
• When the file transfer is finished, the progress bar turns green.
Reboot
Figure 33. Firmware Update, Waiting for reboot
• When the firmware update is finished, Bolt Serial automatically reboots for the updates to take effect.
The progress bar, Waiting for reboot, indicates the progress.
• When the reboot is complete, the web browser automatically redirects to the System Overview page.
