Connector
4.2. Connector
The 18-pin connector is common for several models of the Anybus Wireless Bolt. Some pins may have a different
function depending on model. Unused pins should not be connected.

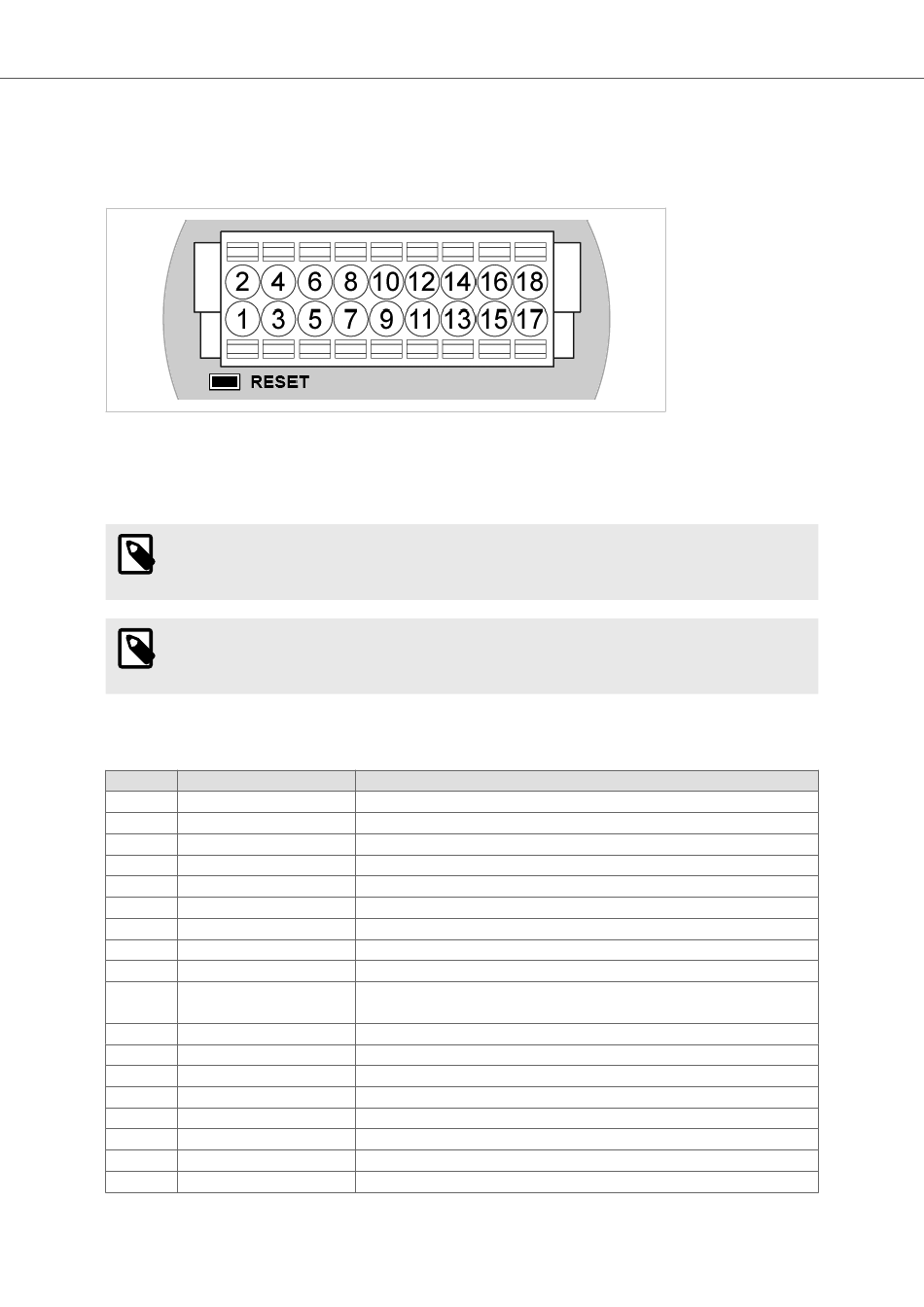

Figure 2. 18-Pin connector
The location of the RESET button can be used as a reference for the pin numbering when the connector is
attached to the Bolt Serial. Pin 1 will be the pin closest to the RESET button.
NOTE
The Ethernet interface is intended for configuration purposes only. Bolt Serial is not designed for
permanent Ethernet communication.
NOTE
A and B marking differs between different devices, in this product A is TX-/RX- or D- and B is TX+/RX+
or D+.
For information about the correct connection type and termination, refer to
(page 54).
Pin Name
1 VIN
2 GND
3 DI
4 DI_GND
5 ETN_RD+
6 ETN_RD-
7 ETN_TD-
8 ETN_TD+
9 RS485_B
10 FE/Shield
11 RS232_TXD
12 RS485_A/RS232_RXD
13 RS232_RTS
14 RS232_CTS
15 ISO_5V
16 RS232_GND/RS485_GND
17 CAN_L
18 CAN_H
SCM-1202-143 2.0
Description
Power + (9–30 V)
Power Ground
Digital input + (9–30 V)
Digital input ground
Ethernet receive + (white/orange)
Ethernet receive - (orange)
Ethernet transmit - (green)
Ethernet transmit + (white/green)
RS-485 B Line
Ethernet: Functional Earth
Serial and CAN: Functional Earth and Shield
RS-232 Transmit
RS-485 A Line / RS-232 Receive
RS-232 Request To Send (Not used for Wireless Bolt Serial.)
RS-232 Clear To Send (Not used for Wireless Bolt Serial.)
Isolated 5 V for serial interface
Isolated Ground for Serial interface
CAN Low (Not used for Wireless Bolt Serial.)
CAN High (Not used for Wireless Bolt Serial.)
®
Anybus Wireless Bolt Serial
RS232/RS485 Electrical Connection
